Decals

From 1994 Ford Bronco “Eddie Bauer”, documented by jowens1126.

18 photos

← Back to this vehicle

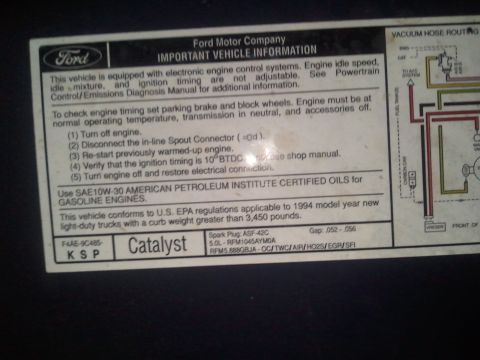

1994 Ford Bronco - Ford emissions information label including a color-coded vacuum hose routing diagram for a 1994 5.0L truck.

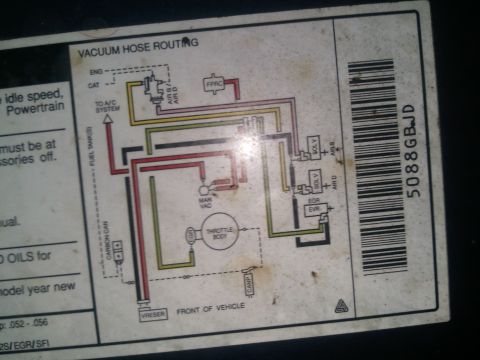

1994 Ford Bronco - Underhood vacuum hose routing diagram with color-coded lines to throttle body, EGR and FPRC components.

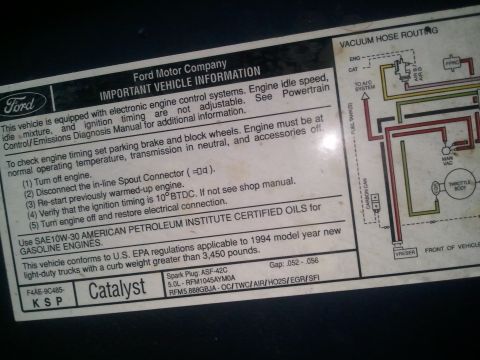

1994 Ford Bronco - Ford emissions information label with a color-coded vacuum hose routing diagram for a 5.0L engine.

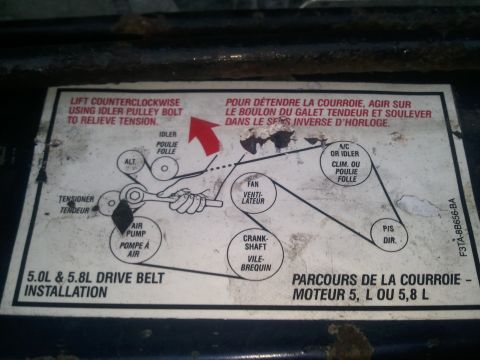

1994 Ford Bronco - Serpentine drive belt routing diagram for Ford 5.0L and 5.8L engines with idler-tensioner instructions.

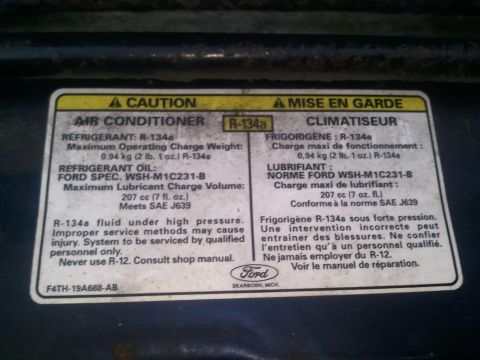

1994 Ford Bronco - Ford A/C system spec label listing R-134a refrigerant charge weight and lubricant specifications.

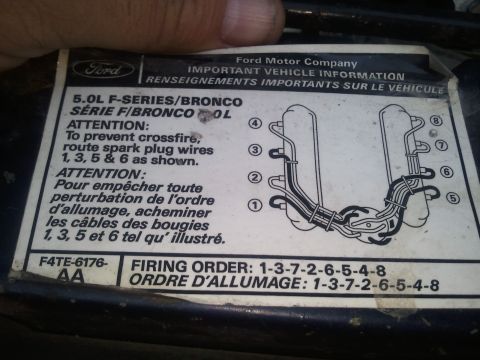

1994 Ford Bronco - Spark plug wire routing diagram and firing order (1-3-7-2-6-5-4-8) label for a Ford 5.0L V8.

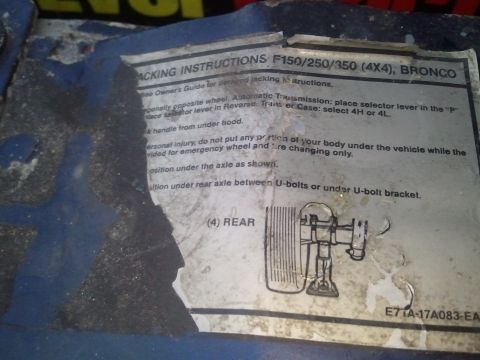

1994 Ford Bronco - Vehicle jacking instructions label with numbered safety steps and a rear-axle jack placement figure.

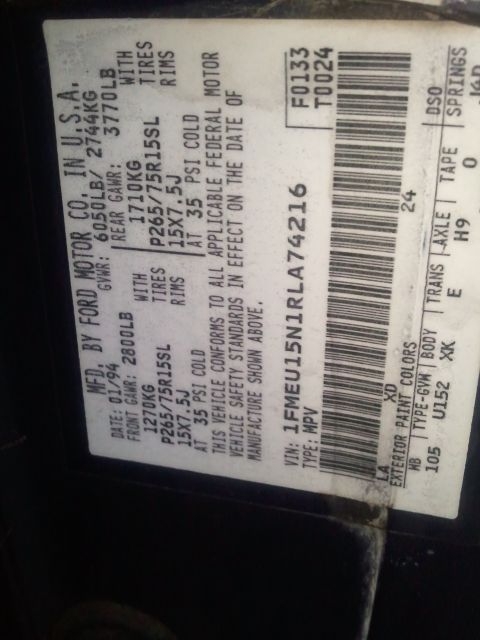

1994 Ford Bronco - Ford vehicle certification door plate showing VIN, GVWR/GAWR ratings, tire and rim sizes, and paint/trim codes.

1994 Ford Bronco - Close-up of an interior decal with the text HOGO visible.

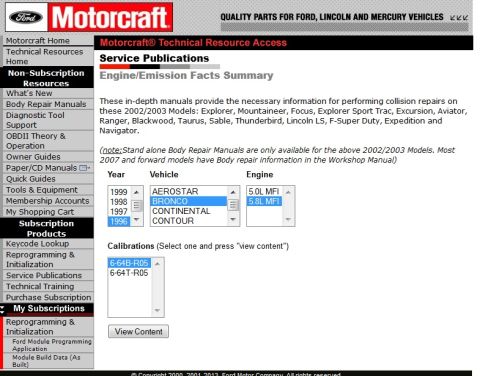

1994 Ford Bronco - Web page screenshot of Motorcraft Technical Resource Access showing engine/emission service publication selectors.

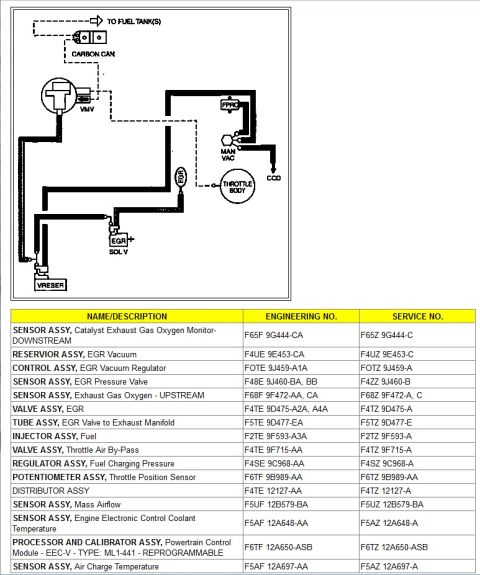

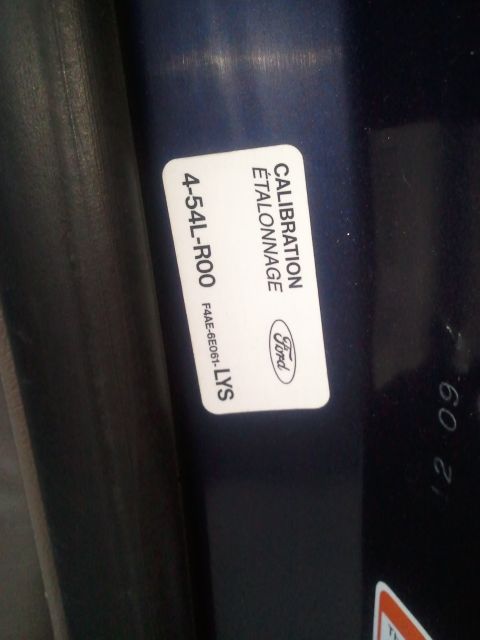

1994 Ford Bronco - Vacuum-routing schematic plus calibration parts list for a Ford EEC-IV ML1-441 reprogrammable PCM, listing EGR vacuum reservoir/regulator,…

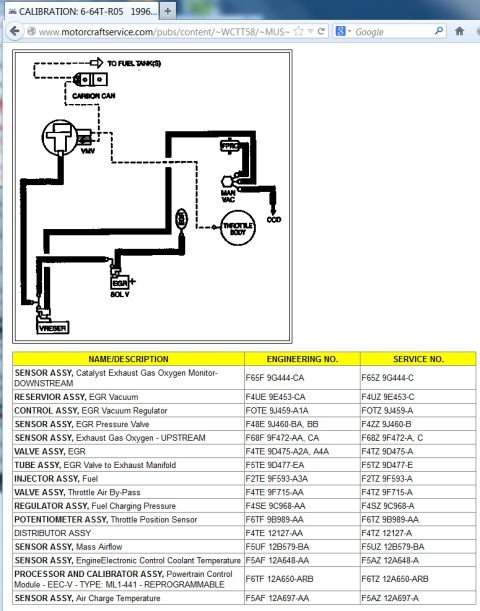

1994 Ford Bronco - Motorcraft Service calibration 6-64T-R05 (1996) vacuum-routing schematic and parts list: EGR vacuum reservoir/regulator, EGR pressure valve…

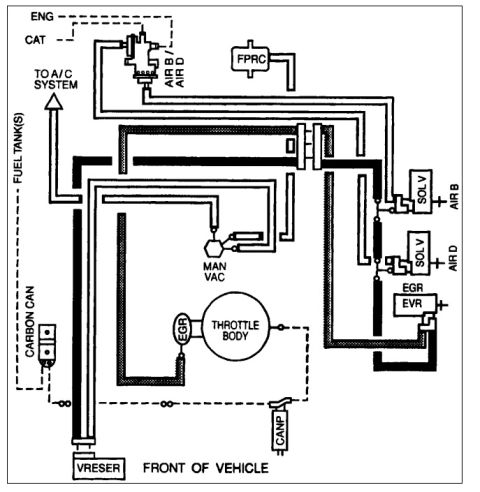

1994 Ford Bronco - Vacuum routing diagram showing hose connections among the throttle body, EGR, air solenoids, FPRC, carbon canister and fuel tanks.

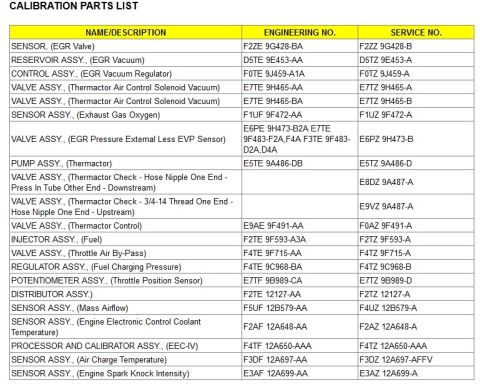

1994 Ford Bronco - Ford EEC-IV calibration parts list naming Thermactor air-bypass valves, EGR valve/vacuum reservoir/regulator, EVP sensor, Thermactor pump a…

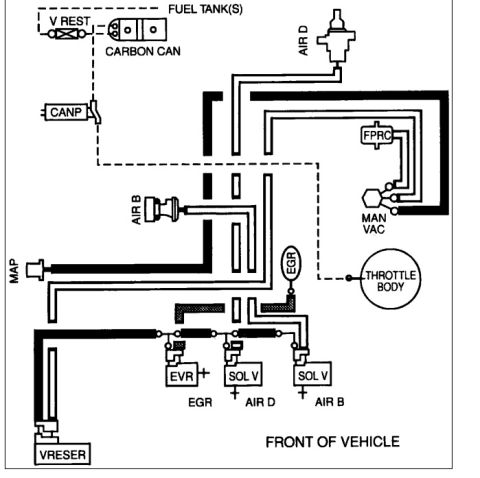

1994 Ford Bronco - Vacuum routing diagram showing hose connections among the MAP sensor, EGR, EVR, air solenoids, FPRC, carbon canister and throttle body.

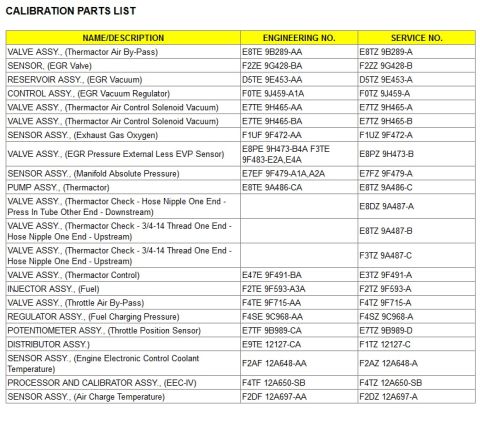

1994 Ford Bronco - Ford EEC-IV calibration parts list: Thermactor air-bypass valves, EGR valve/reservoir/regulator, manifold absolute pressure sensor, Thermac…

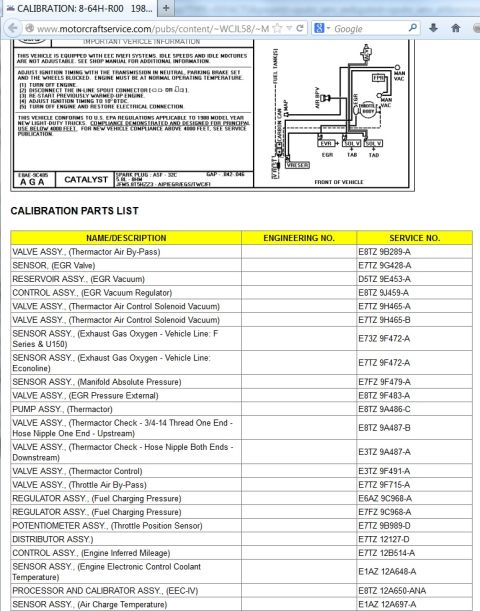

1994 Ford Bronco - Motorcraft calibration 8-64H-R00 emissions page: VECI underhood label, vacuum-routing diagram and EEC-IV parts list (Thermactor, EGR, MAP,…
