1996 Ford Bronco Calibration 6-64B-R05 Vacuum Diagram & EEC-V Parts List

Vacuum-routing schematic plus calibration parts list for a Ford EEC-IV ML1-441 reprogrammable PCM, listing EGR vacuum reservoir/regulator, EGR pressure valve, HEGO sensors and engineering/service part numbers.

AI caption · Photo 613 of 3001

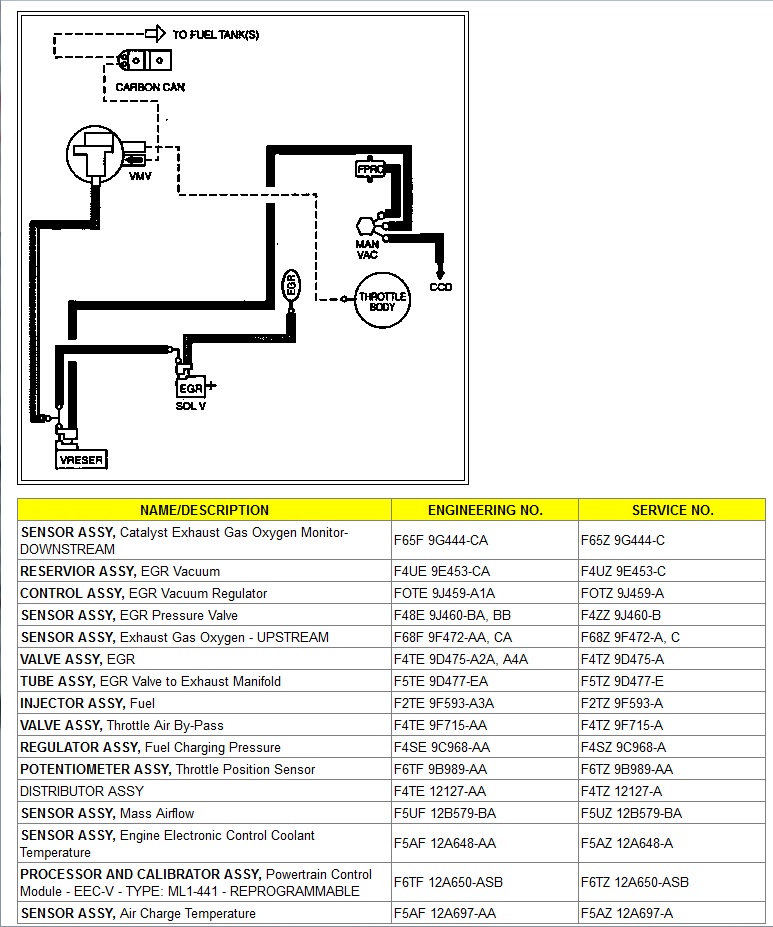

This document is a Ford emissions/vacuum routing schematic paired with a calibration parts list, uploaded as page '6-64B-R05' of a 1996 Bronco calibration set. The upper portion shows a vacuum hose routing diagram connecting the carbon canister (with a line to the fuel tank(s)), VMV (vapor management valve), FPRC (fuel pressure regulator control), manifold vacuum source, throttle body, EGR valve, EGR solenoid valve, vacuum reservoir (VRESER), and a CCD port. The lower portion is a three-column table listing emissions and engine-control components by name/description with their Ford engineering numbers and service part numbers. Components covered include upstream and downstream catalyst exhaust gas oxygen sensors, the EGR vacuum reservoir, EGR vacuum regulator control, EGR pressure valve sensor, EGR valve and EGR tube, fuel injector, throttle air bypass valve, fuel pressure regulator, throttle position sensor, distributor, mass airflow sensor, engine coolant temperature sensor, air charge temperature sensor, and the EEC-V reprogrammable powertrain control module (type ML1-441, engineering no. F6TF 12A650-ASB). A reader can use this page to identify correct Ford service part numbers for emissions calibration components and to verify factory vacuum line routing.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the service part number for the EEC-V powertrain control module on this calibration?
The Processor and Calibrator Assy (Powertrain Control Module, EEC-V, Type ML1-441, reprogrammable) has engineering number F6TF 12A650-ASB and service number F6TZ 12A650-ASB.
What are the part numbers for the upstream and downstream oxygen sensors?
The upstream Exhaust Gas Oxygen sensor is engineering no. F68F 9F472-AA/CA, service no. F68Z 9F472-A/C. The downstream Catalyst Exhaust Gas Oxygen Monitor sensor is F65F 9G444-CA, service F65Z 9G444-C.
What EGR components are listed in this calibration parts list?
It lists the EGR Vacuum Reservoir (F4UZ 9E453-C), EGR Vacuum Regulator Control (FOTZ 9J459-A), EGR Pressure Valve Sensor (F4ZZ 9J460-B), EGR Valve (F4TZ 9D475-A), and the EGR Valve to Exhaust Manifold Tube (F5TZ 9D477-E).
What components appear in the vacuum routing diagram?
The diagram shows the carbon canister with a line to the fuel tank(s), VMV, FPRC, manifold vacuum (MAN VAC), throttle body, EGR valve, EGR solenoid valve (EGR SOL V), a vacuum reservoir (VRESER), and a CCD connection.
What is the service number for the mass airflow sensor?
The Mass Airflow Sensor Assy is engineering no. F5UF 12B579-BA, service no. F5UZ 12B579-BA.
