I scored a whole pile of scrap metal, so I sat down with a CAD program and sketched out some ideas. ...

201 hits | 44.84 KB | Posted: 4/26/12

383 hits | 56.33 KB | Posted: 4/26/12
This is from the next day. Corner pieces are welded on, and diamond tread is attached to give me a s...

194 hits | 56.24 KB | Posted: 4/26/12
Someday a winch will go here

181 hits | 29.14 KB | Posted: 4/26/12
I blacked out the mirror, window trim, door handles, and headlight bezel

194 hits | 36.88 KB | Posted: 4/26/12

184 hits | 35.6 KB | Posted: 4/26/12
The roof rack is mounted and looking good.

208 hits | 41.41 KB | Posted: 4/26/12

237 hits | 40.08 KB | Posted: 4/26/12
Cargo lights. Ther are also tied into the back-up switch

190 hits | 32.64 KB | Posted: 4/26/12
Another shot of the roof rack. I like how it came out. I just wish some of the pieces I had to wor...

201 hits | 39.9 KB | Posted: 4/26/12
After a day of fun

185 hits | 56.04 KB | Posted: 4/26/12
Got the bikes loaded up for a trip into the hills

215 hits | 48.31 KB | Posted: 4/26/12
First version of the rear bumper racks

194 hits | 41.95 KB | Posted: 4/26/12
Both rear swing arms opened up wide.

211 hits | 41.14 KB | Posted: 4/26/12
Closeup. Some diamond tread for standing on. D-rings for recovery points, electrical hookup for a ...

213 hits | 32.7 KB | Posted: 4/26/12
My side steps / rock rails. Really help when I'm loading stuff into the roof rack

214 hits | 46.58 KB | Posted: 4/26/12
Closed up and ready to roll. I'm still not too thrilled about the cooler rack. It sticks out too f...

205 hits | 46.36 KB | Posted: 4/26/12
Mounting location for my hi-lift jack. It sits on a plate behind the spare and bolts to the tire ca...

189 hits | 47.74 KB | Posted: 4/26/12
The hinge is a glorified trailer wheel bearing from comp4x4.com. Opens smoothly and is very strong....

201 hits | 55.51 KB | Posted: 4/26/12
Version 1.5 of the cooler rack. A water jug sits on that plate, which is high enough to clear the h...

198 hits | 38.07 KB | Posted: 4/26/12
OK, this is a little better. I found an e-bay surplus store that was selling these locking straps f...

224 hits | 40.16 KB | Posted: 4/26/12

446 hits | 49.8 KB | Posted: 4/26/12
I picked up a Rough Country 12000 lb with sythentic line and cover from 4x4 Group Buy (http://www.4x...

266 hits | 53.64 KB | Posted: 4/26/12
Winch is protected from the elements. I'm going to revamp that grill guard so it's more rectangular ...

213 hits | 45.24 KB | Posted: 4/26/12

212 hits | 36.28 KB | Posted: 4/26/12

228 hits | 45.8 KB | Posted: 4/26/12

229 hits | 43.35 KB | Posted: 4/26/12
Ok, here we are with lights facing the right way

188 hits | 79.84 KB | Posted: 9/10/12

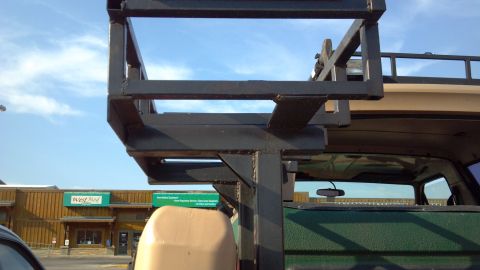

Version 3 of my cooler rack. It sits above the jerry cans. Removable, but even in place it doesn't...

299 hits | 111.22 KB | Posted: 9/10/12

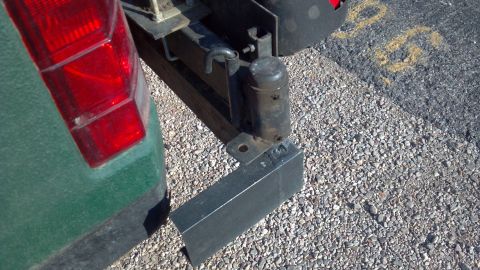

Close up of a hinge unit. Purchased from comp4x4.com, it supports the weight of the spare tire or j...

195 hits | 93.45 KB | Posted: 9/10/12

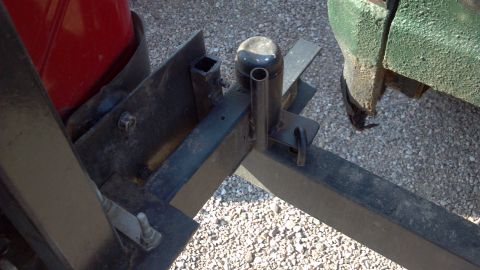

Locking pin for the hinge to hold the arm open.

187 hits | 97.28 KB | Posted: 9/10/12

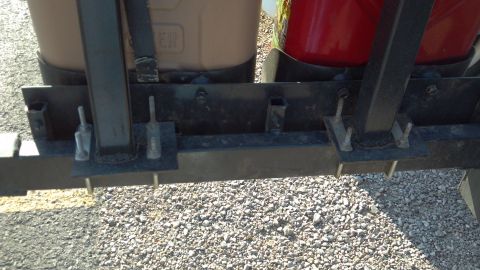

Mounts for the cooler rack. I undo these bolts, and the rack just lifts off.

169 hits | 90.9 KB | Posted: 9/10/12

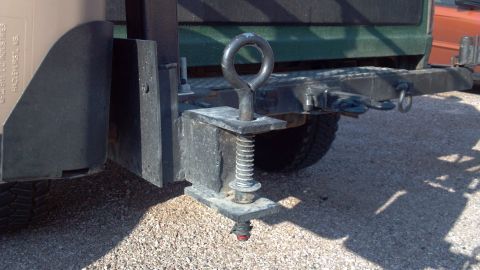

This pin & spring locks the arm closed. The spring keeps it from lift up without some deliberate fo...

285 hits | 86.29 KB | Posted: 9/10/12

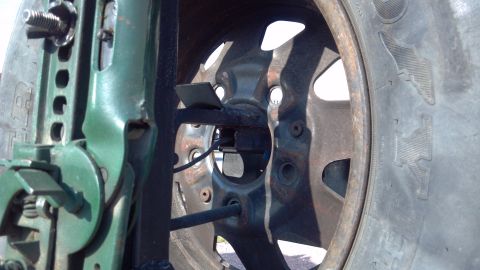

Rear view of the spare tire mount. Some parts came off the stock Bronco spare tire carrier, I just ...

170 hits | 99.3 KB | Posted: 9/10/12

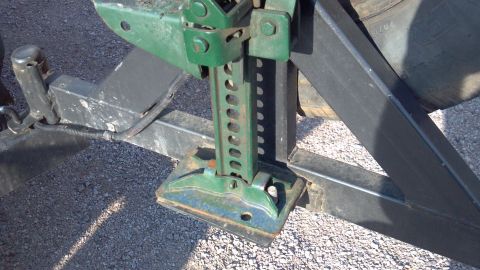

The pad for my hi-lift jack mount. The bolt acts as a pin to keep the jack in place.

155 hits | 86.22 KB | Posted: 9/10/12

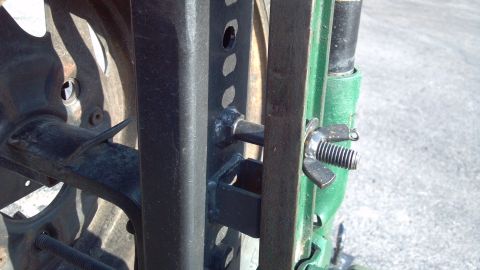

Upper mounting point for the hi-lift.

237 hits | 87.5 KB | Posted: 9/10/12

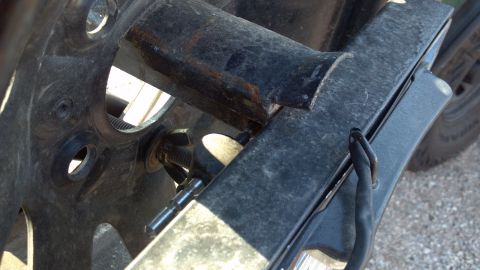

My removable license plate bracket. It locks in place with a locking pin, which keeps the spare tir...

169 hits | 84.77 KB | Posted: 9/10/12

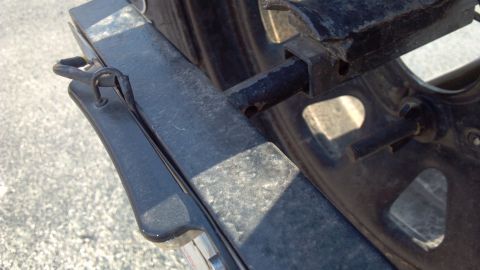

With the locking pin removed, the light is un-plugged, and the whole bracket slides out.

247 hits | 78.05 KB | Posted: 9/10/12

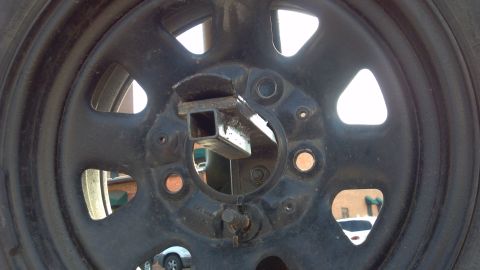

Spare tire mount, minus the license plate bracket.

158 hits | 117.76 KB | Posted: 9/10/12

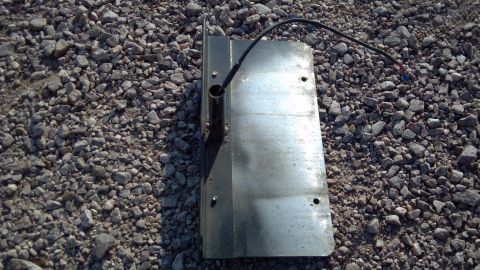

The backside of the license plate bracket. Just some round tube and a piece of angle iron.

171 hits | 104.26 KB | Posted: 9/10/12

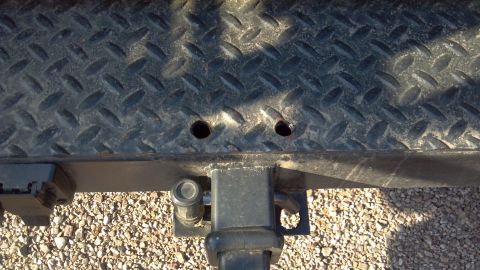

These are the holes were the locking pins for the swing arms mount.

149 hits | 93.2 KB | Posted: 9/10/12

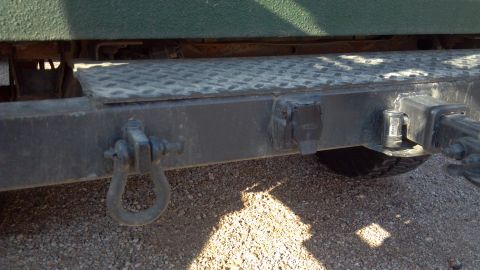

Rear bumper: D-ring mounts the trailer electrical hookup.

251 hits | 98.04 KB | Posted: 9/10/12

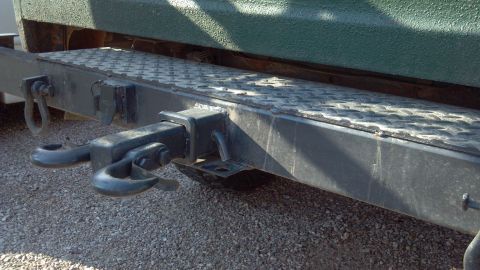

I wish I had more diamond tread plate to go all the way across.
