Fuel Pump Access Hole

From 1996 Ford Bronco “Buckin Bronco”, documented by Kingfish999.

8 photos
← Back to this vehicle

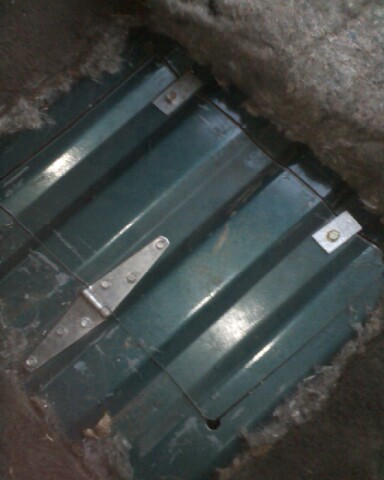

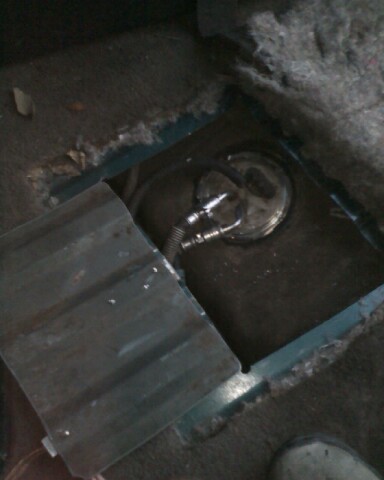

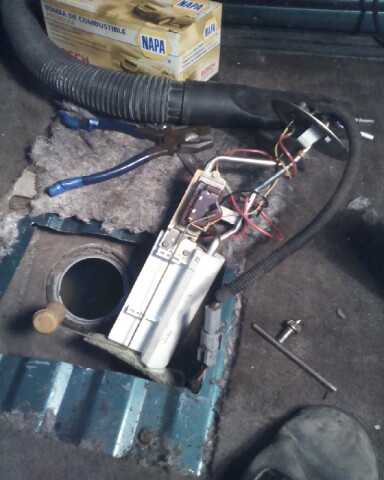

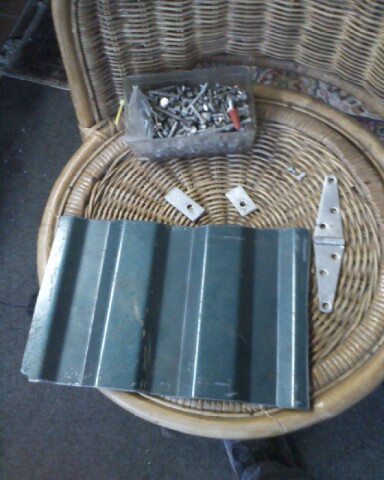

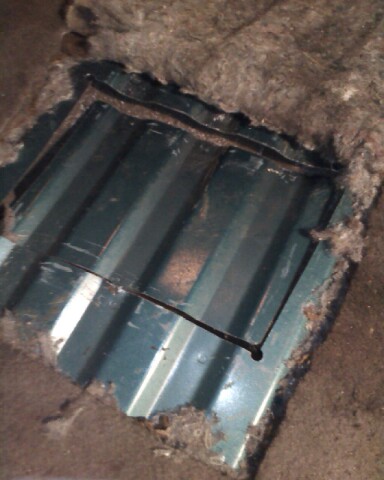

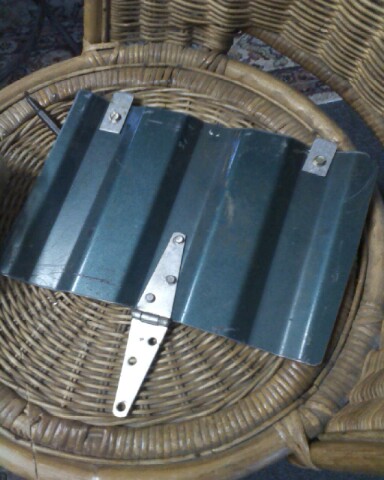

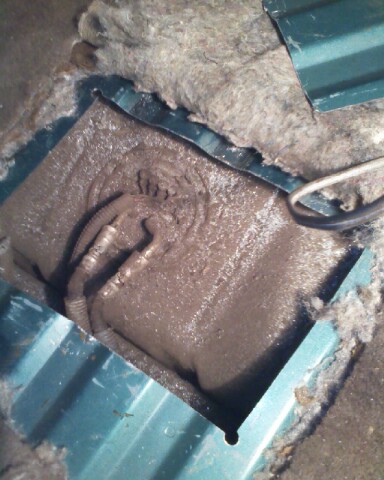

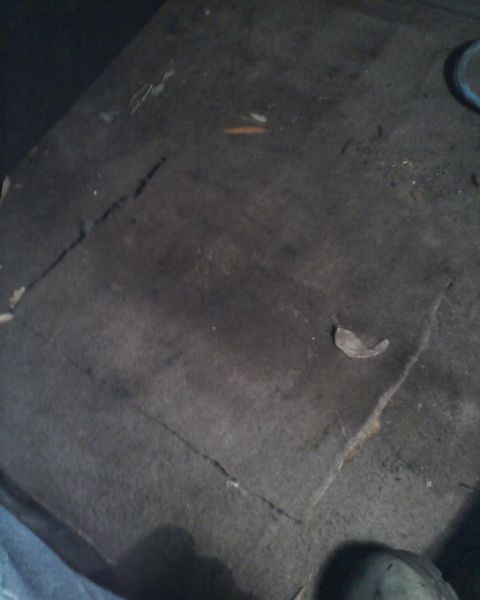

1996 Ford Bronco - This is how i made a fuel pump access hole in my 96 Bronco. also made one in my 88 the same way. If you have a bad fuel pump or sunken floa… 1996 Ford Bronco - By looking at the spotwelds are and measuring under the truck where the lip ends, i measured where to cut. To begin the cut i used a 3/8 dr… 1996 Ford Bronco - Now have full access to the fuel pump and lines. As you can see the top of the tank of my truck was very dirty. bets to clean the area befo… 1996 Ford Bronco - disconnected the fuel lines and electricle connection. used a hammer and flathead screwdriver to tap the locking ring where it unlocks. pul… 1996 Ford Bronco - using the old piece i cut out, i added 2 hanges and added tabs to the other side so it easilly flips open and still supports weight. 1996 Ford Bronco - finished the door. i ended up taking it back off and adding another 2 hindges and another tab to make it stronger and less flimsy 1996 Ford Bronco - the door installed befor adding an extra pair of hindges and another tab. covers the hole pervectly and the carpet makes the bumps fro mthe… 1996 Ford Bronco - door is easy to flip out now with the door. I used some sort of glue to hold the section of carpet down. I also added a rubber matt over th…
