1992 Ford Bronco

documented by ghettoscrap 13 photos documented since ♡ Follow this build

The story

Bought it off Craigslist for $400 with a locked up engine and wrecked out passenger side. I was building a 351 I found in a trashed truck in the Wolf River Bottoms when I spied a driving 1990 F-350 on Craigslist with 15,000 miles, bad frame. I bought it and got the Bronco running next weekend. I drove it for several months before the transmission crapped out. I rebuilt the E4OD myself with several mods for improved shift and durability, I wish I had not used a low stall convertor( looking for better MPGs ), but it still works.

Late style remote mirrors installed to modified doors, waiting for a roundtoit to install lay over wire harness in dash. Eventually it will be all one shade of black. · ghettoscrap

Photos

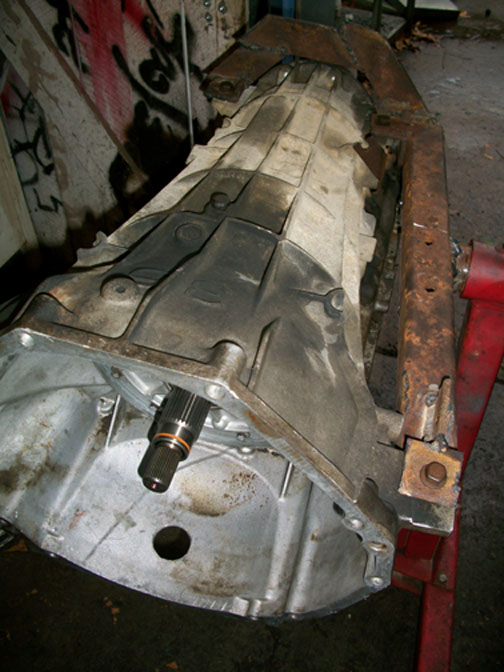

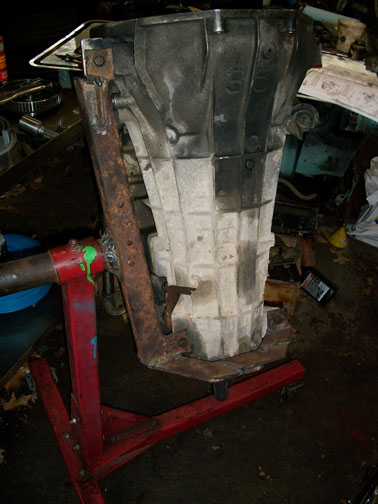

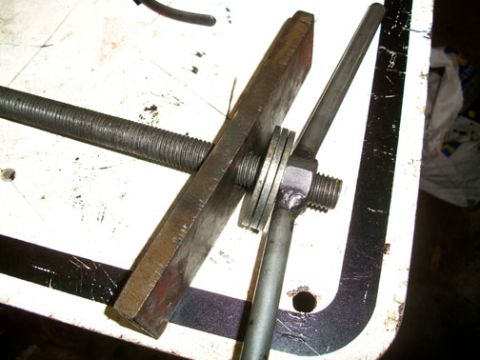

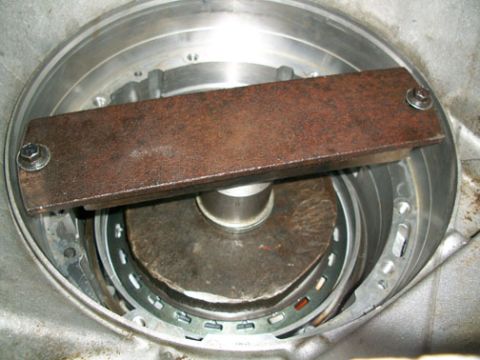

Black 1992 Ford Bronco, hood open, side view 1992 Ford Bronco: Here is the end of the spring compression tool for removing the snap rings inside of drums, or this one can a… 1992 Ford Bronco: I forgot what this tool is called but it pushes the center support into the case so it can be bolted in place… 1992 Ford Bronco: Another shot of the mount and the engine stand, It holds better than I thought, I am not sure why they have a… Close-up of a transmission housing with rusty metal brackets 1992 Ford Bronco: detail of the rear of the fixture showing washers used as spacer between the fixture and case 1992 Ford Bronco: Custom made transmission holding fixture that uses any standard engine stand as a base 1992 Ford Bronco: Detail of the welds at the pivot point, ugly but meaty! 1992 Ford Bronco: here is the fixture end of the spring compression tool where the fingers can slide into any width needed. 1992 Ford Bronco: close up of the fingers on the bar stock, the fingers where just cut out of bar stock as well. The shaft is j… 1992 Ford Bronco: close up of the finger where it contacts the spring retainer in the hubs/cases. They are cut from some pipe,… 1992 Ford Bronco: another detail of the finger and the nasty torch cut that got it notched. 1992 Ford Bronco: detail of the nut and bar stock twisty thing for compressing the spring to allow snap ring removal.
