Exterior and Under Hood

From 1988 Ford Bronco, documented by VaMark.

33 photos 3 videos
← Back to this vehicle

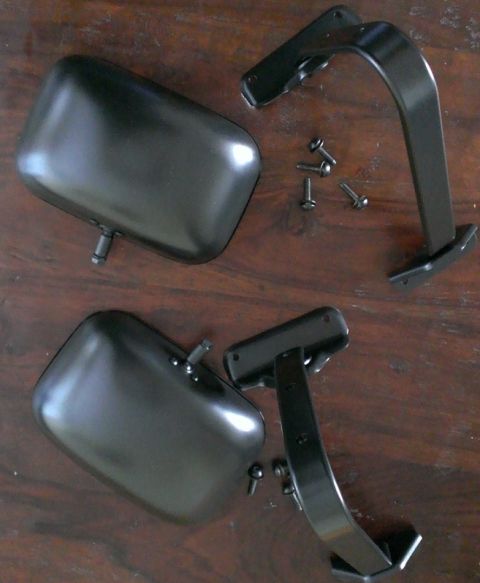

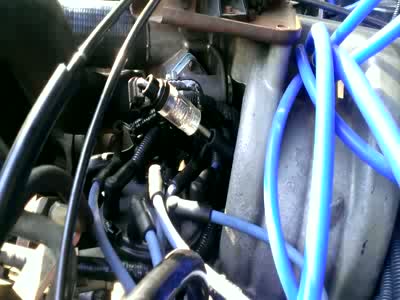

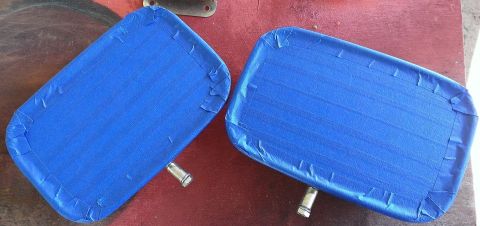

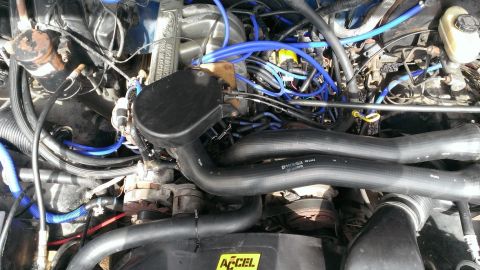

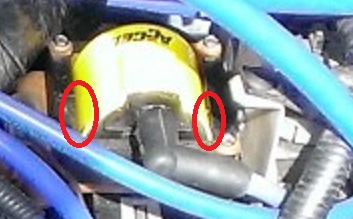

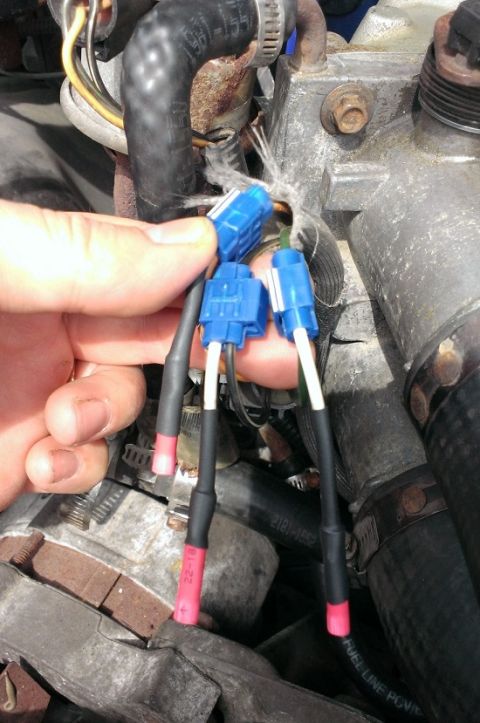

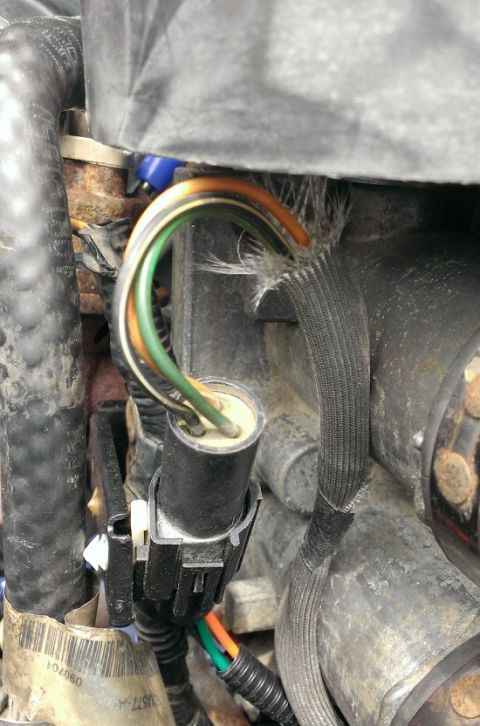

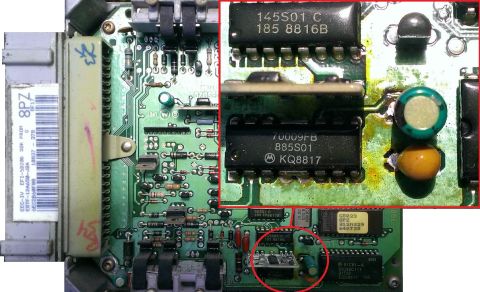

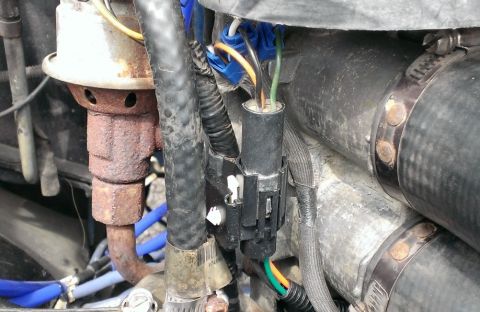

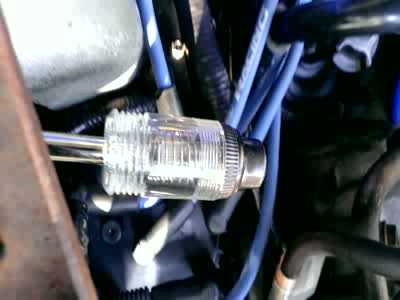

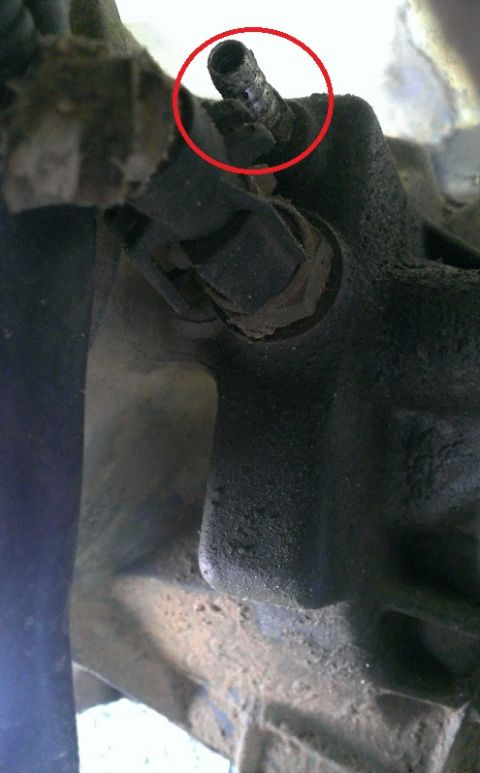

1988 Ford Bronco - Close-up of custom headlight 1988 Ford Bronco - Locking pin sheared off of the distributor's gear. 1988 Ford Bronco - Undetermined wire connection under the hood 1988 Ford Bronco - Undetermined wire connection under the hood 1988 Ford Bronco - Undetermined connector under hood may be for tachometer resistor 1988 Ford Bronco - Removed the throttle body to replace the TPS, and learned that the upper intake is full of crud. The build-up is terrible (about 1/16") thr… 1988 Ford Bronco - Upper intake manifold full of carbon build-up and grease. 1988 Ford Bronco - Passenger side valve cover before sanding and paint 1988 Ford Bronco - Driver side valve cover before sanding and paint 1988 Ford Bronco - Valve covers sanded and repainted. 1988 Ford Bronco - Engine component detail with wires and hoses visible, a red circle marks a specific area. 1988 Ford Bronco - A/C-heater electrical wiring diagram showing the clutch cycling pressure switch, blower resistor and color-coded circuits. 1988 Ford Bronco - Engine with recently replaced vac lines. Old and brittle plastic lines were replaced with quality silicone hoses 1988 Ford Bronco - Engine with recently replaced vac lines. Old and brittle plastic lines were replaced with quality silicone hoses 1988 Ford Bronco - Engine with recently replaced vac lines. Old and brittle plastic lines were replaced with quality silicone hoses 1988 Ford Bronco - Original TPS connector 1988 Ford Bronco - TPS connector with spliced-in test "ports" 1988 Ford Bronco - New TPS connector and testing configuration tucked way. After this picture was taken, gaps in the splice connections and the ends of the po… 1988 Ford Bronco - While troubleshooting a possible misfire, I noticed the indistinguishable blue spark in between the coil and its mounting base (circled are… 1988 Ford Bronco - Intake vacuum at idle. Very erratic between 16-20 inHg.Video 1988 Ford Bronco - Open vac line or vent connection at top of transfer case 1988 Ford Bronco - The tell-tale sign of a leaking capacitor in the PCM. This is what I found when I pulled the PCM after I wasn't getting any response from m… 1988 Ford Bronco - Chrome side mirrors before painting 1988 Ford Bronco - Glass is all taped up prior to paint 1988 Ford Bronco - Mirrors after painting with VHT Engine Metallic and baking in the oven for 60mins at 200 degrees. 1988 Ford Bronco - Mirrors after painting with VHT Engine Metallic and baking in the oven for 60mins at 200 degrees. 1988 Ford Bronco - Repainted mirrors back on the rig 1988 Ford Bronco - Repainted mirrors back on the rig 1988 Ford Bronco - Repainted mirrors back on the rig 1988 Ford Bronco - Repainted mirrors back on the rig 1988 Ford Bronco - Catalytic converter (outtake) 1988 Ford Bronco - Catalytic converter (intake) 1988 Ford Bronco - TPS installed incorrectly. Wires should be facing the opposite direction 1988 Ford Bronco - Technical document provides instructions for checking TPS resistance with specific ohm values. 1988 Ford Bronco - Good spark at #1 terminal of distributor capVideo 1988 Ford Bronco - Absolutely no spark current coming out of #4 distributor terminal. Two different distributor caps and two different rotors have been tried.…Video
