DSCF3671 - rear seat center catch - before.jpg
42 hits | 34.64 KB | Posted: 12/6/21

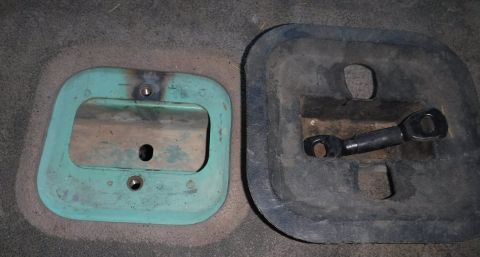

Rear seat center catch, before.

DSCF3672 - rear seat center catch - after.jpg
32 hits | 30.06 KB | Posted: 12/6/21

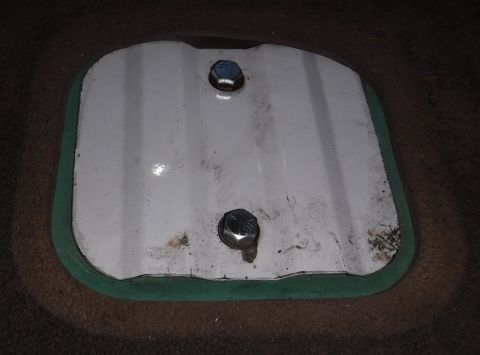

Rear seat center catch, after.

DSCF3677 - box sides.jpg
34 hits | 73.26 KB | Posted: 12/6/21

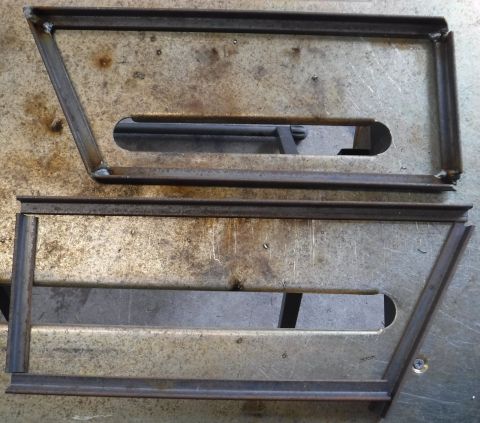

Sides coming together for the rear footwell storage box.

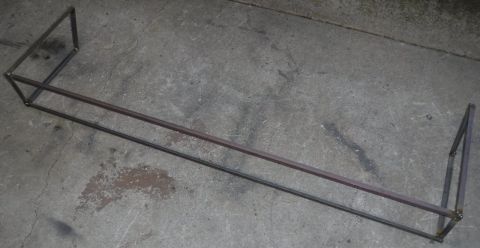

DSCF3679 - box sides and front.jpg
39 hits | 32.5 KB | Posted: 12/6/21
Front structure added. 5.5 lbs at this stage.

DSCF3681 - box expanded steel perimeter.jpg
64 hits | 46.19 KB | Posted: 12/6/21

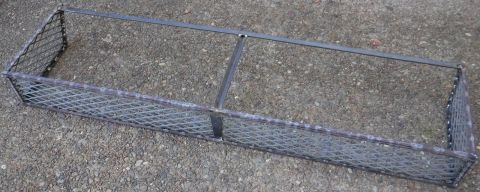

Expanded steel added, along with a center front and top brace, to keep the expanded steel from foldi...

DSCF3682 - box front mount test fit.jpg
45 hits | 65.55 KB | Posted: 12/6/21

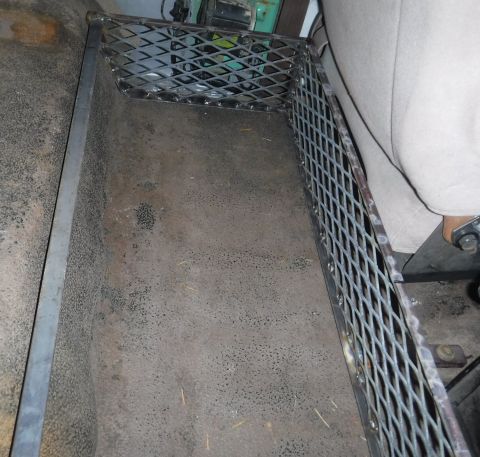

Test fit.

DSCF3683 - box front mount test fit.jpg
36 hits | 78.11 KB | Posted: 12/6/21

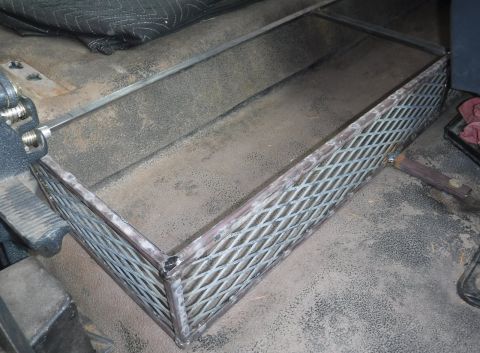

Test fit.

DSCF3684 - BedRug.jpg
46 hits | 37.36 KB | Posted: 12/6/21

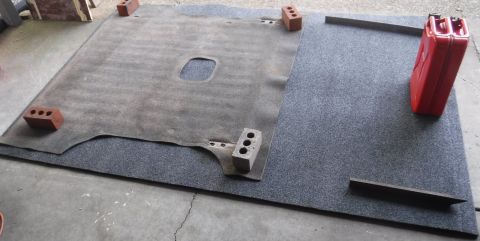

My universal, cut-to-fit BedRug arrived, so I dropped what I was doing and flattened it out to get i...

DSCF3685- BedRug side cutaway.jpg
36 hits | 24.57 KB | Posted: 12/6/21
Side view of the BedRug material. Visually, it reminds me of Kaizen foam, but without the layers, w...

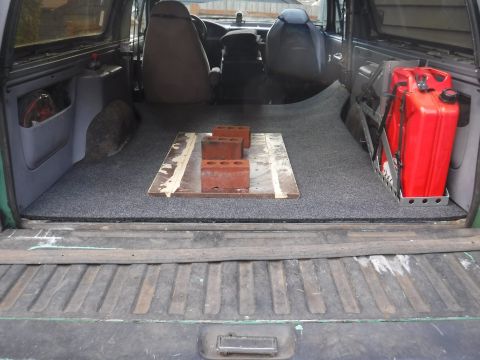

DSCF3686 - BedRug trimmed.jpg
35 hits | 51.49 KB | Posted: 12/6/21
BedRug trimmed and test fit. Got it pretty close initially, but trimmed it a bit more around the sp...

DSCF3687 - BedRug too tall for tailgate threshold trim.jpg
33 hits | 37.02 KB | Posted: 12/6/21

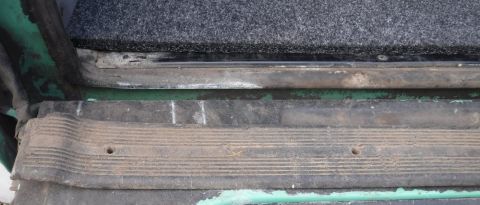

I'll need to make a custom sill plate of some sort for the tailgate, since the 1/2" BedRug sits...

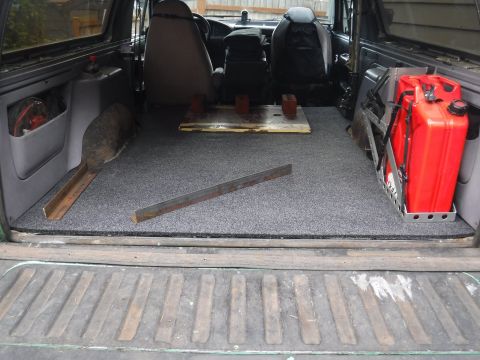

DSCF3688 - BedRug final trim.jpg
118 hits | 56.41 KB | Posted: 12/6/21
Final trimming done.

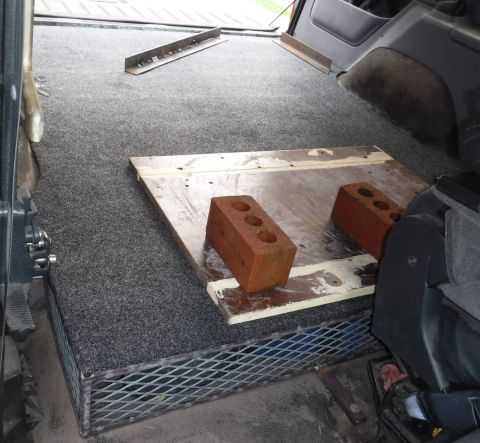

DSCF3689 - BedRug final trim.jpg
68 hits | 71.68 KB | Posted: 12/6/21
Final trimming done. It's like a SUV crossed with a medium length bed pickup!

DSCF3690 - box rear structure complete.jpg
139 hits | 34.36 KB | Posted: 12/6/21

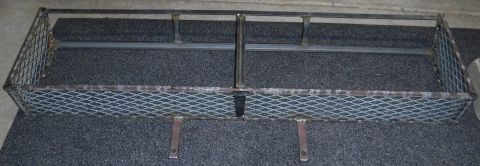

Full structure, as installed in the previous pics. 17.8 lbs with the lower rear structure and front...

DSCF3691 - box rear structure complete.jpg
73 hits | 13.61 KB | Posted: 12/6/21
Rear view of the completed structure.

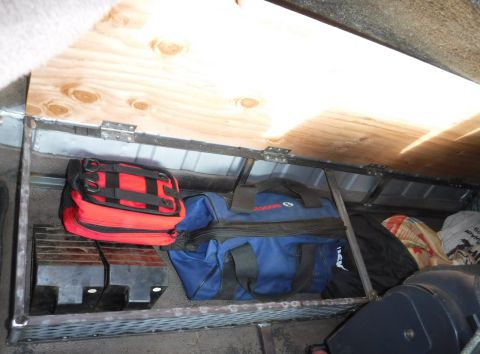

DSCF3693 - box lid.jpg
66 hits | 45.62 KB | Posted: 12/6/21
1/2" plywood lid installed, seems plenty strong to kneel or stand on. Front/center latch hangi...

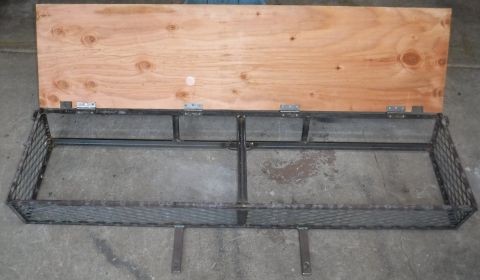

DSCF3706 - tie-downs lock loop added.jpg
100 hits | 35.24 KB | Posted: 12/19/21
D-ring tie-downs added at the rear corners, cable lock loop added at lower rear, notches cut in plyw...

DSCF3705 - tie-downs lock loop added.jpg
146 hits | 10.04 KB | Posted: 12/19/21
Rear view of the tie-downs (raised) and plywood notches. The tie-downs came from a Toyota minivan. ...

DSCF3708 - cable lock loop.jpg
73 hits | 70.07 KB | Posted: 12/19/21

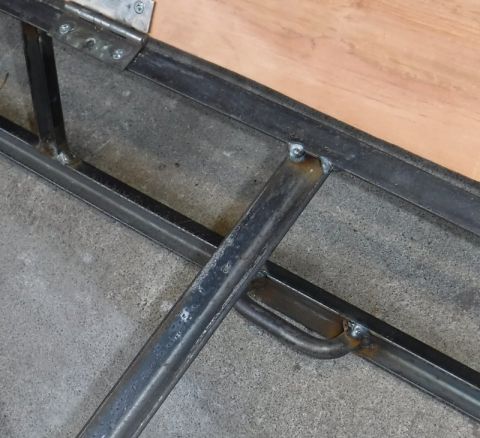

Close-up of the cable lock loop, beefiest part of the build! I found it torched off and laying on t...

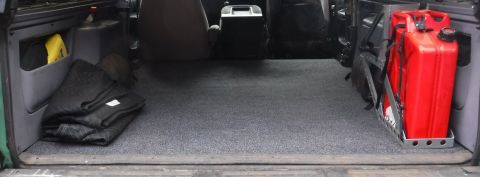

DSCF3695 - tailgate sill plate fitted.jpg
112 hits | 24.48 KB | Posted: 12/19/21
Rather than build a new tailgate sill plate to cover up the thicker BedRug, I experimented on a scra...
