EEC Articles

From 1993 Ford Taurus “Taurus SHO”, documented by Alex Perry.

15 photos
← Back to this vehicle

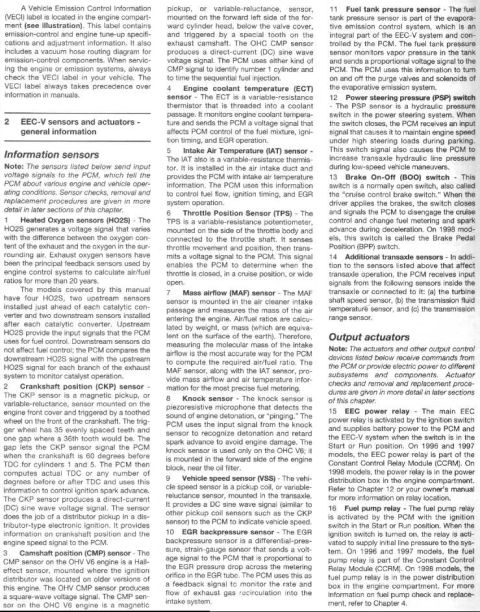

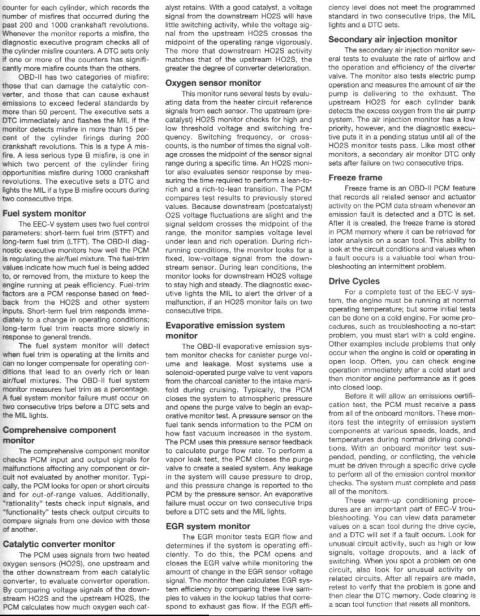

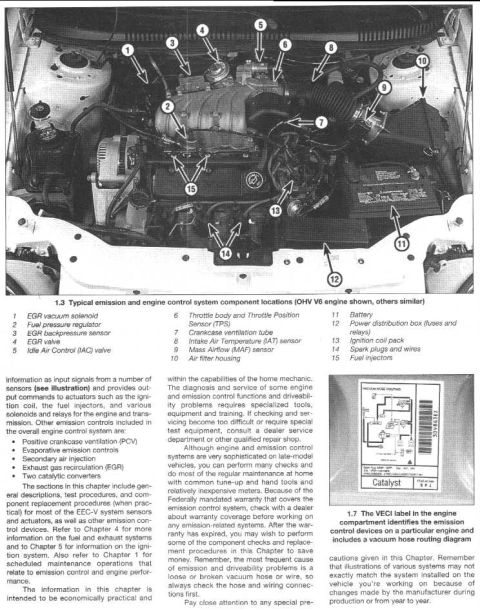

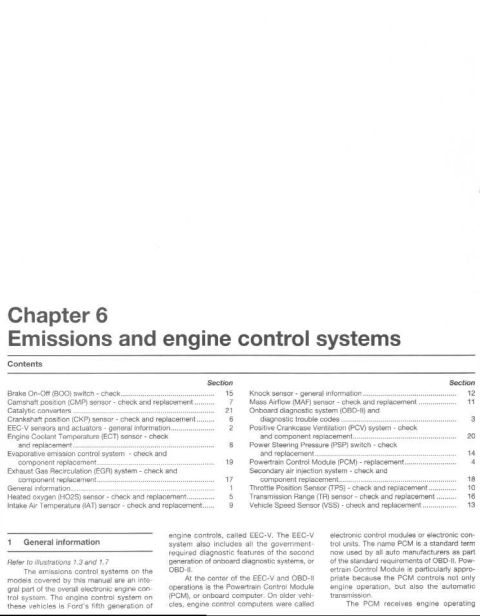

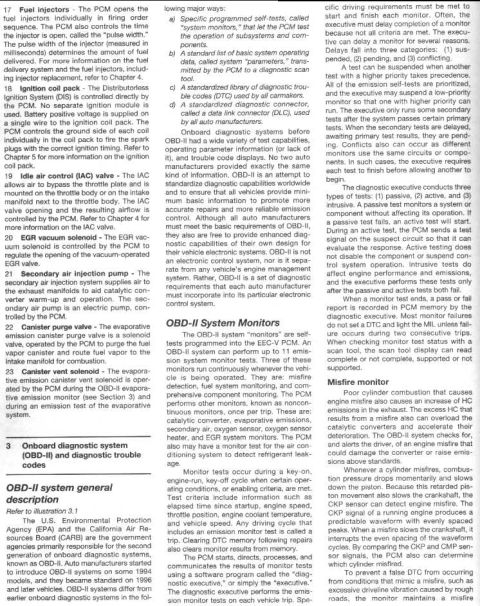

1993 Ford Taurus - Repair manual Chapter 6 contents for emissions and engine control systems, listing sensor, EGR, EVAP and PCM sections with EEC-V general in… 1993 Ford Taurus - Service manual page showing a numbered engine-bay photo of emission and engine-control component locations with explanatory text. 1993 Ford Taurus - Service manual text covering EEC-V information sensors (HO2S, CKP, CMP, IAT, TPS, MAF, VSS, EGR) and output actuators; explains how each se… 1993 Ford Taurus - Repair manual page covering PCM-controlled outputs, OBD-II system general description, OBD-II system monitors and the misfire monitor. 1993 Ford Taurus - Service text describing OBD-II diagnostic monitors: misfire, fuel system, comprehensive component, catalyst, oxygen sensor, evaporative, EG… 1993 Ford Taurus - Bosch reference page on spark-ignition engine management: net flywheel torque factors, primary engine-management functions, cylinder-charge… 1993 Ford Taurus - Manual page describing inductive ignition systems and ignition coils, with a small schematic figure of ignition coil distributions. 1993 Ford Taurus - Bosch reference page on the ignition subsystem and cylinder charge composition (fresh air/fuel plus residual gases) in the spark-ignition e… 1993 Ford Taurus - Technical text on the throttle valve, gas exchange and pressure charging, with Fig. 3 throttle-valve map for spark-ignition engines. 1993 Ford Taurus - Technical text on exhaust-gas turbochargers and air-fuel mixture, with Fig. 4 torque curves for turbocharged and atmospheric-induction engi… 1993 Ford Taurus - Technical text on excess-air factor lambda, with Fig. 1 on power and specific fuel consumption and Fig. 2 on CO, HC and NOx emissions. 1993 Ford Taurus - Manual page explaining mixture adaptation for cold starting, post-start, warm-up, idle and part-load, full load (WOT), acceleration and tra… 1993 Ford Taurus - Technical text on ignition function, energy requirements and ignition timing, with Fig. 1 showing piston and crankshaft position at advance… 1993 Ford Taurus - Manual page on combustion knock and ignition timing, with Fig. 2 combustion-chamber pressure curves and Fig. 3 excess-air factor vs. fuel c… 1993 Ford Taurus - Manual page explaining excess-air factor effects on exhaust emissions, with HC, NOx, and CO emission curves.
