Where is the Idle Air Control (IAC) valve on the OHV V6 engine?

It is component 5 in figure 1.3, shown near the top center of the engine adjacent to the throttle body (component 6).

What emission control components are identified in the engine compartment photo?

EGR vacuum solenoid, fuel pressure regulator, EGR backpressure sensor, EGR valve, IAC valve, throttle body/TPS, crankcase ventilation tube, IAT sensor, MAF sensor, air filter housing, battery, power distribution box, ignition coil pack, spark plugs and wires, and fuel injectors.

What other emission controls are part of the overall engine control system besides EEC-V sensors and actuators?

Positive crankcase ventilation (PCV), evaporative emission controls, secondary air injection, exhaust gas recirculation (EGR), and two catalytic converters.

What is the most common cause of emission and driveability problems according to this page?

A loose or broken vacuum hose or wire, the manual advises always checking hose and wiring connections first.

What information is on the VECI label?

Located in the engine compartment, the VECI label identifies the emission control devices on a particular engine and includes a vacuum hose routing diagram.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “Taurus SHO”/ Photo supermotors.net/registry/media/551222

Ford Taurus EEC-V Emission & Engine Control Component Locations - OHV V6

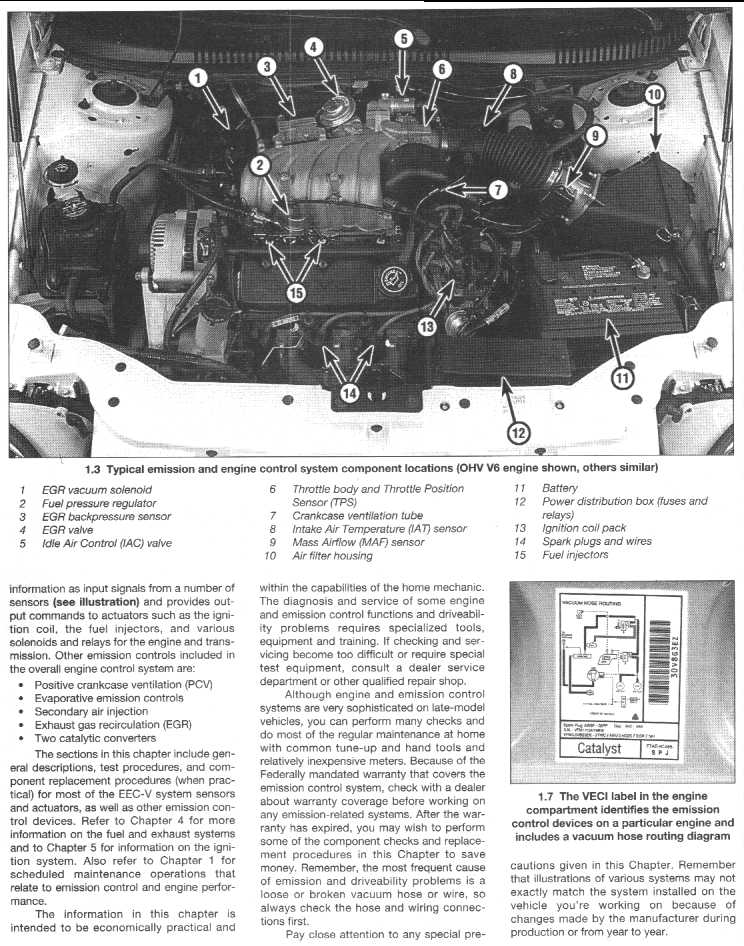

Service manual page with labeled engine-bay emission control component locations and prose

‹ ›

Reference · 1992-1995 TaurusAll 37 manual pages

OBD-II monitor descriptions manual page covering misfire fuel system catalyst and oxygen sensor monitors

Repair manual page on PCM outputs and OBD-II system general description and monitors

Ford EEC-V emission control sensors and actuators general information manual page

Ford Taurus EEC-V Emission & Engine Control Component Locations - OHV V6

Chapter 6 emissions and engine control systems contents page with section list

Ford DIS Ignition Acronyms & Breakout Box Overlay Key - PIP, CID, SPOUT, IDM

Ford Taurus SHO 3.0L/3.2L Engine Compartment Component Location Diagram

Engine Induction System Patent Text - Dual Plenum Intake & Throttle Staging (2001)

Piston ring, 3.2L piston, oil pump specs and 3.0L SHO drive belt tension table

SHO 3.0L and 3.2L spec tables for camshaft lobe lift, piston diameter, ring groove and piston pin

1995 Taurus/Sable 3.0L/3.2L SHO engine specifications for bore, stroke, cylinder head, block and crankshaft

Lubrication system spec table with oil pump clearances and 5.0 qt oil capacity

37manual pages1992-1995 Ford Taurus More reference

Focus Fanatic Hocus SHOcus opening spread with the SHO-powered Focus ZX3 by a dock

Brochure

Ford Taurus 3.0L V6 Spark Plug Wire & Coil Pack Routing Diagram (1993)

Wiring diagram

Schematic

SHO Time swap steps 10-14: shorter Fram PH3614 oil filter, A/C compressor, accessory brackets and exhaust

Service procedure

1987-95 Ford Taurus SHO TRW Rack & Pinion Steering Parts Diagram & Part Numbers

Exploded parts

1993 Ford Taurus Fuse Box Diagram - Panel Layout, Flasher & Color Codes

Fuse chart

Blueprint

Ford Mustang GT Coupe Premium window sticker with MSRP, fuel economy label and 5-star safety ratings

Spec plate

Ford SHO 3.0L/3.2L V6 Engine Specs - Valve, Camshaft, Rod & Bearing Clearances

Torque spec

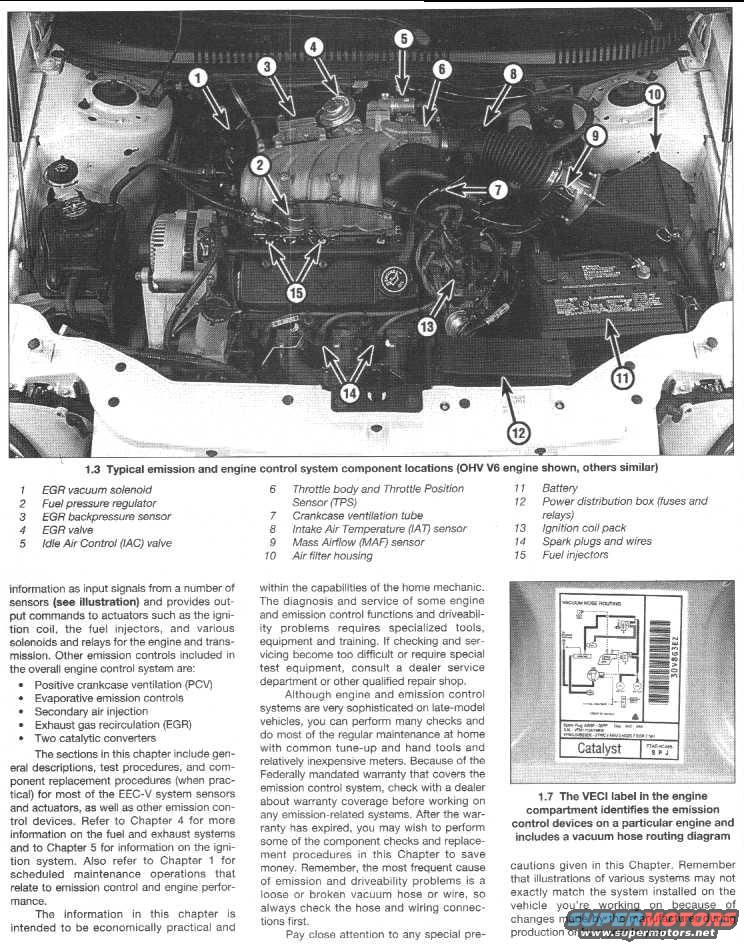

Service manual page showing a numbered engine-bay photo of emission and engine-control component locations with explanatory text.

Part of 1992-1995 Ford Taurus Manual Pages

AI caption August 2007 · Photo 910 of 1028

This is a scanned page from a Haynes-style repair manual chapter covering emissions and engine control systems (EEC-V) for a Ford vehicle. The top of the page shows a photograph of an OHV V6 engine bay with 15 numbered callouts, and a legend identifying each component: EGR vacuum solenoid, fuel pressure regulator, EGR backpressure sensor, EGR valve, Idle Air Control (IAC) valve, throttle body/Throttle Position Sensor (TPS), crankcase ventilation tube, Intake Air Temperature (IAT) sensor, Mass Airflow (MAF) sensor, air filter housing, battery, power distribution box, ignition coil pack, spark plugs and wires, and fuel injectors. The text explains that the EEC-V system uses sensor inputs to command actuators such as the ignition coil, fuel injectors, and solenoids/relays, and lists other emission controls: PCV, evaporative emission controls, secondary air injection, EGR, and two catalytic converters. It advises home mechanics on the scope of DIY diagnosis, notes the Federal emissions warranty, and stresses checking vacuum hoses and wiring first when troubleshooting driveability problems. A smaller figure (1.7) shows the VECI label, which identifies a vehicle's emission control devices and includes a vacuum hose routing diagram, with a spark plug specification (AWSF-32PP) visible.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the Idle Air Control (IAC) valve on the OHV V6 engine?: It is component 5 in figure 1.3, shown near the top center of the engine adjacent to the throttle body (component 6).
What emission control components are identified in the engine compartment photo?: EGR vacuum solenoid, fuel pressure regulator, EGR backpressure sensor, EGR valve, IAC valve, throttle body/TPS, crankcase ventilation tube, IAT sensor, MAF sensor, air filter housing, battery, power distribution box, ignition coil pack, spark plugs and wires, and fuel injectors.
What other emission controls are part of the overall engine control system besides EEC-V sensors and actuators?: Positive crankcase ventilation (PCV), evaporative emission controls, secondary air injection, exhaust gas recirculation (EGR), and two catalytic converters.
What is the most common cause of emission and driveability problems according to this page?: A loose or broken vacuum hose or wire, the manual advises always checking hose and wiring connections first.
What information is on the VECI label?: Located in the engine compartment, the VECI label identifies the emission control devices on a particular engine and includes a vacuum hose routing diagram.
