“Silver Annivesary”1991 Ford Bronco

documented by desertdave35 20 photos documented since ♡ Follow this build

Photos

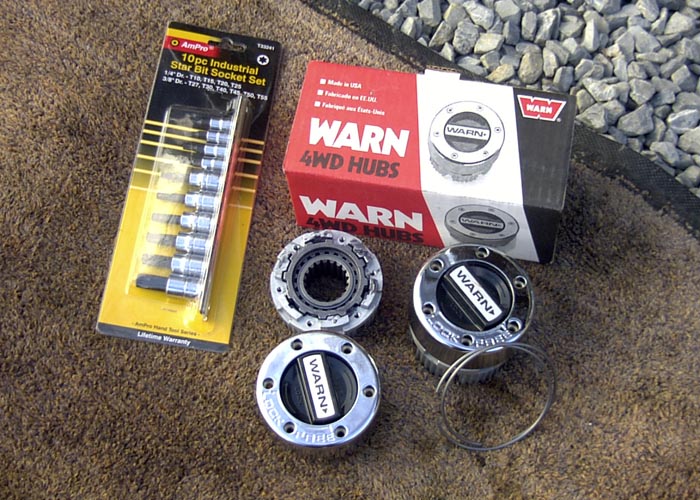

1991 Ford Bronco: Warn 4WD locking hubs, box, and Torx bit socket set on carpet 1991 Ford Bronco: Chrome AUTOMATIC 4x4 locking hub cap with red arrow noting five Torx screws Close-up of a Warn locking hub assembly on a wheel. It shows the internal gears and locking mechanism Close-up of a metal auto hub assembly with red arrows and text instructions Close-up of disengaged auto hub lock ring on a vehicle wheel Worn automatic locking hub assembly with red arrows pointing to 'Factory Auto Hub' and 'Factory Auto Hub Lock… 1991 Ford Bronco: Labeled close-up of a front axle hub bore with splined shaft and callouts 1991 Ford Bronco: Splined hub bore with red callouts marking the spacer/washer and C-clip to remove Warn hub with C-clip and spacer/washer removed 1991 Ford Bronco: Front locking hub and splined axle shaft with red snap-ring annotation 1991 Ford Bronco: Close-up of a manual locking hub interior with splined gear and annotated snap ring groove 1991 Ford Bronco: Dirty underside suspension hub with coil spring and flashlight 1991 Ford Bronco: Ball joint stud and rubber boot on a vehicle's undercarriage 1991 Ford Bronco: Close-up of a locking hub assembly with labeled snap ring and missing lock ring 1991 Ford Bronco: Close-up of a manual locking hub interior with red text labeling lock ring and snap ring positions 1991 Ford Bronco: Chrome WARN locking hub mounted in center of a polished steel wheel 1991 Ford Bronco: Front wheel of black Ford with chrome wheel and muddy tire on gravel, tools nearby Black Ford Bronco front wheel with steel rim and muddy all-terrain tire on gravel 1991 Ford Bronco: Close-up of exposed wheel hub bearing and locking nut assembly with greasy metal parts 1991 Ford Bronco: Close-up of exposed hub bearing and spindle assembly inside a metal housing
