Album section

Miscellaneous Tech

From 1986 Ford Bronco “THE DESTROYER”, documented by Ragged_Ol_86.

5 photos
← Back to this vehicle

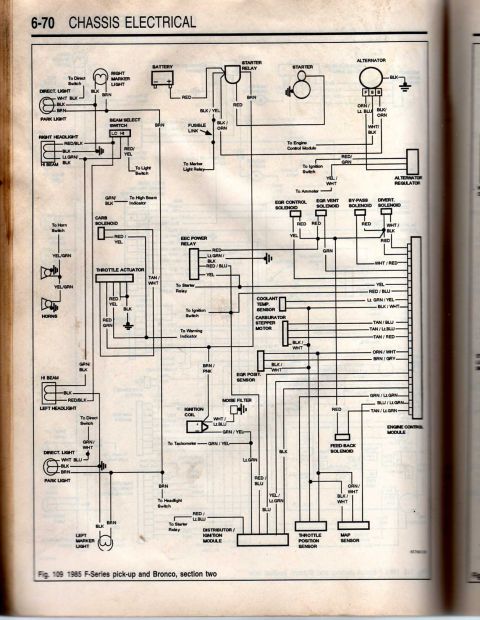

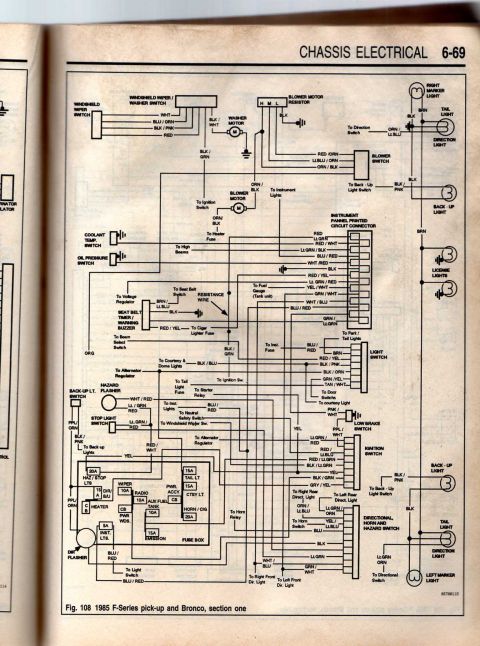

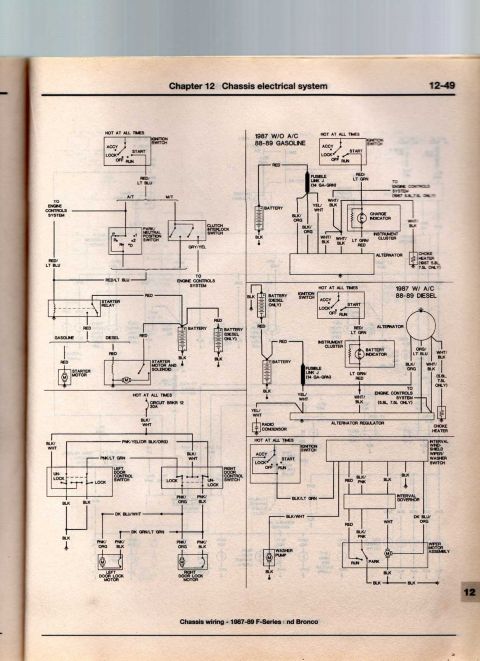

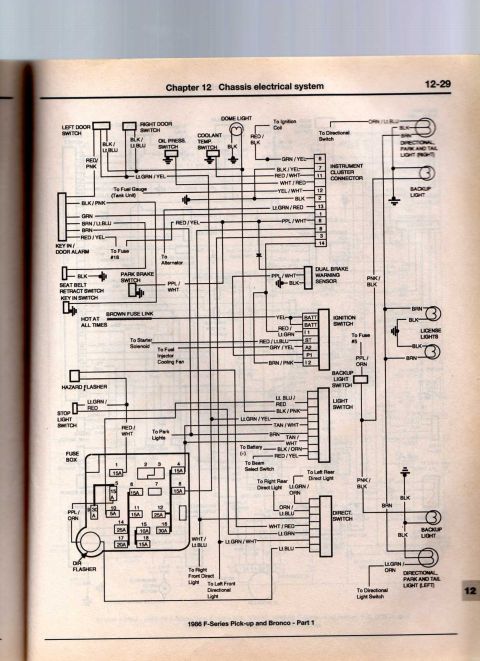

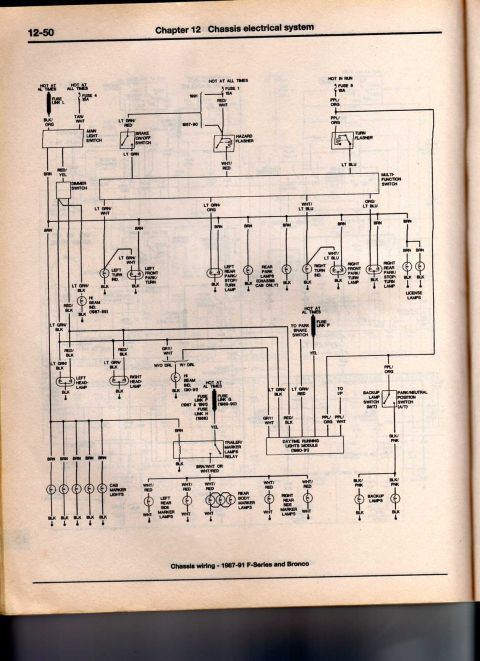

1986 Ford Bronco - Manual wiring diagram of the 1985 Ford F-Series/Bronco chassis electrical system with color-coded circuits and connectors. 1986 Ford Bronco - Manual wiring diagram of the 1985 Ford F-Series/Bronco engine and charging circuits with color-coded wires. 1986 Ford Bronco - Manual chassis wiring diagram for 1987-91 Ford F-Series/Bronco with multifunction switch, lamps and color-coded circuits. 1986 Ford Bronco - Manual chassis wiring diagram for 1987-89 Ford F-Series/Bronco covering gasoline and diesel circuits with color codes. 1986 Ford Bronco - Manual chassis wiring diagram for 1986 Ford F-Series/Bronco showing lighting, ignition and instrument circuits with color codes.
