What are the two alternator charging system configurations shown?

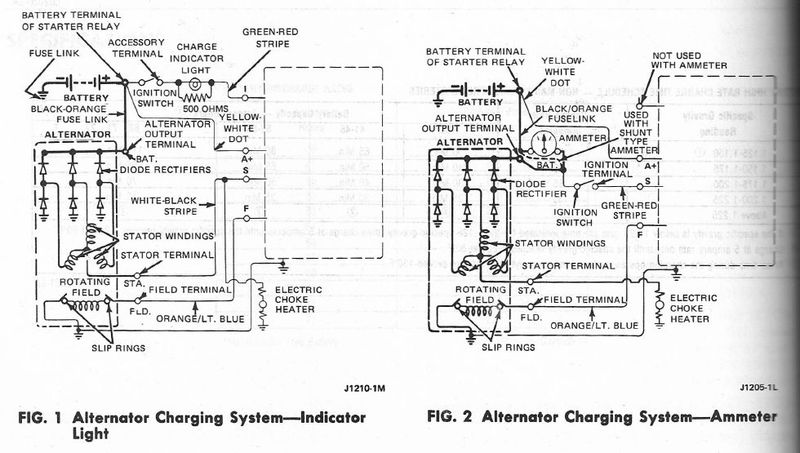

Figure 1 shows the alternator charging system with a charge indicator light (J1210-1M), and Figure 2 shows the system with an ammeter (J1205-1L).

What resistor is used with the charge indicator light?

A 500-ohm resistor is shown connected across the charge indicator light in Figure 1.

What terminals are on the alternator and regulator in these diagrams?

The alternator has BAT. (output), STA. (stator), and FLD. (field) terminals; the regulator terminals shown are I, A+, S, and F (Figure 2 uses A+, S, F, with one terminal marked not used with ammeter).

Where does the electric choke heater get its power?

The electric choke heater is fed by the orange/light blue wire from the alternator's stator (STA.) terminal in both diagrams.
