What models does this A/C-heater wiring diagram cover?

The page header states it covers the Montego, Cougar, Torino, Elite and Thunderbird Heater-A/C System.

What size circuit breaker protects the blower/A-C circuit in this diagram?

A 35 amp circuit breaker is shown between the ignition switch and the power feed wire.

What are the blower switch speed positions shown?

The blower switch has HIGH, MEDIUM-2, MEDIUM-1 and LOW (BAT) positions, using terminals B, M1, M2 and H.

What wire colors are on the 1976 blower motor switch connector?

Yellow-Red Dot, Orange-Black Stripe, Red-Orange Hash, and Light Green-White Hash.

Does the power feed wire color differ between models?

Yes. The feed is Brown-Yellow Stripe on the T-Bird and Orange Stripe on Cougar, Torino, Elite and Montego; also, one wire is Black-Lt. Green Dot on T-Bird versus Orange-Black Stripe on the other models. The 1976 A/C control switch connector shows Brown-Orange Stripe (Yellow Stripe on Thunderbird).

Home/ Registry/ Ford/ Ranchero/ 1977-1979/ 1979 Ford Ranchero/ Photo supermotors.net/registry/media/1012874

1975-76 Ford Torino/Elite/Thunderbird & Cougar A/C-Heater Wiring Diagram

1975-76 Montego Cougar Torino Elite Thunderbird manual A/C-heater wiring diagram

‹ ›

Manual A/C-heater electrical system wiring diagram for 1975-76 Montego, Cougar, Torino, Elite and Thunderbird showing blower motor, 35A circuit breaker, blower resistor, A/C clutch, ambient cut-off switch and blower switch with wire colors.

AI caption March 2014 · Photo 176 of 363

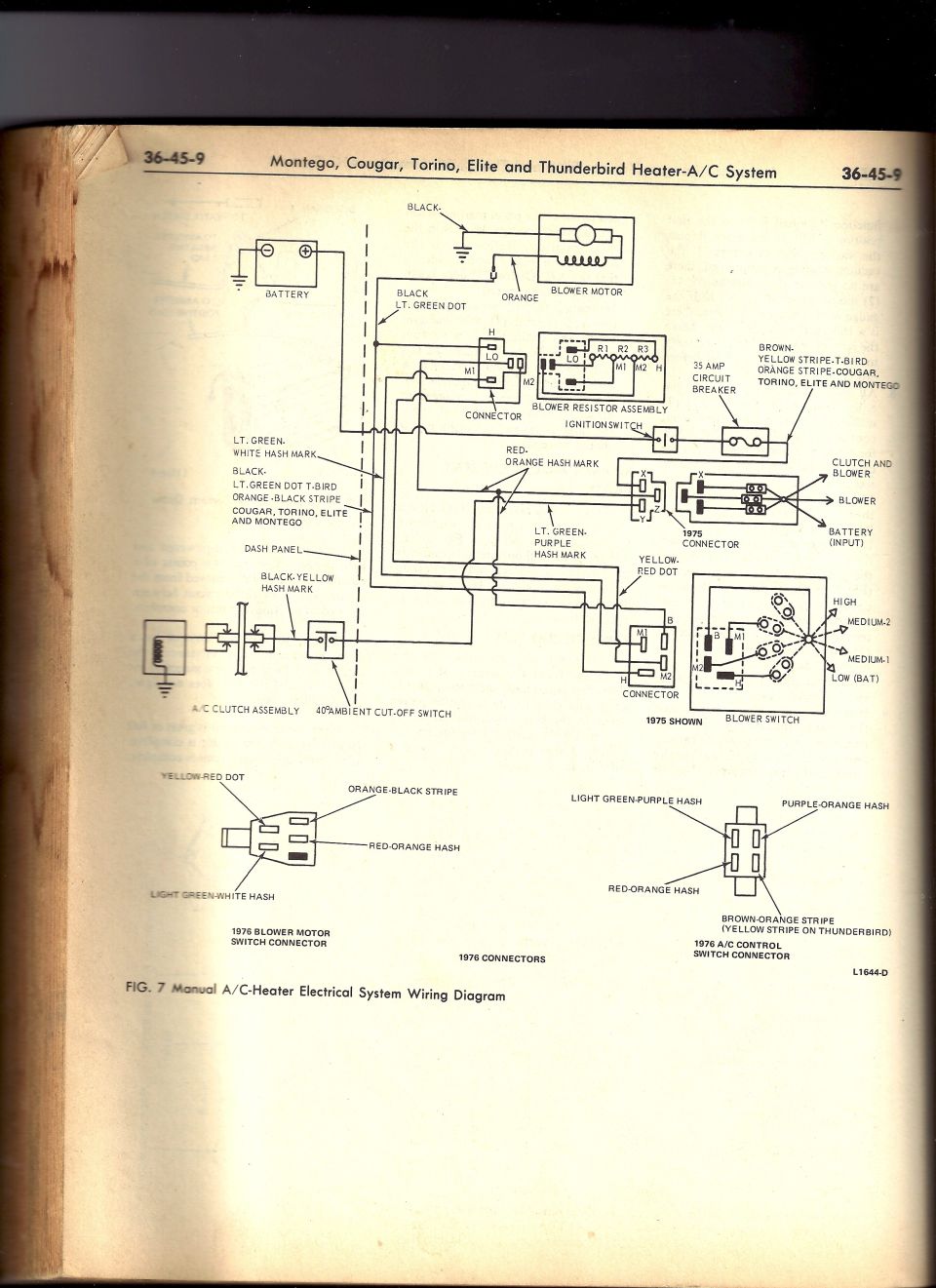

This is a scanned page (section 36-45-9) from a Ford factory shop manual showing FIG. 7, the Manual A/C-Heater Electrical System Wiring Diagram for the Mercury Montego and Cougar, Ford Torino, Elite, and Thunderbird. The schematic traces the heater/air-conditioning electrical circuit from the battery through the ignition switch and a 35-amp circuit breaker to the blower motor, blower resistor assembly (terminals LO, M1, M2, H with resistors R1-R3), blower switch (LOW/BAT, MEDIUM-1, MEDIUM-2, HIGH positions), A/C clutch assembly, and 40° ambient cut-off switch. Wire color codes are called out throughout, including Black, Orange, Black-Lt. Green Dot, Lt. Green-White Hash Mark, Red-Orange Hash Mark, Lt. Green-Purple Hash Mark, Yellow-Red Dot, and Black-Yellow Hash Mark, with model-specific notes (Brown-Yellow Stripe for T-Bird versus Orange Stripe for Cougar, Torino, Elite, and Montego). The main diagram depicts the 1975 configuration ("1975 SHOWN"), while separate pinout drawings at the bottom show the 1976 blower motor switch connector and 1976 A/C control switch connector with their wire colors. Diagram reference number L1644-D appears at lower right. A reader can use this page to trace blower and A/C clutch circuits and identify connector terminals and wire colors on these mid-1970s Ford/Mercury vehicles.
