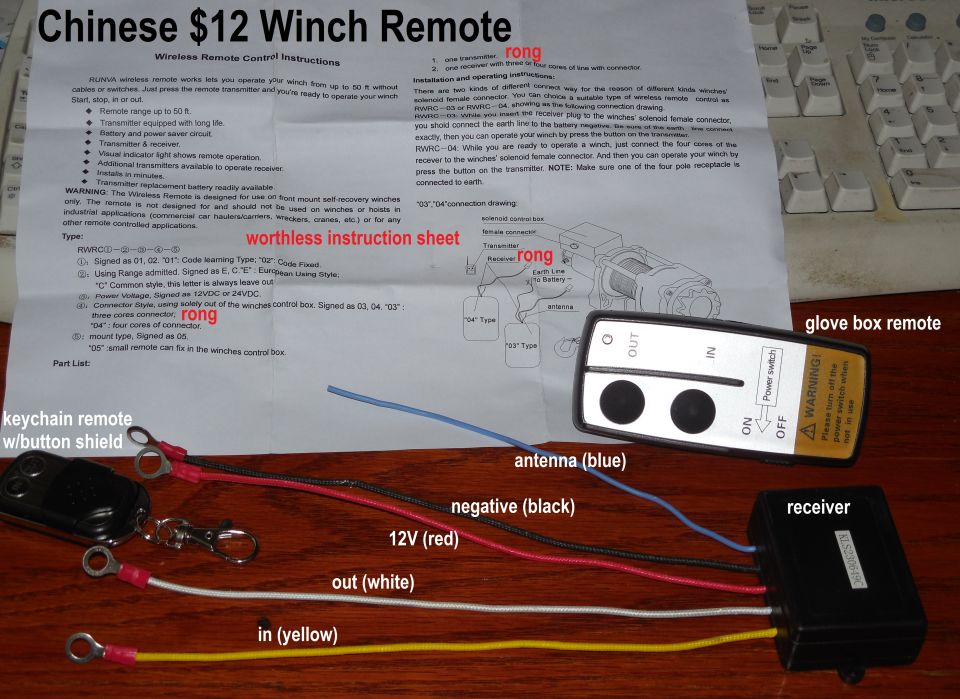

The diagrams on the other side are what applied to mine, but IDK why they put diagrams for 4 different systems on the same page. It took a while to arrive on the slow boat, but it seems to work fine.

I connected the red to a key-switched circuit so it won't work if the truck is OFF. Since I already added a dash switch, it was easy to install the receiver inside the cab, but it's intended to be installed outdoors.

I ended up putting the big remote on the passenger visor - not in the glove box. The keychain remote is in the glove box.
