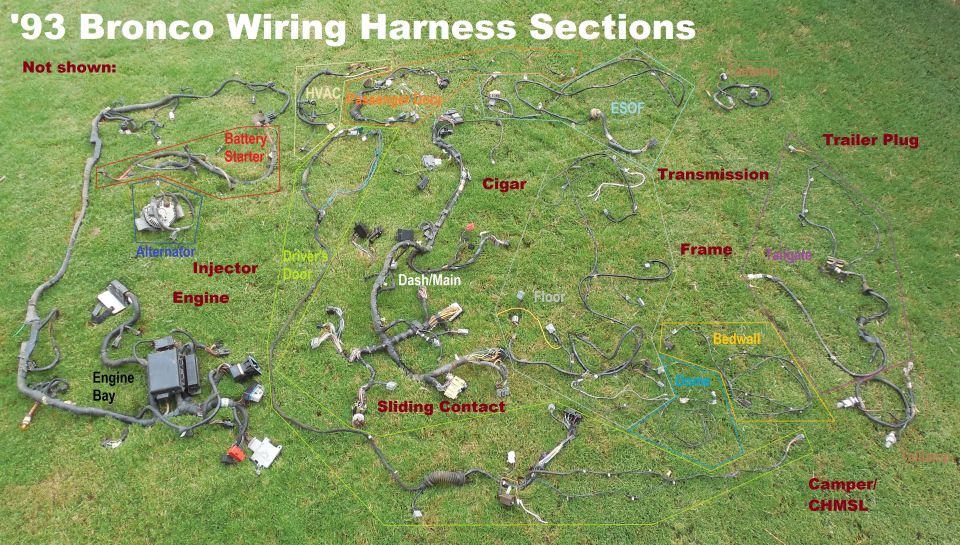

'93 Bronco XLT 5.8L E4OD Wiring Harness Sections
IF THE IMAGE IS TOO SMALL, click it.
The 8 missing sections are:
- engine
- injector
- transmission
- frame
- cigar/power point
- sliding contact (horn pad connection)
- camper/CHMSL
- trailer socket
'92 does not have 4WABS on the engine harness, and has a 2G alternator
'94-96 have a clock spring instead of sliding contact, and optionally add RKE/Theft(exc.'96) to the main/floor/doors, &/or overhead console
'96 adds OBD-II to the engine bay, engine, injector, & dash harnesses
See also:
MotorCraft 2016 Wiring Pigtail Guide
