What distributor was used on the 1972 351C-4V Torino with automatic transmission?

The 49-states 351C-4V automatic Torino used distributor D2ZF-GC, with centrifugal advance of 0-1/2° at 500 RPM up to 8-1/2-11° at 2000 RPM, and vacuum advance of 0-2-1/2° at 5 in. Hg rising to 6-1/2-9-1/2° at 10-20 in. Hg.

How is the distributor test stand set up for the centrifugal advance figures?

The test stand is set to 0° at 250 RPM and 0 inches Hg; advance is then read in degrees at 500, 750, 1000, 1500 and 2000 RPM.

What are the vacuum advance specs for the 351C-2V automatic (D2AF-KA) in Torino/Montego/Ford?

0-1° at 5 in. Hg, 2-1/2-5-1/2° at 10, 6-1/2-9-1/2° at 15, and 10-13° at 20 inches Hg (test stand set to 0° at 1000 RPM and 0 in. Hg).

What do the footnote symbols on the 429 and 460 rows mean?

① means "With 3.0 Axle" (460 D2VF-BA Mark IV) and ② means "All except Thunderbird" (429 D2MF-EA). M = Manual, A = Automatic transmission.

Are separate distributors listed for California cars?

Yes. The Distributor Number (12127) column is split into 49 States and Calif. versions; for example, the 200 CID manual uses D2DF-CA in 49 states and D2DF-EA in California.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/1041172

1972 Ford Distributor Specifications - Centrifugal & Vacuum Advance Curves

Ford Group 23 ignition distributor specifications table: centrifugal/vacuum advance by engine

‹ ›

Reference · 1972-1976 RancheroAll 40 data & spec plates

Reproduction 1978 Ford 351M/400 emission control decal D8OE-9C485-AF, 12°BTDC timing, catalyst

Worn Ford 351C vehicle emission control information decal with 16°BTDC timing and 1000 RPM idle

1972 Ford Distributor Specifications - 351C, 351W, 400, 429, 460 Advance Curves

1972 Ford Distributor Specifications Chart: Advance Curves by Engine & Model

1972 Ford Distributor Specifications Chart - Advance/Retard Curves All Engines

'78 Ford 351M/400 non-catalyst engine emission control label with timing and idle RPM table

'73 Ford 351C vehicle emission control information label with timing, idle and spark plug specs

1972 Ford Distributor Specifications - Centrifugal & Vacuum Advance Curves

1975 Ford Ranchero Door Jamb Data Plate - VIN, GVWR & Body/Trim Codes

Ford door data plate dated 09/71 with VIN 2A47H113664, body 97D and color 4P

Ford Motor Co. certification label on a door jamb beside a wasp nest

40data & spec plates1972-1976 Ford Ranchero More reference

Ford V8 Firing Order Diagram - 351W, 351C, 302 HO & Other V8 Cylinder Numbers

Manual page

CAR CRAFT January 1962 magazine cover featuring a custom yellow car

Brochure

Exploded parts

Ford 351 Cleveland V8 Oiling System Diagram - Oil Flow Sketch (Mains, Cam, Lifters)

Schematic

Blueprint

Ford 351C Cleveland Head Gasket Modification - 5/32 Hole Drilling Diagram

Service procedure

Ford Fuel Pump Relay Connector Pinout - Wire Colors & Pin Functions

Wiring diagram

Engine spec table for Ford, Lincoln, Mercury passenger and truck 6 and V6 engines by displacement and year

Torque spec

Ford ignition-system distributor specification chart listing distributor part numbers and centrifugal/vacuum advance values by engine (200-460 CID) and application (Pinto, Maverick, Mustang, Torino).

Part of 1972-1976 Ford Ranchero Data & Spec Plates

AI caption November 2014 · Photo 953 of 1000

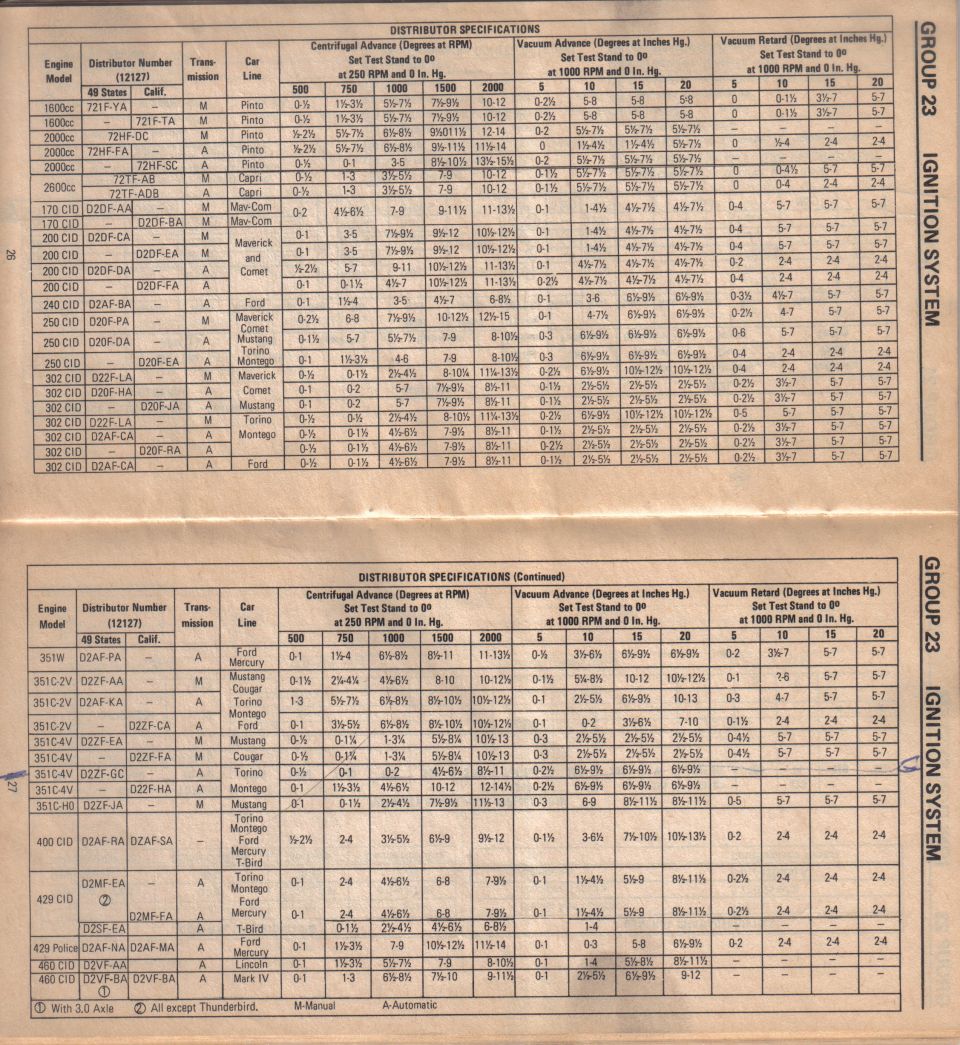

This two-page scan (pages 26-27, Group 23, Ignition System) presents Ford factory distributor specifications tables for the 1972 model year (all distributor part numbers carry the D2 prefix, indicating 1972). Each row lists an engine (1600cc, 2000cc, 2600cc, 170, 200, 240, 250, 302, 351W, 351C-2V, 351C-4V, 351C-HO, 400, 429, 429 Police, 460), the distributor part number (basic part 12127) for 49-state and California applications, transmission type (M-Manual, A-Automatic), and applicable car lines (Pinto, Capri, Maverick, Comet, Mustang, Cougar, Torino, Montego, Ford, Mercury, T-Bird, Lincoln, Mark IV). For each distributor, three test-stand curves are given: centrifugal advance in degrees at 500, 750, 1000, 1500 and 2000 RPM (test stand set to 0° at 250 RPM and 0 in. Hg); vacuum advance in degrees at 5, 10, 15 and 20 inches of mercury (set at 1000 RPM, 0 in. Hg); and vacuum retard in degrees at the same vacuum points. Footnotes note the D2VF-BA 460 distributor applies with a 3.0 axle and the D2MF-EA 429 covers all except Thunderbird. A mechanic can use this to verify or recurve a 1972 Ford distributor on a distributor test machine.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What distributor was used on the 1972 351C-4V Torino with automatic transmission?: The 49-states 351C-4V automatic Torino used distributor D2ZF-GC, with centrifugal advance of 0-1/2° at 500 RPM up to 8-1/2-11° at 2000 RPM, and vacuum advance of 0-2-1/2° at 5 in. Hg rising to 6-1/2-9-1/2° at 10-20 in. Hg.
How is the distributor test stand set up for the centrifugal advance figures?: The test stand is set to 0° at 250 RPM and 0 inches Hg; advance is then read in degrees at 500, 750, 1000, 1500 and 2000 RPM.
What are the vacuum advance specs for the 351C-2V automatic (D2AF-KA) in Torino/Montego/Ford?: 0-1° at 5 in. Hg, 2-1/2-5-1/2° at 10, 6-1/2-9-1/2° at 15, and 10-13° at 20 inches Hg (test stand set to 0° at 1000 RPM and 0 in. Hg).
What do the footnote symbols on the 429 and 460 rows mean?: ① means "With 3.0 Axle" (460 D2VF-BA Mark IV) and ② means "All except Thunderbird" (429 D2MF-EA). M = Manual, A = Automatic transmission.
Are separate distributors listed for California cars?: Yes. The Distributor Number (12127) column is split into 49 States and Calif. versions; for example, the 200 CID manual uses D2DF-CA in 49 states and D2DF-EA in California.
