Ford Fuel Pump Relay Connector Pinout - Wire Colors & Pin Functions

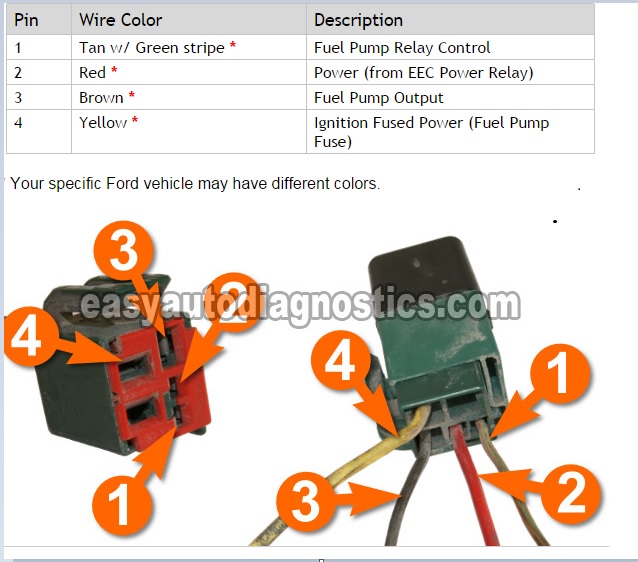

This document is a fuel pump relay connector pinout reference for Ford vehicles, sourced from easyautodiagnostics.com. It consists of a four-row table identifying each pin of the fuel pump relay connector by number, wire color, and circuit function: Pin 1 is Tan with a Green stripe for Fuel Pump Relay Control; Pin 2 is Red for Power from the EEC Power Relay; Pin 3 is Brown for Fuel Pump Output; and Pin 4 is Yellow for Ignition Fused Power via the Fuel Pump Fuse. A note cautions that the reader's specific Ford vehicle may have different wire colors. Below the table are two annotated photographs: on the left, the relay's red/green connector socket with numbered orange callouts (1-4) identifying each terminal cavity; on the right, the relay itself plugged into its green connector with the same numbered callouts pointing to the corresponding wires (yellow, gray/brown, red, tan). This reference helps a reader locate and test each circuit at the fuel pump relay connector, such as verifying ignition power, EEC power relay output, relay control signal, and the output wire feeding the fuel pump.
