What distributor is used on a 1972 250 CID with automatic transmission (49-state)?

Distributor D2OF-DA (basic part 12127), used in Maverick, Comet, Mustang, Torino, and Montego applications.

What is the centrifugal advance spec for the 302 CID D22F-LA distributor (Maverick/Comet/Mustang, manual)?

0-1/2° at 500 RPM, 0-1 1/2° at 750, 2 1/2-4 1/2° at 1000, 8-10 1/4° at 1500, and 11 1/4-13 1/2° at 2000 RPM, with the test stand set to 0° at 250 RPM and 0 in. Hg.

How are the vacuum advance figures measured in this chart?

Vacuum advance is given in degrees at 5, 10, 15, and 20 inches Hg, with the test stand set to 0° at 1000 RPM and 0 in. Hg.

Do California cars use different distributors than 49-state cars?

Yes. The chart lists separate distributor numbers for 49 States and California, for example, the 1600cc Pinto manual uses 721F-YA (49 states) or 721F-TA (California).

What vacuum retard does the 240 CID D2AF-BA automatic (Ford) distributor show?

0-3 1/2° at 5 in. Hg, 4 1/2-7° at 10, 5-7° at 15, and 5-7° at 20 inches Hg.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/752163

1972 Ford Distributor Specifications Chart: Advance Curves by Engine & Model

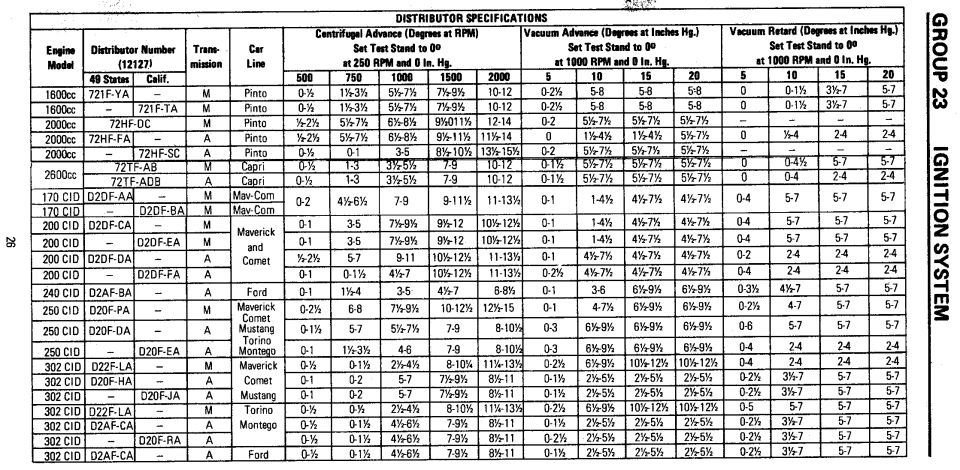

Ford Group 23 distributor specifications chart for Pinto, Maverick and Comet engines

‹ ›

Reference · 1972-1976 RancheroAll 40 data & spec plates

Reproduction 1978 Ford 351M/400 emission control decal D8OE-9C485-AF, 12°BTDC timing, catalyst

Worn Ford 351C vehicle emission control information decal with 16°BTDC timing and 1000 RPM idle

1972 Ford Distributor Specifications - 351C, 351W, 400, 429, 460 Advance Curves

1972 Ford Distributor Specifications Chart: Advance Curves by Engine & Model

1972 Ford Distributor Specifications Chart - Advance/Retard Curves All Engines

'78 Ford 351M/400 non-catalyst engine emission control label with timing and idle RPM table

'73 Ford 351C vehicle emission control information label with timing, idle and spark plug specs

1972 Ford Distributor Specifications - Centrifugal & Vacuum Advance Curves

1975 Ford Ranchero Door Jamb Data Plate - VIN, GVWR & Body/Trim Codes

Ford door data plate dated 09/71 with VIN 2A47H113664, body 97D and color 4P

Ford Motor Co. certification label on a door jamb beside a wasp nest

40data & spec plates1972-1976 Ford Ranchero More reference

Ford V8 Firing Order Diagram - 351W, 351C, 302 HO & Other V8 Cylinder Numbers

Manual page

CAR CRAFT January 1962 magazine cover featuring a custom yellow car

Brochure

Exploded parts

Ford 351 Cleveland V8 Oiling System Diagram - Oil Flow Sketch (Mains, Cam, Lifters)

Schematic

Blueprint

Ford 351C Cleveland Head Gasket Modification - 5/32 Hole Drilling Diagram

Service procedure

Ford Fuel Pump Relay Connector Pinout - Wire Colors & Pin Functions

Wiring diagram

Engine spec table for Ford, Lincoln, Mercury passenger and truck 6 and V6 engines by displacement and year

Torque spec

Ford Group 23 ignition distributor specification table: distributor numbers, transmission and car line, centrifugal advance at 500-2000 RPM, and vacuum advance/retard for 1600cc-302 CID engines.

Part of 1972-1976 Ford Ranchero Data & Spec Plates

AI caption August 2009 · Photo 483 of 1000

This document is page 26 from a Ford service specifications manual, Group 23, Ignition System, presenting a 'Distributor Specifications' table for 1972-era Ford/Mercury vehicles. It lists engine models from 1600cc, 2000cc, and 2600cc (Pinto and Capri) through 170, 200, 240, 250, and 302 CID engines used in Maverick, Comet, Mustang, Torino, Montego, and full-size Ford car lines. For each engine, the table gives distributor part numbers (basic part 12127) split by 49-state and California emissions calibrations (e.g., 721F-YA, 72HF-DC, D2DF-AA, D2OF-PA, D22F-LA, D2AF-CA), transmission type (manual or automatic), and detailed distributor test-stand curves: centrifugal advance in degrees at 500, 750, 1000, 1500, and 2000 RPM (set to 0° at 250 RPM and 0 in. Hg); vacuum advance in degrees at 5, 10, 15, and 20 inches Hg; and vacuum retard in degrees at the same vacuum points (both set to 0° at 1000 RPM and 0 in. Hg). A reader can identify the correct distributor for a given engine/transmission/emissions combination and verify or recurve advance mechanisms against factory specifications.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What distributor is used on a 1972 250 CID with automatic transmission (49-state)?: Distributor D2OF-DA (basic part 12127), used in Maverick, Comet, Mustang, Torino, and Montego applications.
What is the centrifugal advance spec for the 302 CID D22F-LA distributor (Maverick/Comet/Mustang, manual)?: 0-1/2° at 500 RPM, 0-1 1/2° at 750, 2 1/2-4 1/2° at 1000, 8-10 1/4° at 1500, and 11 1/4-13 1/2° at 2000 RPM, with the test stand set to 0° at 250 RPM and 0 in. Hg.
How are the vacuum advance figures measured in this chart?: Vacuum advance is given in degrees at 5, 10, 15, and 20 inches Hg, with the test stand set to 0° at 1000 RPM and 0 in. Hg.
Do California cars use different distributors than 49-state cars?: Yes. The chart lists separate distributor numbers for 49 States and California, for example, the 1600cc Pinto manual uses 721F-YA (49 states) or 721F-TA (California).
What vacuum retard does the 240 CID D2AF-BA automatic (Ford) distributor show?: 0-3 1/2° at 5 in. Hg, 4 1/2-7° at 10, 5-7° at 15, and 5-7° at 20 inches Hg.
