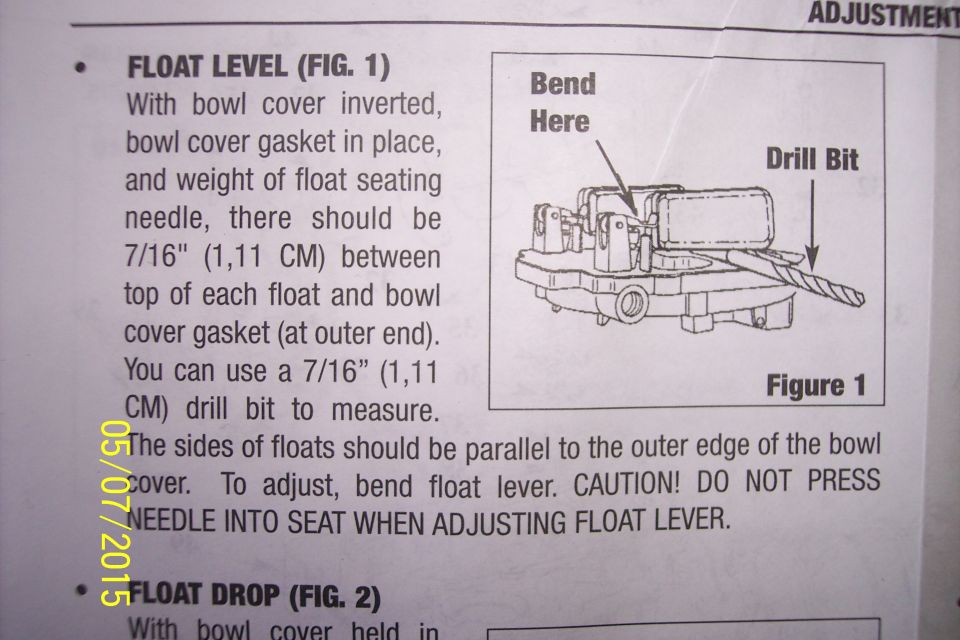

Diagram showing how to adjust carburetor float level with a dril…

o FLOAT LEVEL (FIG. 1) With bowl cover inverted, bowl cover gasket in place, . Drill Bit and weight of float seating needle, there should be 7/16 (1,11 CM) between top of each float and bowl cover gasket (at outer end). You can use a 7/16 (1,11 Figure 1 CM) drill bit to measure. ahe sides of floats should be parallel to the outer edge of the bowl " ' To adjust, bend float lever. CAUTION! DO NOT PRESS NTO SEAT WHEN ADJUSTING FLOAT LEVER.
