1973/79 Ford Truck Series 100/500 part-time transfer case gearsh…

1973/79 Ford Truck Series 100/500 part-time transfer case gearshift exploded view with part numbers
1973/79 Ford Truck Series 100/500 part-time transfer case gearshift exploded view with part numbersOriginal file
1973/79 Ford Truck Series 100/500 part-time transfer case gearshift exploded view with part numbers

Reference · 1973-1979 F-250All 5 exploded parts diagrams

Ford truck tail lamp and rear wiring exploded view with part numbers, with and without bumper 1973/79 Ford Truck Series 100/500 part-time transfer case gearshift exploded view with part numbers Ford truck headlamp, parking lamp and side marker exploded view with part numbers Ford truck door glass, vent window, weatherstrip and window regulator exploded view with part numbers '78-79 Ford truck grille insert D8TZ-8150-A and chrome outer grille shell D8TZ-8200-A 5exploded parts diagrams1973-1979 Ford F-250 More reference Kmart Doorbusters circular back page, sale ends Saturday, January 29Brochure Weathered embossed Ford truck data plate with CUS and CAB codes, screwed to the bodySpec plate Ford 360 FE V8 Firing Order Diagram - Distributor Cap Wiring & Timing MarksSchematic Ford camper loading guide in a binder with a truck and camper center of gravity diagram and dimension tableManual page Carburetor float level adjustment instructions using a 7/16" drill bit as a gaugeService procedure

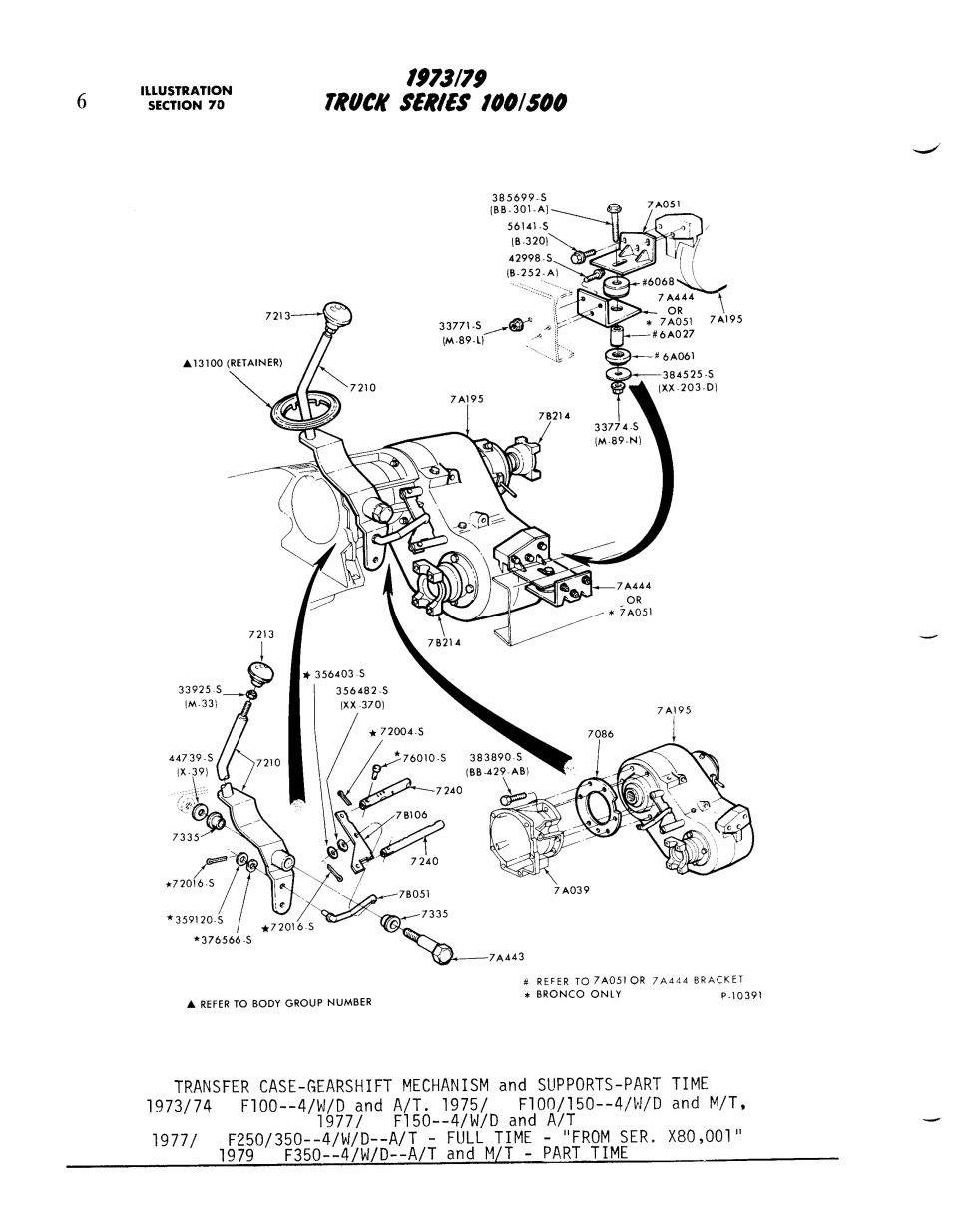

Exploded view of the 1973-1979 Ford truck part-time transfer case gearshift mechanism and supports with part numbers, including Bronco-only parts.

Part of 1973-1979 Ford F-250 Exploded Parts Diagrams
