Added a under hood fuse box in order to eliminate the fusible li…

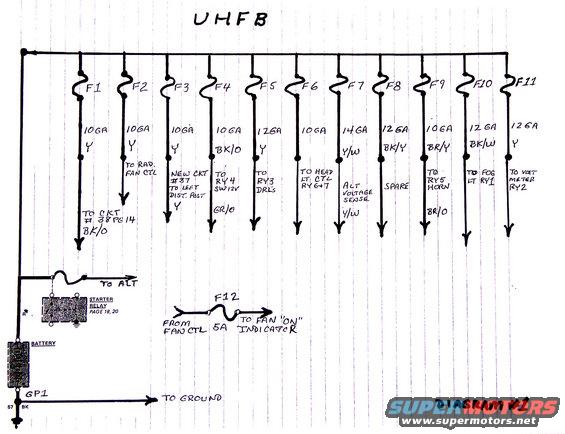

Added a under hood fuse box in order to eliminate the fusible links that when they fail are hard to find and replace. They also are the cause of electrical fires so this eliminates that possibility also.
Added a under hood fuse box in order to eliminate the fusible links that when they fail are hard to find and replace. They also are the cause of electrical fires so this eliminates that possibility also.Original file
Added a under hood fuse box in order to eliminate the fusible links that when they fail are hard to find and replace. They also are the cause of electrical fires so this eliminates that possibility also.

Electrical Modification DiagramsView all 15
