Ford charge power distribution wiring diagram for gasoline engin…

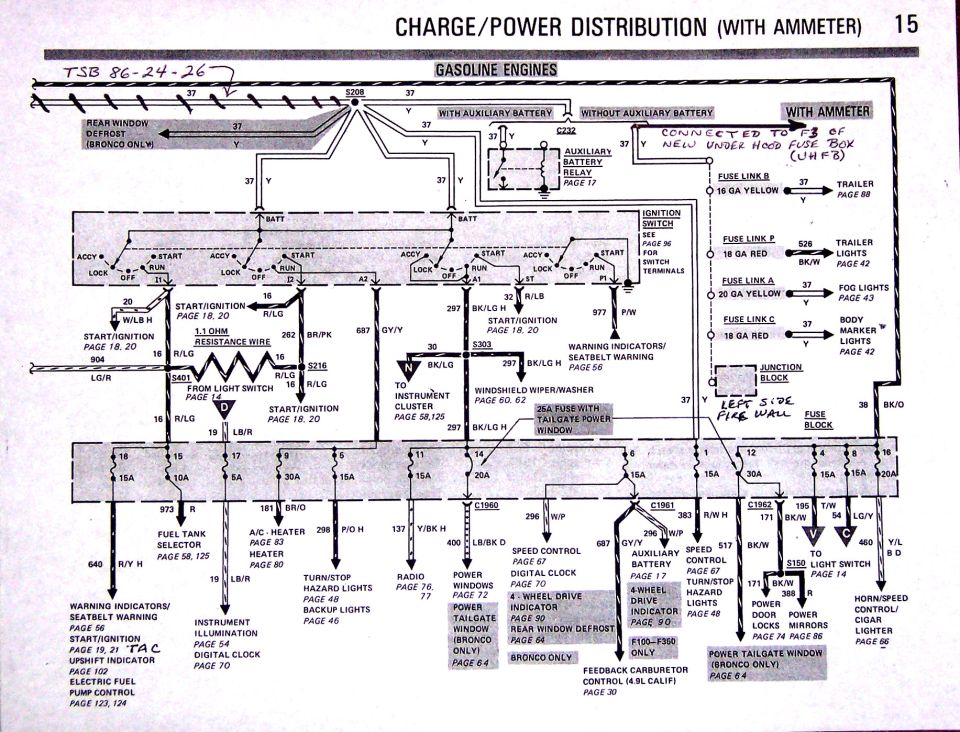

Ford charge power distribution wiring diagram for gasoline engines

The wiring of the fuse panel feed done per Tec. Service Bulletin 86-24-26. Removed the feed that often caused ignition static in the radio. Rerouted feed connected to Fuse 3 of the new Under Hood Fuse box.

Owner caption · Photo 326 of 336
