1996 Ford Bronco VSS and TFT Sensor document

1996 Ford Bronco VSS and TFT Sensor document
1996 Ford Bronco VSS and TFT Sensor documentOriginal file
1996 Ford Bronco VSS and TFT Sensor document

'96 Powertrain ManualView all 11

Ford 5.0L/5.8L MFI in-vehicle service parts list, items 1-74, with Ford part numbers Exploded view of external engine components for a 5.8L MFI engine with numbered callouts Ford 5.0L/5.8L MFI in-vehicle service parts list, items 75-115, with Ford part numbers Ford 5.0L 5.8L MFI in-vehicle service part number list valvetrain and crankshaft Exploded view of internal engine components for a 5.8L MFI engine with numbered part table 1996 Ford Bronco photo E4OD service page 07-01A-86 with TFT sensor resistance chart, solenoid and EPC tests E4OD 12-way connector pinout with EPC and TCC solenoid descriptions, page 07-01A-30 1996 Ford Bronco VSS and TFT Sensor document 1996 F-Series and Bronco manual page 00-01-8 on VIN check digit, model year and plant codes Ford TFI closed-bowl distributor exploded parts diagram with Hall-effect stator, removal and installation 11photos in this albumView all

Photos of other 1992-1996 Broncos132,788 photos of 1992-1996 Broncos

close-up of vehicle steering linkage and suspension components 1992 Ford Bronco photo 1996 Ford Bronco interior showing steering wheel, dashboard, and passenger seat Tigger from Winnie the Pooh cartoon waving, with "Wooh there SUPER MOTORS" text below Dark green Ford Bronco with chrome grille and wheels, lifted suspension, parked on grass Blue and silver lifted Ford Bronco SUV in driveway with a child in cowboy hat standing beside it 132,788photos in this generation1992-1996 Bronco

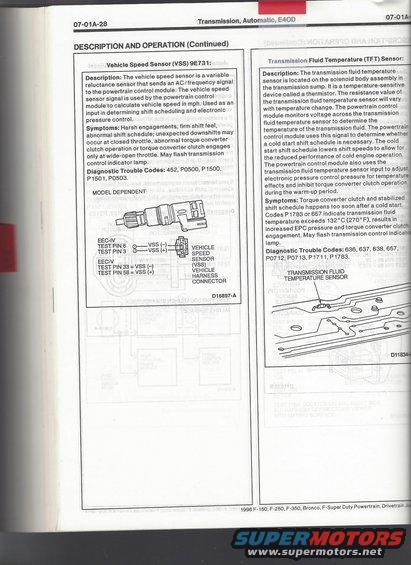

This document contains information about the Vehicle Speed Sensor (VSS) and Transmission Fluid Temperature (TFT) Sensor for a 1996 Ford F-150, F-250, F-350, Bronco, F-Super Duty Powertrain, Drivetrain.
