What is the Ford part number for the EGR valve on 1996 California and 49-state trucks under 8500 lbs GVW?

Item 10, part number 9D475, is the EGR Valve for California and 49 States under 3864 kg (8500 lbs.) GVW.

What part number is the water pump in this parts list?

Item 65, part number 8501, is the Water Pump; the water pump pulley is item 64, part 8509, and the water pump housing gasket is item 61, part 8507.

Which vehicles does this parts legend apply to?

The footer states it is from the 1996 F-150, F-250, F-350, Bronco, F-Super Duty Powertrain, Drivetrain manual, dated July 1995.

What are the oil pan and drain plug part numbers?

Oil Pan is item 52, part 6675; Oil Pan Drain Plug is item 54, part 6730; the drain plug gasket is item 53, part 6734; and the oil pan gasket is item 57, part 6710.

What is the misfire sensor part number?

Item 71, part number 6C365, is the Misfire Sensor.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/888329

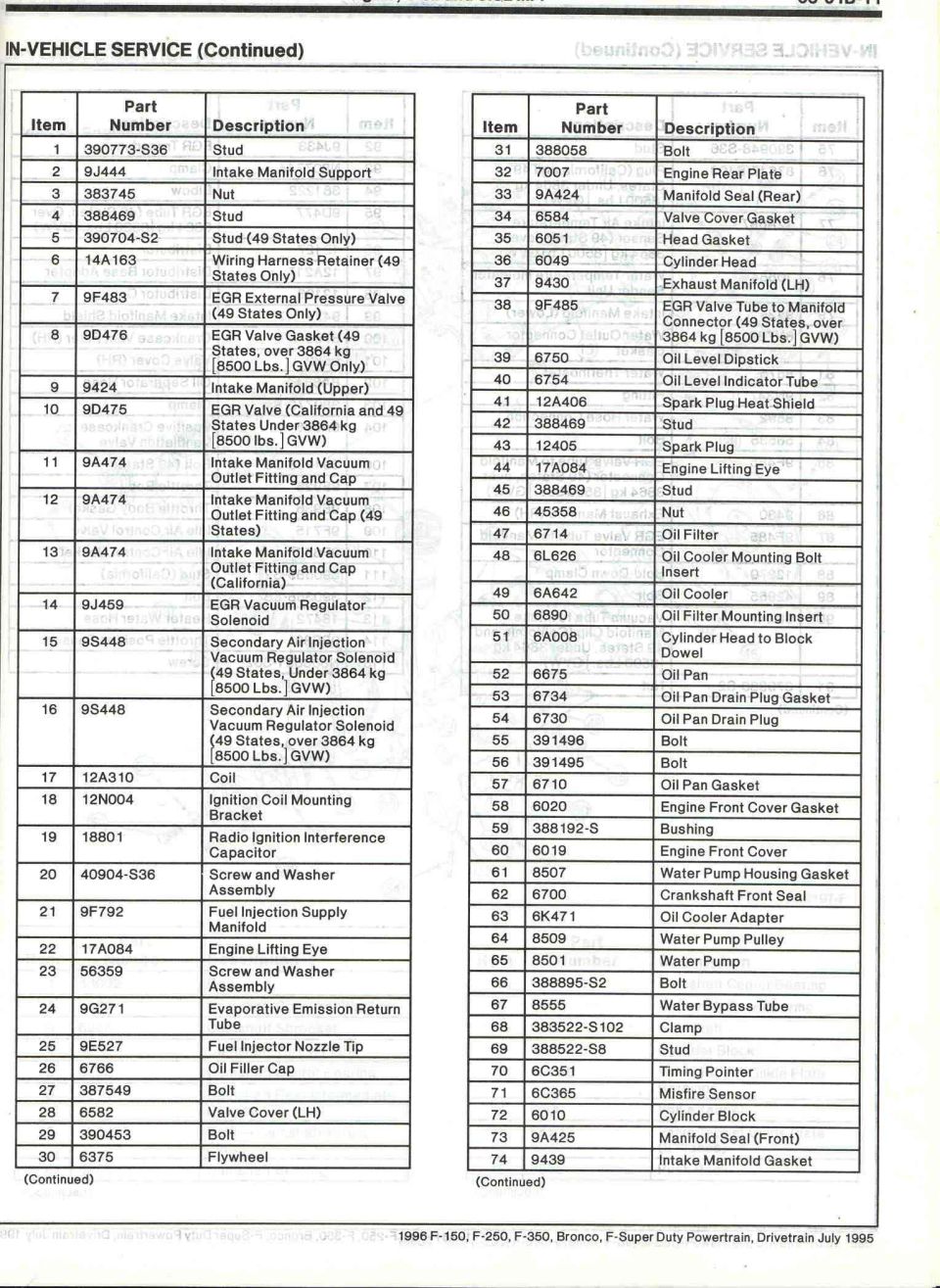

1996 Ford Bronco/F-Series 5.8L Engine Parts List - Items 1-74 (03-01B-11)

Ford 5.0L/5.8L MFI in-vehicle service parts list, items 1-74, with Ford part numbers

‹ ›

Ford shop-manual parts table for 5.0L/5.8L MFI V8 in-vehicle service: intake manifold, EGR, gaskets and fasteners keyed to Ford part numbers (e.g. 9424 upper intake, 6049 cylinder head).

AI caption September 2011 · Photo 29 of 413

This is a page from the 1996 Ford factory Powertrain/Drivetrain service manual (dated July 1995) covering the F-150, F-250, F-350, Bronco, and F-Super Duty, in the 'In-Vehicle Service (Continued)' section. The page is a two-column parts legend listing items 1 through 74 that correspond to an exploded engine components illustration (5.8L engine, per the album context, section 03-01B). Each row gives an item number, Ford base part number, and description. Listed components include intake manifold parts (upper intake manifold 9424, gasket 9439, supports, seals), EGR system parts (EGR valve 9D475, gasket 9D476, vacuum regulator solenoid 9J459, valve tube connector 9F485), ignition components (coil 12A310, bracket 12N004, spark plug 12405, heat shield 12A406, misfire sensor 6C365), fuel injection supply manifold 9F792 and injector nozzle tip 9E527, oil system parts (oil pan 6675, drain plug 6730, oil filter 6714, oil cooler 6A642, dipstick 6750), cooling parts (water pump 8501, pulley 8509, bypass tube 8555), plus cylinder head 6049, head gasket 6051, cylinder block 6010, flywheel 6375, and various studs, bolts, nuts, and clamps. Several entries distinguish 49-state versus California emissions parts and over/under 3864 kg (8500 lb) GVW applications.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the Ford part number for the EGR valve on 1996 California and 49-state trucks under 8500 lbs GVW?: Item 10, part number 9D475, is the EGR Valve for California and 49 States under 3864 kg (8500 lbs.) GVW.
What part number is the water pump in this parts list?: Item 65, part number 8501, is the Water Pump; the water pump pulley is item 64, part 8509, and the water pump housing gasket is item 61, part 8507.
Which vehicles does this parts legend apply to?: The footer states it is from the 1996 F-150, F-250, F-350, Bronco, F-Super Duty Powertrain, Drivetrain manual, dated July 1995.
What are the oil pan and drain plug part numbers?: Oil Pan is item 52, part 6675; Oil Pan Drain Plug is item 54, part 6730; the drain plug gasket is item 53, part 6734; and the oil pan gasket is item 57, part 6710.
What is the misfire sensor part number?: Item 71, part number 6C365, is the Misfire Sensor.
