1996 Ford Bronco/F-150 5.0L 5.8L Engine Parts List & Valve Cover Removal 03-01B-14
Reference · 1992-1996 BroncoAll 169 exploded parts diagrams
Ford 1996 F-150/F-250/F-350 5.0L and 5.8L MFI in-vehicle service parts index (items 17-72): rocker arms, valve springs, crankshaft bearings, oil pump and main bearing cap bolts with part numbers.
Part of 1992-1996 Ford Bronco Exploded Parts Diagrams

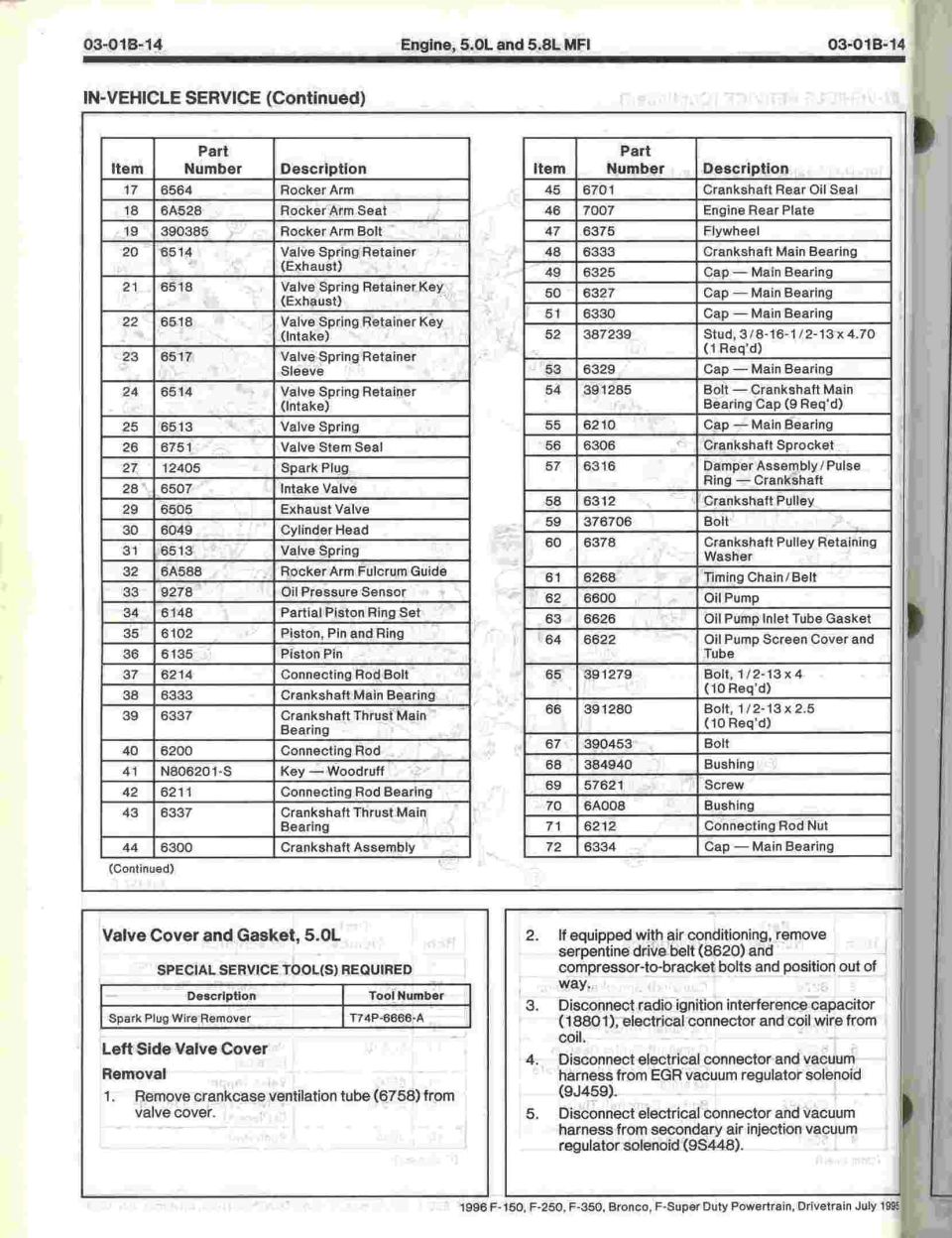

This is page 03-01B-14 from the 1996 Ford F-150/F-250/F-350/Bronco/F-Super Duty Powertrain/Drivetrain service manual (dated July 1995), covering the 5.0L and 5.8L MFI engines under the 'In-Vehicle Service (Continued)' section. The page contains a parts legend (items 17 through 72) keyed to an exploded engine components diagram found on earlier pages, listing base part numbers and descriptions for major bottom-end and valvetrain components: rocker arms, valve springs, retainers and keys, valve stem seals, spark plugs, intake and exhaust valves, cylinder head, pistons, piston pins, ring sets, connecting rods and bearings, crankshaft assembly, main bearings and caps, main bearing cap bolts, flywheel, crankshaft sprocket, damper/pulse ring, crankshaft pulley, timing chain, and oil pump components with fastener sizes and quantities. The lower portion begins the 'Valve Cover and Gasket, 5.0L' procedure, listing the required special service tool (Spark Plug Wire Remover, T74P-6666-A) and the first five steps of Left Side Valve Cover removal, including removing the crankcase ventilation tube, serpentine belt (if A/C equipped), and disconnecting the radio ignition interference capacitor, EGR vacuum regulator solenoid, and secondary air injection vacuum regulator solenoid connections.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What is the Ford part number for the crankshaft main bearing on the 5.0L/5.8L engine?
- Item 38 and 48 list the Crankshaft Main Bearing as part number 6333; the Crankshaft Thrust Main Bearing (items 39 and 43) is 6337.
- How many crankshaft main bearing cap bolts does the 5.0L/5.8L use?
- Item 54, Bolt, Crankshaft Main Bearing Cap (part 391285), is listed as 9 required.
- What special tool is required for the 5.0L valve cover and gasket procedure?
- A Spark Plug Wire Remover, tool number T74P-6666-A.
- What are the first steps to remove the left side valve cover on the 5.0L?
- 1) Remove the crankcase ventilation tube (6758) from the valve cover; 2) if equipped with A/C, remove the serpentine drive belt (8620) and compressor-to-bracket bolts; 3) disconnect the radio ignition interference capacitor (18801), electrical connector and coil wire from the coil; 4) disconnect the EGR vacuum regulator solenoid (9J459) connector and vacuum harness; 5) disconnect the secondary air injection vacuum regulator solenoid (9S448) connector and vacuum harness.
- What part numbers are shown for the oil pump components?
- Oil Pump 6600 (item 62), Oil Pump Inlet Tube Gasket 6626 (item 63), and Oil Pump Screen Cover and Tube 6622 (item 64).
