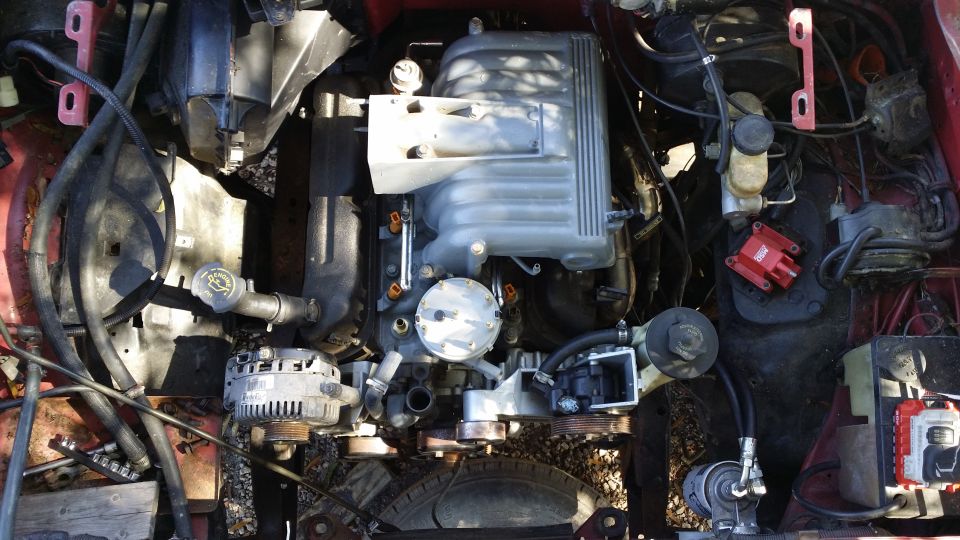

New home for the 5.0. Explorer intake. You can see where I mounted the oil filter in this shot. Where it is mounted is where the charcoal canister used to be. The hoses were provided in the kit but I took it a step farther and had hydraulic fittings crimped to the ends to help clean the look up some.

Owner caption February 2017 · Photo 4 of 11
