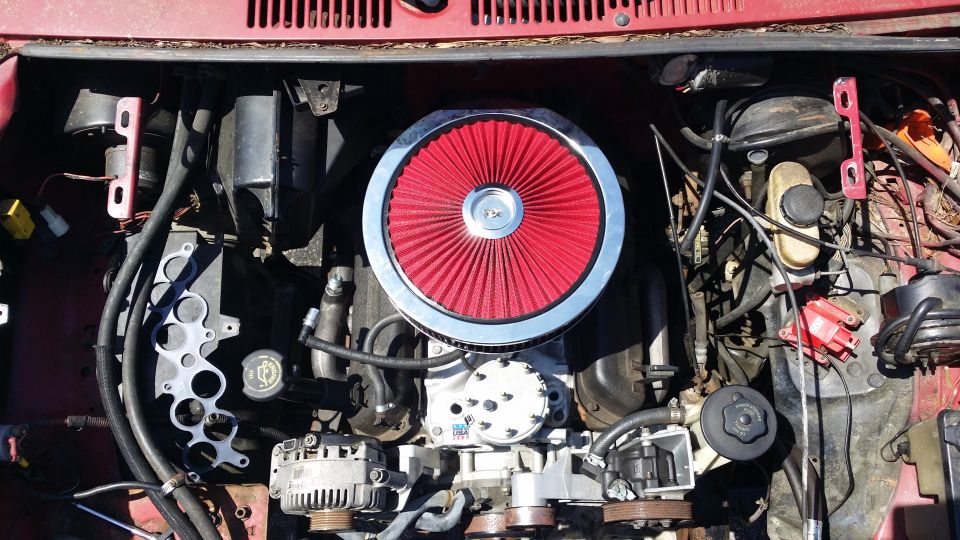

Snazzy new air cleaner. You can see the later model exhaust manifolds in this picture. It cleans up the look and brings in the driver manifold close to the cylinder head A LOT. With the factory tube manifolds it came very close to hitting the steering shaft; got a couple inches of clearance now.

Owner caption February 2017 · Photo 6 of 11
