Document with instructions for stator cooler flow air test and p…

‹ ›

4R70W Reprogramming Kit - Transgo AODE-HD2View all 8

TransGo AODE-HD2 Reprogramming Kit instruction cover for 1992-2011 AODE, 4R70/75W and 4R70/75E

Transmission repair document with instructions on fluid level, 4th band, and OD servos.

Step-by-step transmission 2nd accumulator rebuild instructions with part figures

Valve body separator plate hole-size service instructions with drill figure

Transmission valve body diagram with rebuild instructions

Diagram showing steps for installing parts in an automatic transmission valve body.

EPC relief valve install steps with drilled bottom plate, purple spring, valve and bracket

8photos in this albumView all

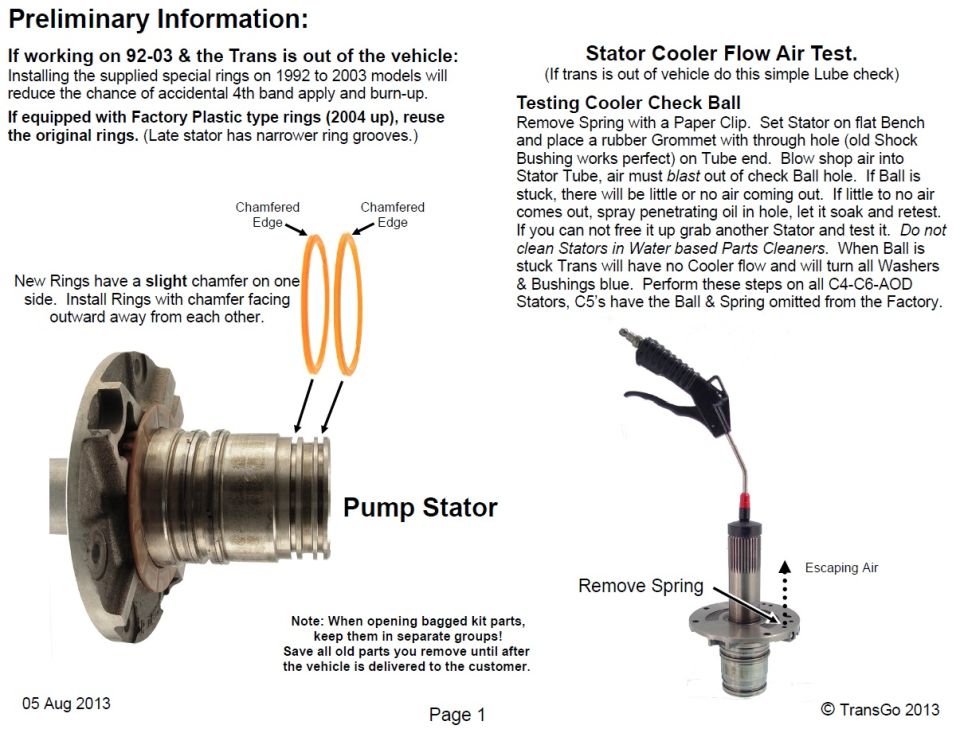

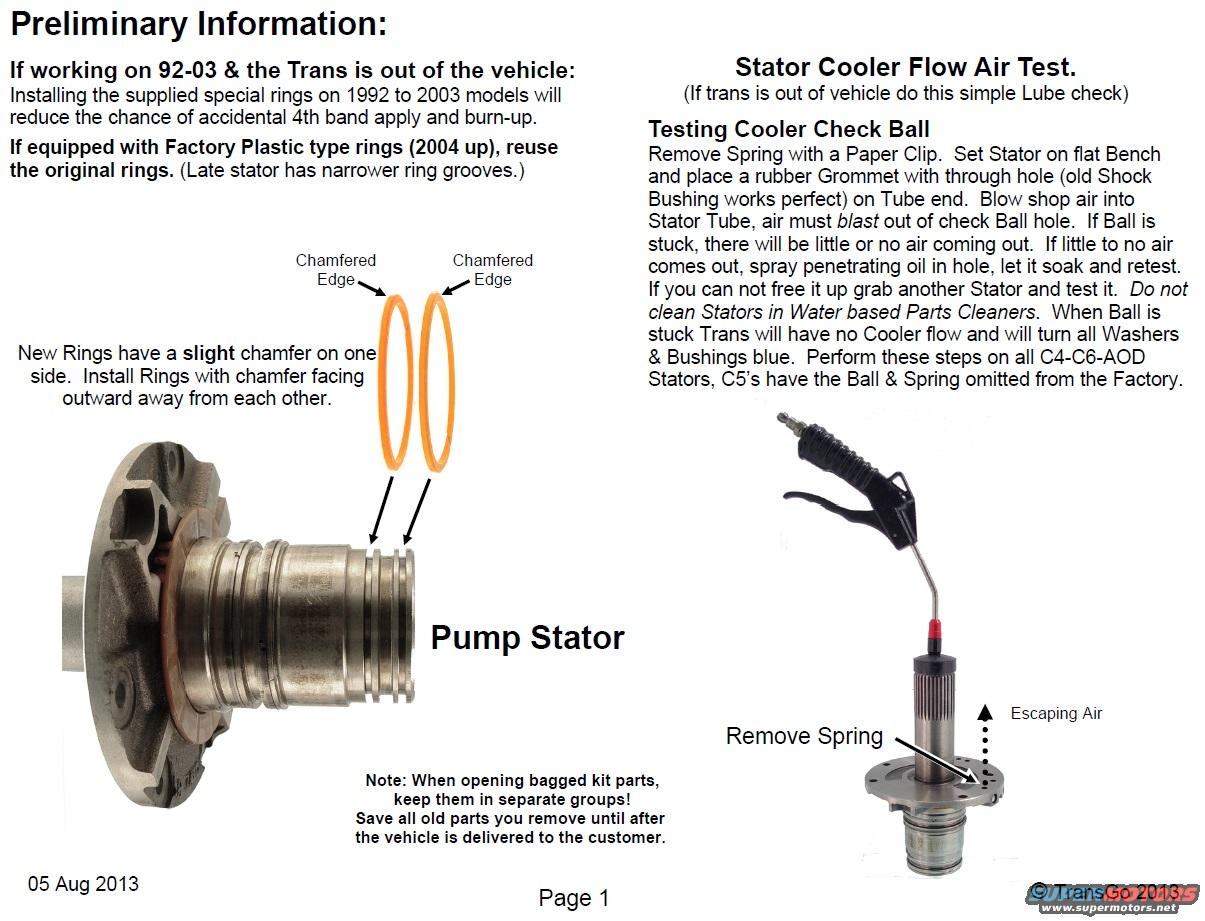

This document provides preliminary information and instructions for a stator cooler flow air test, including details on installing new rings and testing the cooler check ball. It also shows a diagram of a pump stator and a diagram illustrating the air test procedure.
