Diagram showing steps for installing parts in an automatic trans…
4R70W Reprogramming Kit - Transgo AODE-HD2View all 8

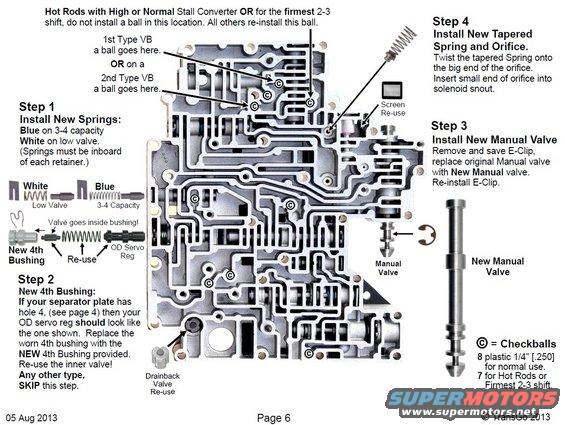

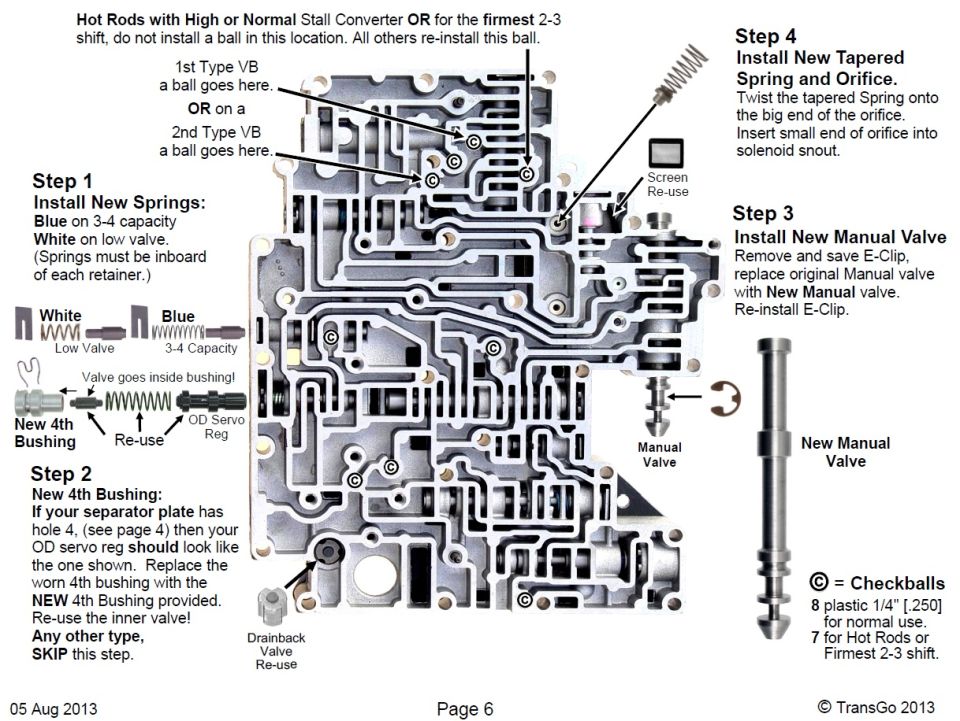

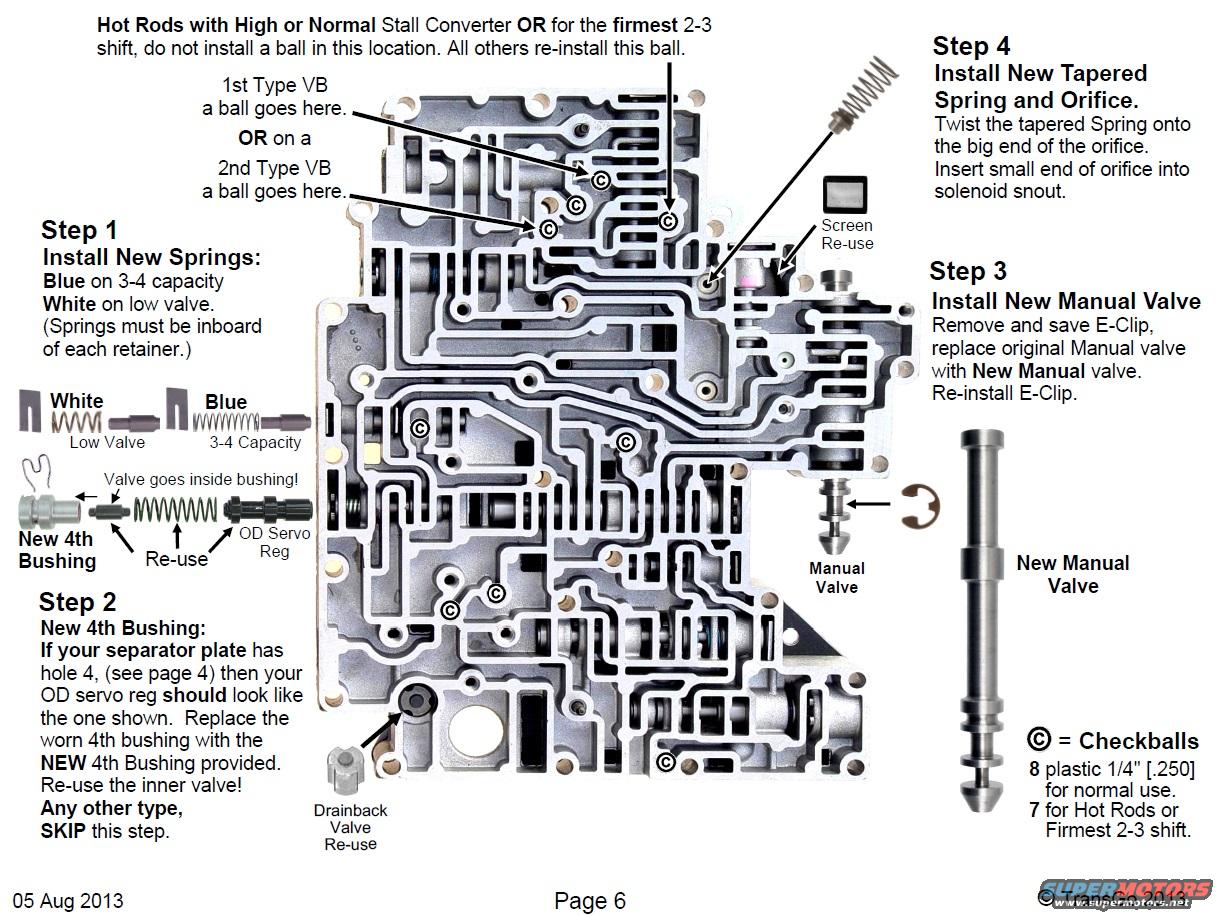

This is a diagram illustrating the installation of parts in an automatic transmission valve body. It shows steps for installing new springs, a new 4th bushing, a new manual valve, and a new tapered spring and orifice. The diagram also includes labels for specific components like the 1st Type VB, 2nd Type VB, OD Servo Reg, Drainback Valve, and Checkballs.
