'69-72 Bronco front door window mechanism exploded parts breakdo…

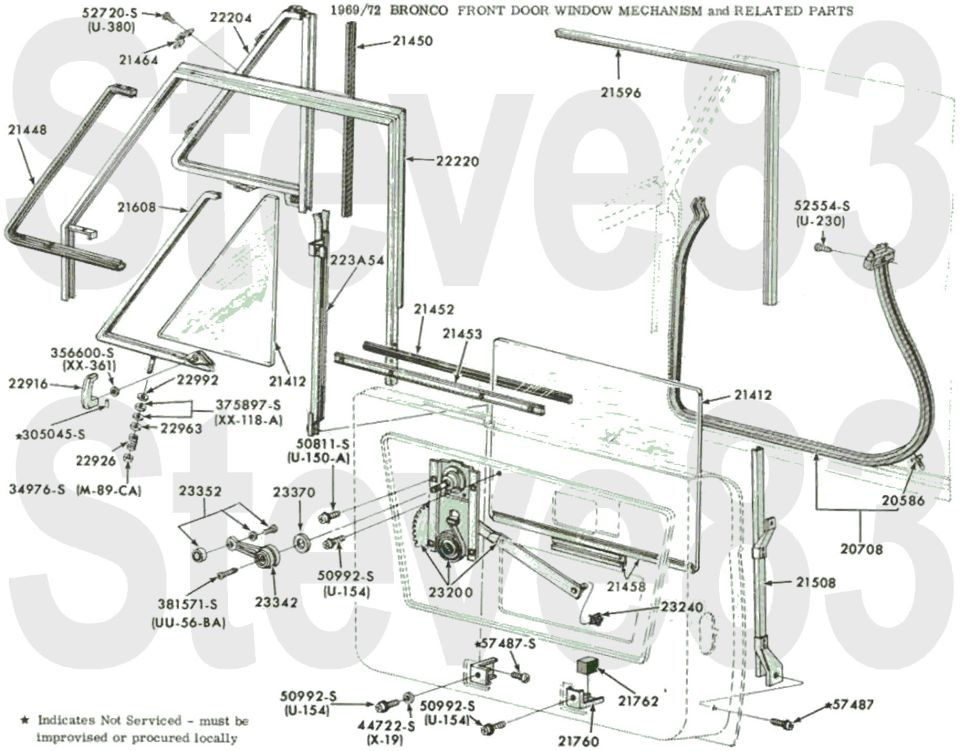

'69-72 Bronco front door window mechanism exploded parts breakdown with part numbers
'69-72 Bronco front door window mechanism exploded parts breakdown with part numbersOriginal file
'69-72 Bronco front door window mechanism exploded parts breakdown with part numbers

Reference · 1966-1977 BroncoAll 140 exploded parts diagrams

'66-72 Bronco frame and body mounting parts with cushion stacks and part numbers '66-72 Bronco Body Type 98 quarter window and related parts exploded view with part numbers '69-72 Bronco door latch, handles and related parts exploded breakdown with part numbers '69-72 Bronco front door window mechanism exploded parts breakdown with part numbers '66-68 Bronco front door window and related parts exploded breakdown with part numbers '68-72 Bronco instrument panel, pad and related parts exploded breakdown with part numbers '66-67 Bronco instrument panel, pad and related parts exploded breakdown with part numbers '66-72 Bronco windshield exploded parts breakdown with frame, glass, seals and part numbers 140exploded parts diagrams1966-1977 Ford Bronco More reference Automatic transmission bushings reference page with A, B, C dimensions and part numbersManual page Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnessesWiring diagram '66-72 Bronco 6-cylinder and V8 exhaust system diagram with part number tablesSchematic Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall lengthBlueprint '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Four Wild Horses Inc. catalog covers with off-road Broncos and customer photo collagesBrochure Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec

'69-72 Door
IF THE IMAGE IS TOO SMALL, click it.

. . .

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams

Owner caption · Photo 105 of 198

Is this accurate? Sign in to help verify it.
