1974 Ford Bronco Windshield Wiper Assembly Exploded Parts Diagram

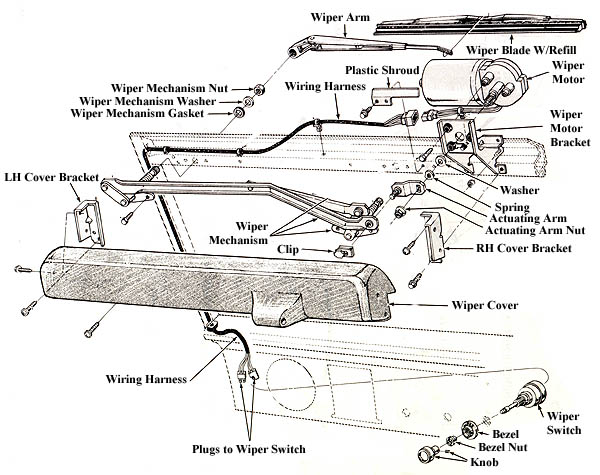

This document is an exploded parts diagram of a windshield wiper assembly, uploaded to the gallery of a 1974 Ford Bronco. The illustration shows every major component of the wiper system in exploded view with labeled callouts. Components identified include the wiper arm, wiper blade with refill, wiper motor and its mounting bracket, a plastic shroud, and the wiring harness routing. Mounting hardware is called out individually: the wiper mechanism nut, washer, and gasket, along with a general washer, spring, actuating arm, and actuating arm nut. The wiper linkage itself is labeled as the wiper mechanism, secured with a clip. The cowl-mounted wiper cover is shown along with its left-hand (LH) and right-hand (RH) cover brackets. On the dashboard side, the diagram shows the wiring harness plugs connecting to the wiper switch, and the switch assembly components: bezel, bezel nut, and knob. A reader can learn the complete assembly order and relative positioning of all wiper system parts, how the linkage connects the motor to the wiper arms, how the cover brackets and cover install over the mechanism, and how the wiper switch mounts through the dash with its bezel hardware. No part numbers, torque specifications, or year/model applicability text appears in the document itself.
