'65-72 170 six and 302 V8 emission reduction breather and PCV sy…

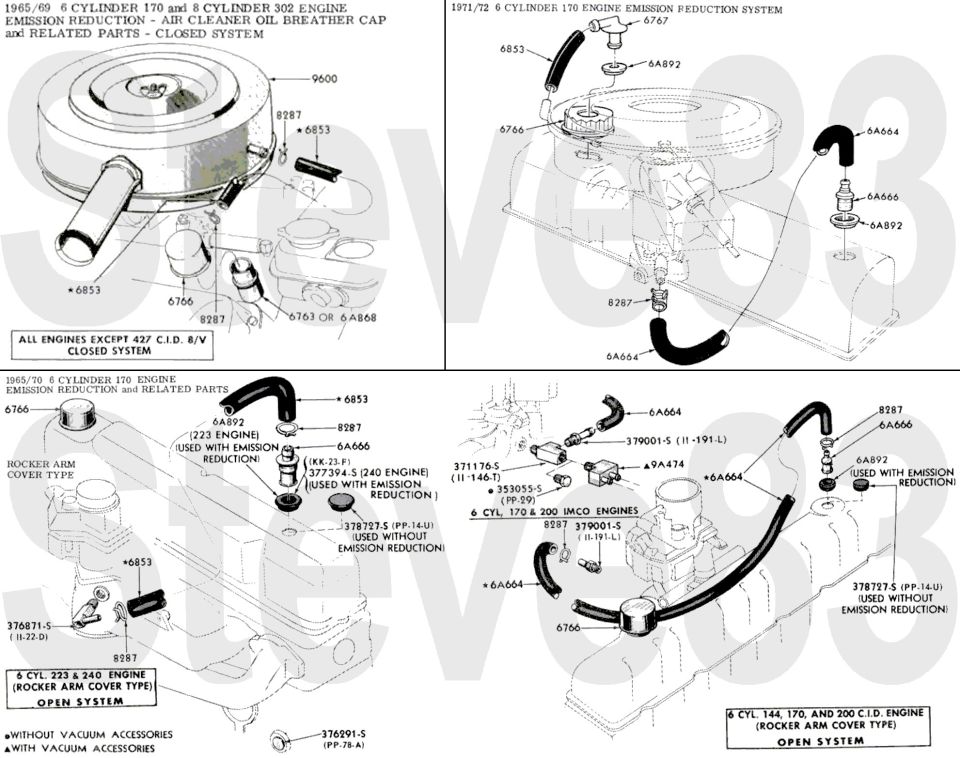

'65-72 170 six and 302 V8 emission reduction breather and PCV system diagrams with part numbers
'65-72 170 six and 302 V8 emission reduction breather and PCV system diagrams with part numbersOriginal file
'65-72 170 six and 302 V8 emission reduction breather and PCV system diagrams with part numbers

Reference · 1966-1977 BroncoAll 140 exploded parts diagrams

'68 Bronco 170 six Thermactor emission control system exploded diagram with part numbers '66 Bronco 170 six Thermactor emission system exploded diagram, intake manifold type '66-67 Bronco 170 six Thermactor emission system exploded diagram, except intake manifold type '65-72 170 six and 302 V8 emission reduction breather and PCV system diagrams with part numbers '66 Bronco six-cylinder air cleaner exploded diagram with Ford part numbers '71-72 Bronco 170 six-cylinder Carter 1V carburetor exploded diagram with part numbers '66-69 Bronco 170 six-cylinder Holley carburetor exploded diagrams with part numbers '65-72 170 six-cylinder block and related parts exploded diagram with Ford part numbers 140exploded parts diagrams1966-1977 Ford Bronco More reference Automatic transmission bushings reference page with A, B, C dimensions and part numbersManual page Early Bronco wiring harness layout with alternator, starter, engine, dash, frame and taillight harnessesWiring diagram '66-72 Bronco 6-cylinder and V8 exhaust system diagram with part number tablesSchematic Chassis dimensions top and side view drawing with 92.00 wheelbase and 152.08 overall lengthBlueprint '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbersVacuum routing Ford Bronco Transfer Case Assembly - Output Shaft Bearings & Shift Rail SealsService procedure Four Wild Horses Inc. catalog covers with off-road Broncos and customer photo collagesBrochure Ford certification label dated 04/73 with GVWR 4900, axle ratings and MPV typeSpec plate 1973-74 Ford Bronco Fuse Box Diagram: Fuse Panel & Circuit Breaker ChartFuse chart Ford Bronco & Econoline Transmission/Transfer Case Torque Specs & Gear RatiosTorque spec

170ci I6 Emissions
IF THE IMAGE IS TOO SMALL, click it.

. . . . . . . . . . .

Part of 1966-1977 Ford Bronco Exploded Parts Diagrams

Owner caption · Photo 135 of 198

Is this accurate? Sign in to help verify it.
