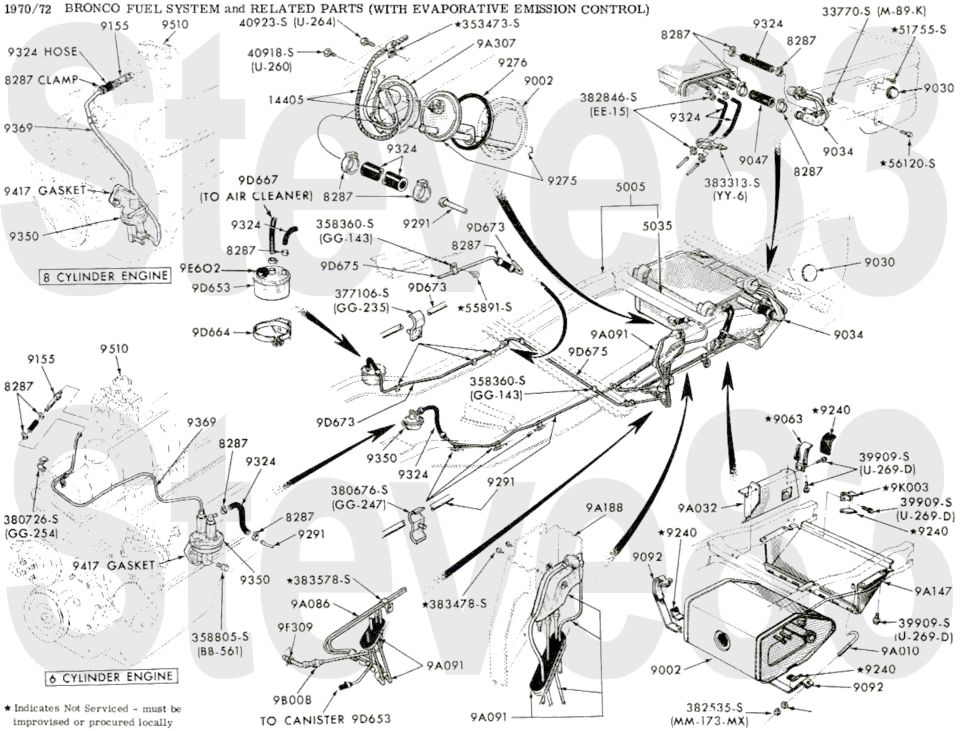

'70-72 Bronco fuel system exploded parts breakdown with evaporat…
Reference · 1966-1977 BroncoAll 140 exploded parts diagrams
'70-76 Rear Fuel Tank
IF THE IMAGE IS TOO SMALL, click it.
.
.
.
'77 is slightly different in that the skidplate alone supports the tank; no strap (#2).
Part of 1966-1977 Ford Bronco Exploded Parts Diagrams
