1965-72 Ford C-4 transmission main control valve body and parkin…

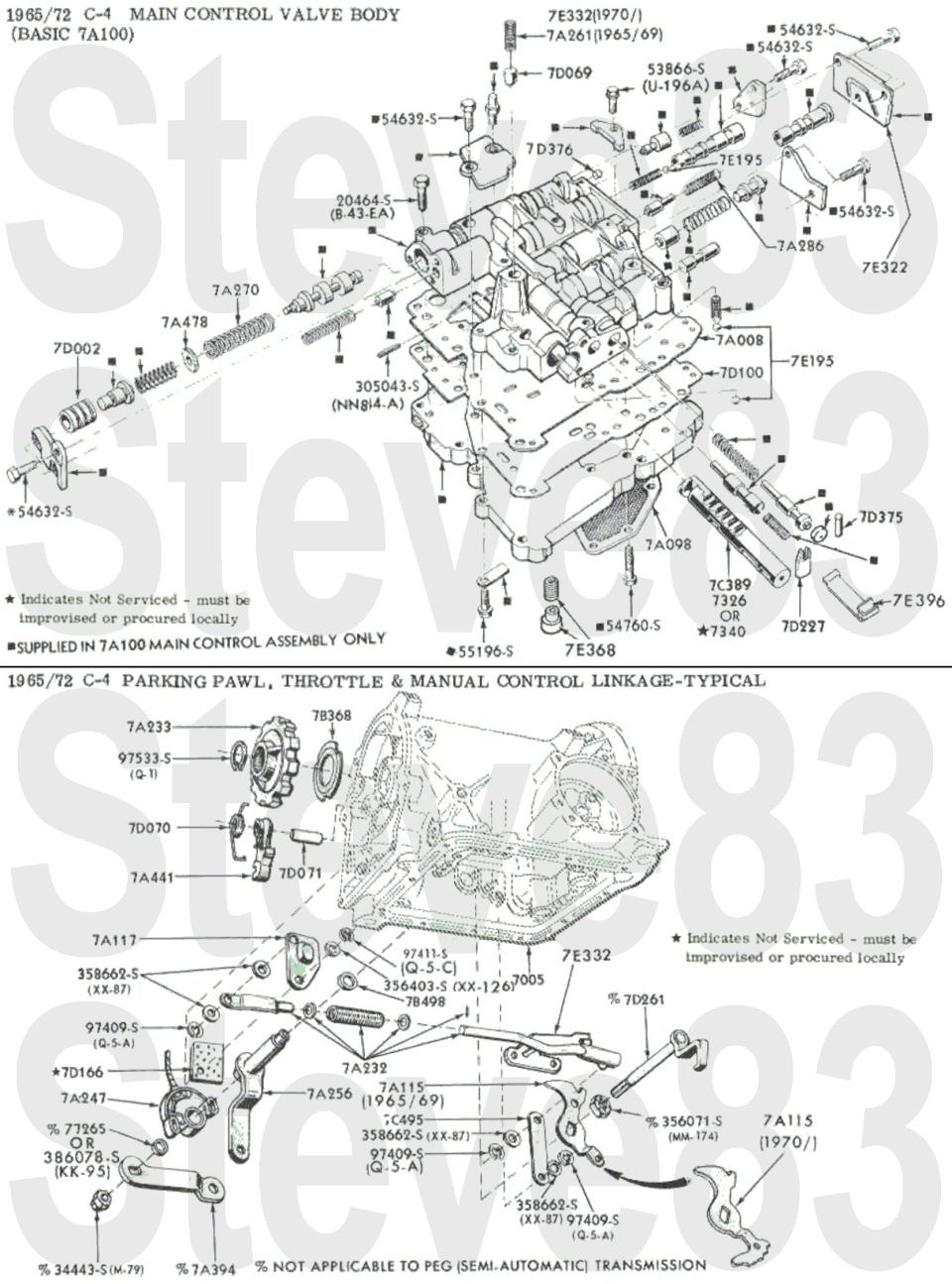

1965-72 Ford C-4 transmission main control valve body and parking pawl/throttle linkage exploded parts diagram
1965-72 Ford C-4 transmission main control valve body and parking pawl/throttle linkage exploded parts diagramOriginal file
1965-72 Ford C-4 transmission main control valve body and parking pawl/throttle linkage exploded parts diagram

Tech DiagramsView all 136

'70 Bronco auxiliary fuel tank exploded parts breakdown without evaporative emission control '70-72 Bronco auxiliary fuel tank exploded parts breakdown with evaporative emission control '66-72 Bronco cooling system exploded parts breakdown for 170 six and 289/302 V8 '69-72 transmission oil cooling system line routing with 7D273 or 7D174 fittings '65-72 C-4 case, converter, extension and pump exploded parts breakdown with part numbers '65-72 C-4 clutches, gears, shafts and rear support exploded parts breakdown '65-72 C-4 front and rear servo and band exploded parts breakdown with part numbers 1965-72 Ford C-4 transmission main control valve body and parking pawl/throttle linkage exploded parts diagram '65-72 C-4 vacuum throttle valve, lines and fittings routing with part numbers Automatic transmission bushings reference page with A, B, C dimensions and part numbers '66-72 C-6 case, converter, extension and pump exploded parts breakdown with part numbers '66-72 C-6 main control valve body exploded parts breakdown with part numbers '66-72 Bronco clutch, clutch pedal and brake pedal exploded parts breakdown '66-71 Bronco 3-speed manual transmission 3.03 type exploded parts breakdown '66-72 Bronco transfer case (7E028) exploded parts breakdown with part numbers '66-72 Bronco transfer case shift linkage exploded parts before and from serial 830001 136photos in this albumView all

'65-72 C4 Transmission Valve Body, Park Pawl, & Throttle Valve
