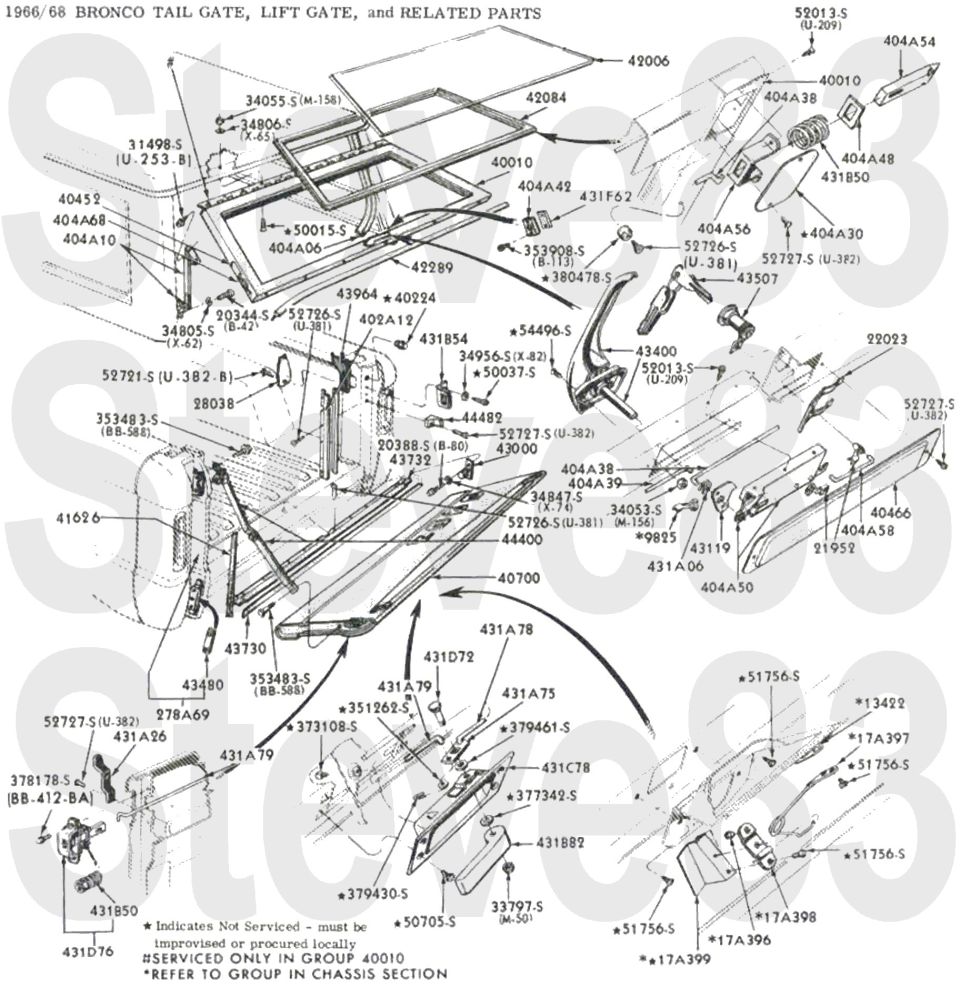

1966-68 Ford Bronco tailgate and lift gate exploded parts diagra…

1966-68 Ford Bronco tailgate and lift gate exploded parts diagram with part numbers

'66-68 Tailgate ('69-77 adds a drain to each top corner of the t/g)
IF THE IMAGE IS TOO SMALL, click it.

. . . . . .
