What fuses power the window circuit in this diagram?

A 15A STOP LP fuse in the I/P junction box, a 30A P/WDW fuse in the engine room fuse & relay box, and two 25A fuses (P/WDW RH and P/WDW LH) downstream of the power window relay.

Does this diagram cover 2-door or 4-door models?

It is labeled 'With Front & Rear Power Windows (4DOOR)', so it covers 4-door models with front and rear power windows.

Where do I find the other power window switches not shown on this page?

The diagram references SD824-2 for the driver power window switch/door lock switch circuit and SD824-3 for the rear power window switch RH and assist power window switch.

What components are shown on sheet SD824-1?

The power window relay, driver power window switch with auto down control and window lock switch, driver power window motor, rear power window switch LH, rear power window motor LH, joint connector, BCM connection, and ground G16.

What connector IDs appear in this diagram?

Visible connector/point IDs include F11 (joint connector), FD01, FD03, D03, D25, D33, D65, M14-2 (BCM), and ground G16.

Home/ Registry/ Hyundai/ Accent/ 2008 Hyundai Accent/ Photo supermotors.net/registry/media/1162977

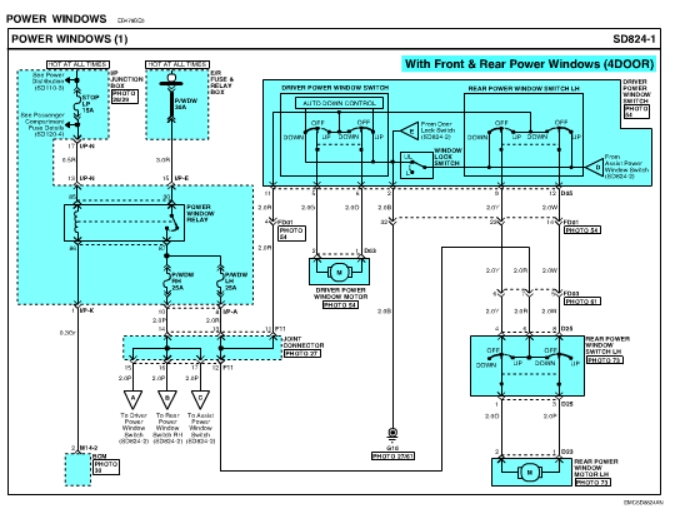

2008 Hyundai Accent Power Window Wiring Diagram SD824-1 (Front & Rear, 4-Door)

Power windows wiring diagram for 4-door with front and rear switches, window relay, motors and wire codes

‹ ›

Wiring diagram of the 4-door power-window circuit showing switches, relay, motors and color-coded wires.

AI caption October 2020 · Photo 47 of 51

This is page 1 of a factory-style power window wiring diagram (sheet SD824-1) titled 'POWER WINDOWS (1)' and marked 'With Front & Rear Power Windows (4DOOR)', uploaded as applying to a 2008 Hyundai Accent. The diagram shows two 'HOT AT ALL TIMES' feeds: a 15A STOP LP fuse in the I/P junction box and a 30A P/WDW fuse in the engine room fuse & relay box. Power passes through the power window relay and two 25A fuses (P/WDW RH and P/WDW LH) to the driver power window switch (with auto down control and a window lock switch), the rear power window switch LH, the driver power window motor, and the rear power window motor LH. Wire gauge/color codes such as 0.5R, 3.0R, 2.0P, 2.6R, 2.6G, 2.6B, 2.0Y, 2.0W, and 0.3Gr are labeled along circuits, along with connector identifiers (D03, D25, D33, D65, F11, FD01, FD03, M14-2, G16) and photo references. Cross-references point to related sheets SD110-3, SD120-4, SD824-2, and SD824-3 for power distribution, fuse details, door lock switch, and the other window switches. A joint connector and BCM connection are also shown.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuses power the window circuit in this diagram?: A 15A STOP LP fuse in the I/P junction box, a 30A P/WDW fuse in the engine room fuse & relay box, and two 25A fuses (P/WDW RH and P/WDW LH) downstream of the power window relay.
Does this diagram cover 2-door or 4-door models?: It is labeled 'With Front & Rear Power Windows (4DOOR)', so it covers 4-door models with front and rear power windows.
Where do I find the other power window switches not shown on this page?: The diagram references SD824-2 for the driver power window switch/door lock switch circuit and SD824-3 for the rear power window switch RH and assist power window switch.
What components are shown on sheet SD824-1?: The power window relay, driver power window switch with auto down control and window lock switch, driver power window motor, rear power window switch LH, rear power window motor LH, joint connector, BCM connection, and ground G16.
What connector IDs appear in this diagram?: Visible connector/point IDs include F11 (joint connector), FD01, FD03, D03, D25, D33, D65, M14-2 (BCM), and ground G16.
