Evaporator Insulation
IF THE IMAGE IS TOO SMALL, click it.

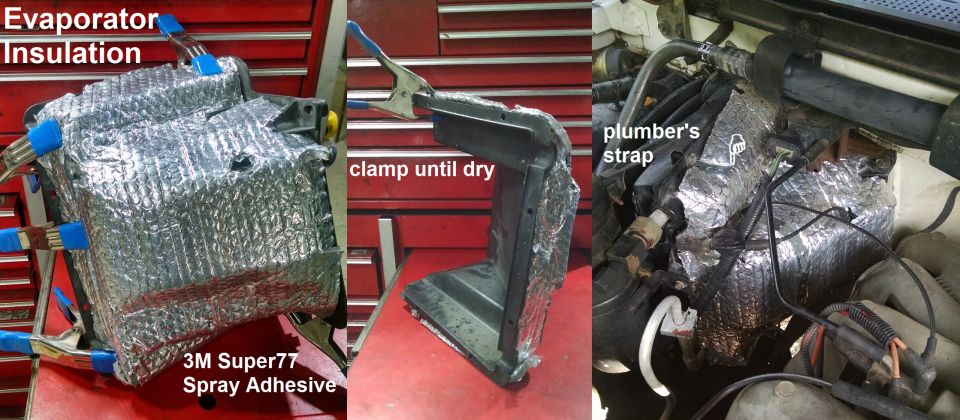

This foil-faced bubble wrap replaces the older foil bag of fiberglass, which always degrades & collects water. But it's necessary to prevent heat damage to the evaporator cover (which includes the HVAC vacuum reservoir), and to keep exhaust heat from counteracting the A/C. It's even more important with headers (which radiate MUCH more heat than manifolds), but this probably won't stand up to headers.
