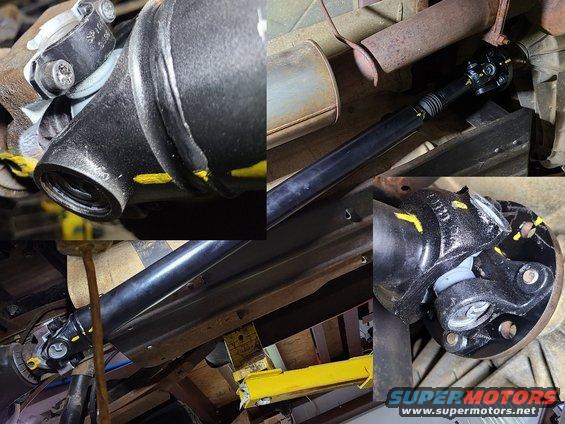

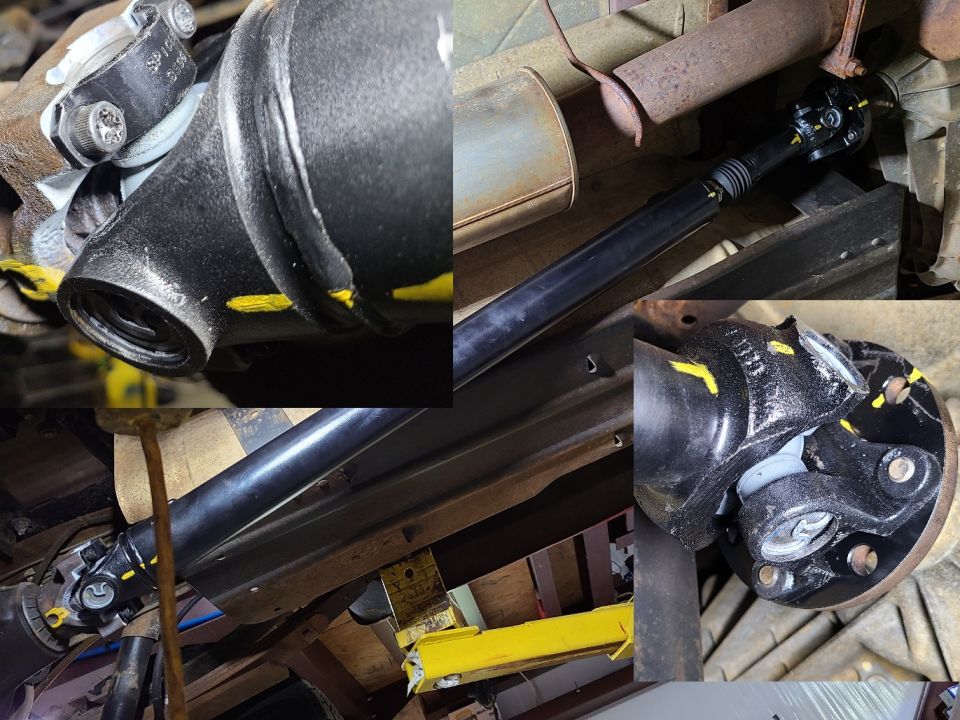

Both driveshafts got sandblasted & painted, and the mounting surfaces at each end got cleaned & painted. The driveshaft alignment marks are both stamped & painted yellow.
IF THE IMAGE IS TOO SMALL, click it.

The rear driveshaft takes Spicer Life series 5-1350X sealed u-joints at both positions. Spicer 3-70-28X Bearing Strap Kit was not needed at this time.

Owner caption · Photo 158 of 195
