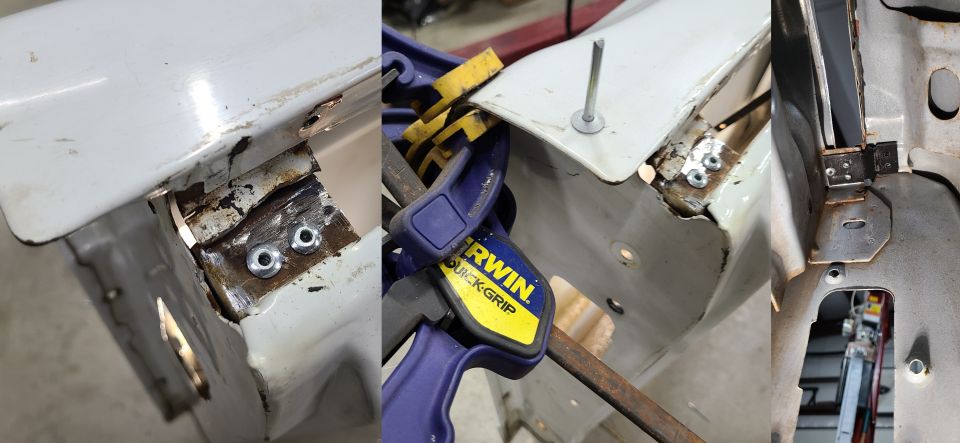

96rnfrc3.jpg Once the reinforcement is secure to the front skin, the exposed rivet is drilled, but NOT set. It & the clamps are removed to spread the skins at the tear, and add JBWeld to the top corner of the outer skin.
IF THE IMAGE IS TOO SMALL, click it.

Continue to the NEXT pic...
96rnfrc3.jpg | Hits: 199 | Posted on: 11/14/21 | View original size (1.27 MB)

Once the reinforcement is secure to the front skin, the exposed rivet is drilled, but NOT set. It & the clamps are removed to spread the skins at the tear, and add JBWeld to the top corner of the outer skin.
IF THE IMAGE IS TOO SMALL, click it.

Continue to the NEXT pic...
