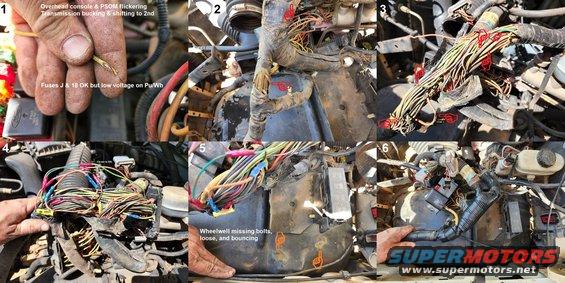

Collage of vehicle wiring and electrical components, with text o…

Harness Wear on a '95 Bronco
IF THE IMAGE IS TOO SMALL, click it.

This truck began exhibiting intermittent electrical problems, like the PSOM flickering off (which caused the transmission to briefly slam into 2nd) and the overhead console. When it became frequent enough, the wiggle test was used to locate & then pinpoint the fault, which was the torn LHF wheelwell vibrating during driving, which had worn into several wires at an exposed location on the engine bay harness. After repairing each wire, the harness was re-wrapped and more split loom was added to protect it. The wheelwell was also re-attached with larger washers.

. .

Owner caption August 2022 · Photo 6127 of 6546
