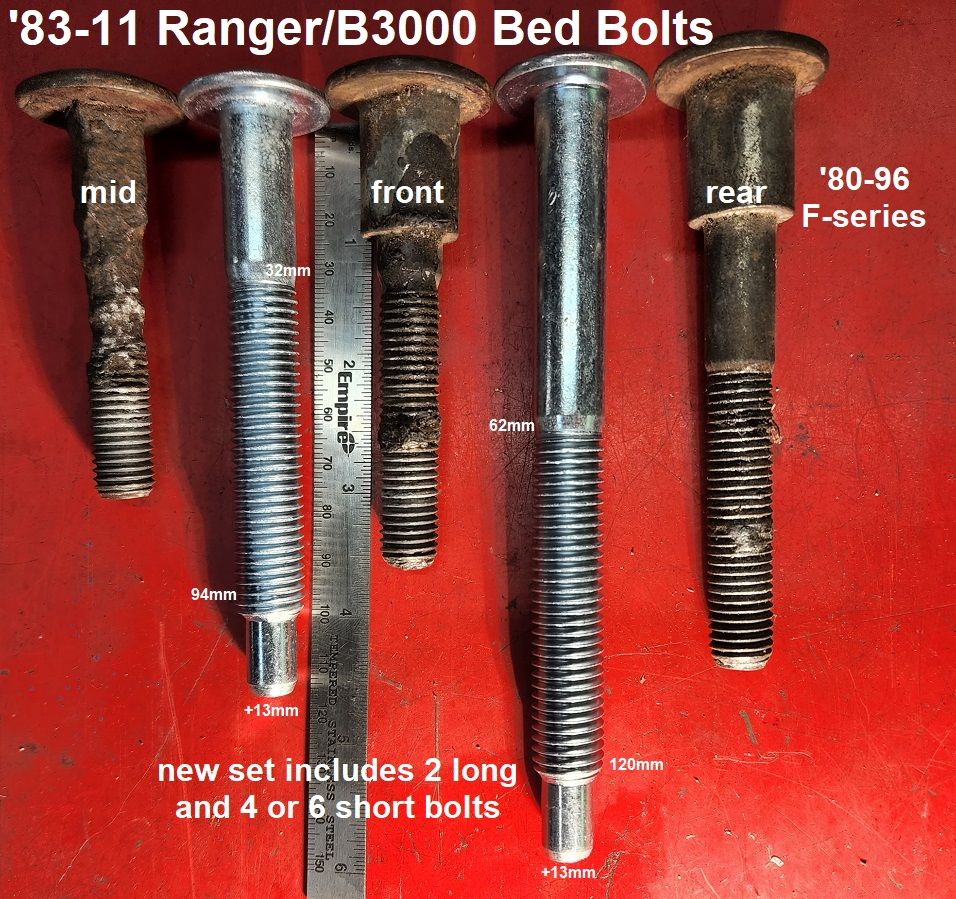

![bedboltcmprr.jpg Ranger Bed Bolts
IF THE IMAGE IS TOO SMALL, click it.
Ranger bed bolts (M14x2.00) can be used to replace obsolete older-style F-series bolts (M12x1.75). The Ranger set includes 2 long bolts for the rear position, & 4 or 6 short bolts for the other positions.
Older bolts do not rotate, so the nuts must be removed from below. New-style bolts rotate, and the U-nuts remain clipped to the frame below.
For bed alignment, see:
