Clutch Fluid Filling
IF THE IMAGE IS TOO SMALL, click it.

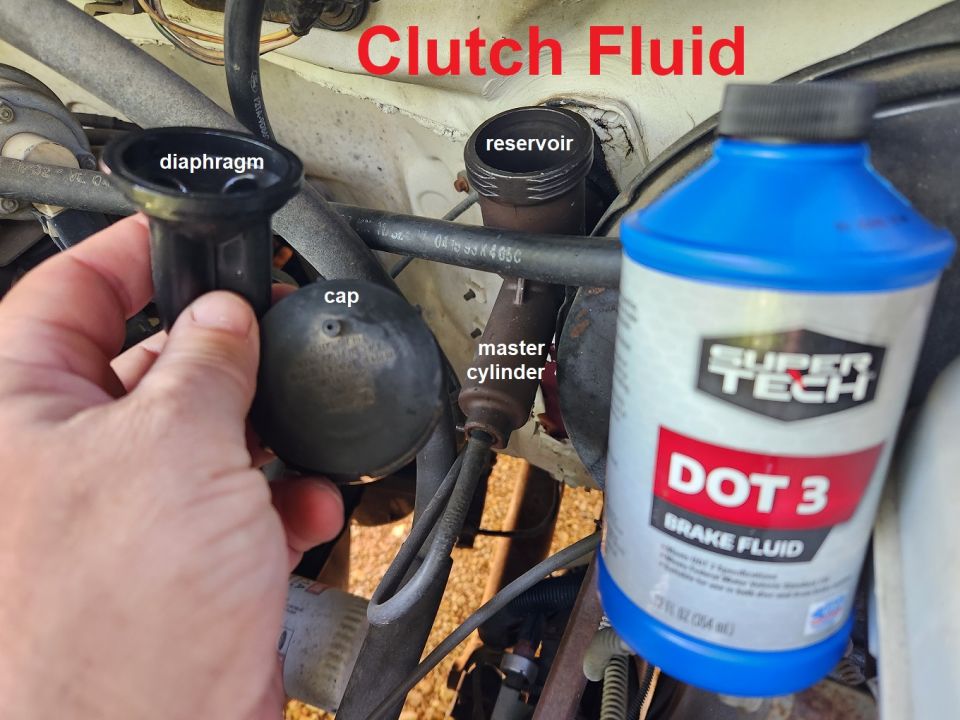

It's not apparent because it's black rubber, but the diaphragm that protects the clutch fluid from the air's humidity must be REMOVED from the master cylinder reservoir before the fluid level can be checked or adjusted. There should never be fluid on top of (inside) the diaphragm.
