Dash Switch Rewire
IF THE IMAGE IS TOO SMALL, click it.

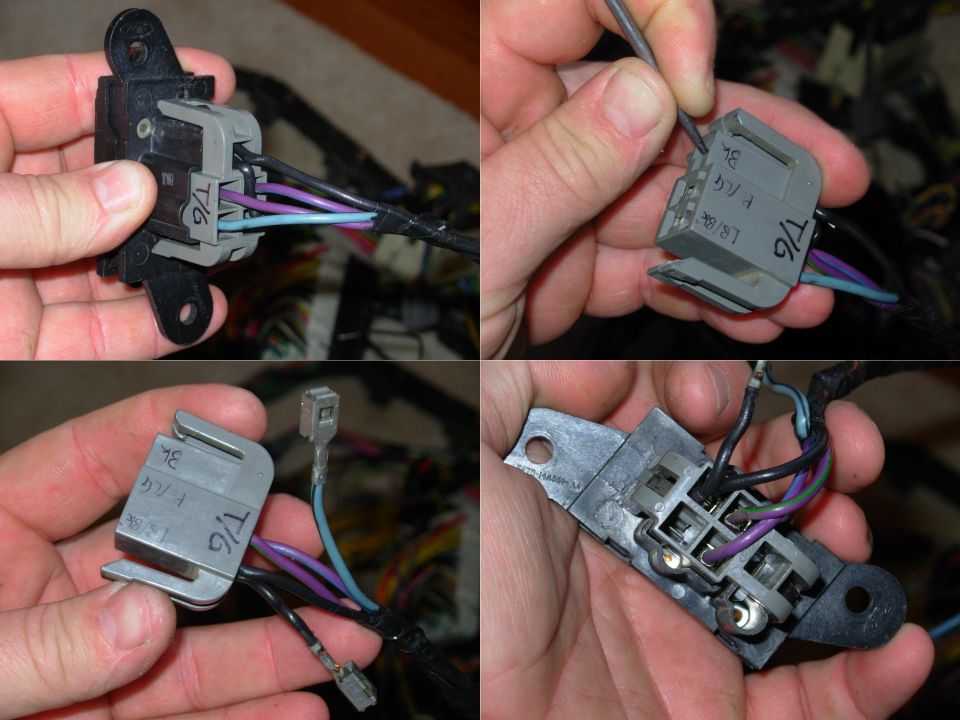

When installing relays in the t/g to unload the switches, the dash switch must be re-pinned as simple NO (normally-open) grounds.
