Torsion Bar '83-96
IF THE IMAGE IS TOO SMALL, click it.

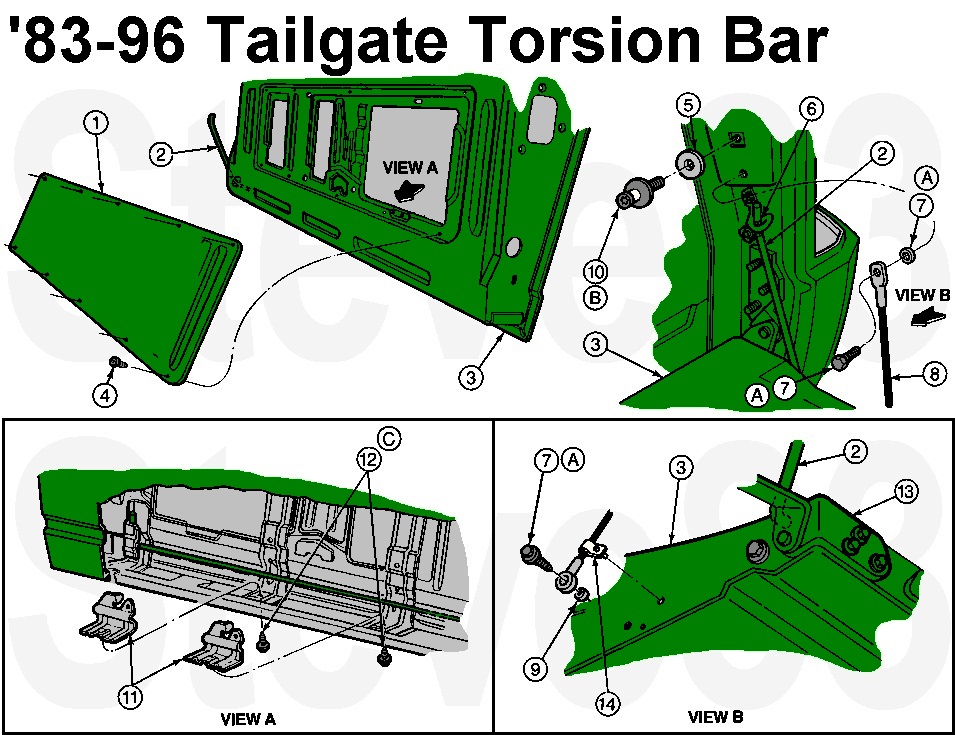

1 - Tailgate Panel Inside Cover 43221
2 - Luggage Compartment Door/Tailgate Hinge Torsion Bar 44890
3 - Tailgate 40709
4 - Screw #2Ph. drive #8x3/4", Tailgate Panel Inside Cover-to-Tailgate 55962-S2
5 - Washer N805584-S
6 - Tailgate Counterbalance Torsion Bar Body Retainer 43050
7 - Shoulder Bolt and Washer, Check Cable-to-Body 391566-S40
8 - Tailgate Check Cable 43052
9 - Washer 383180-S40
10 - Tailgate Upper Latch Striker 431F52
11 - Torsion Bar Bracket 430A32
12 - Screw 7/16" hex 14-20 thread captive fender washer, Torsion Bar Bracket 57472-S40
13 - Tailgate Hinge 43000
14 - Clip, Cable Check 377105-S
A - Tighten to 28-40 N-m (21-30 Lb-Ft)
B - Tighten to 35-50 N-m (26-37 Lb-Ft)
C - Tighten to 8-15 N-m (6-11 Lb-Ft)
Loop bolt 57472S40
