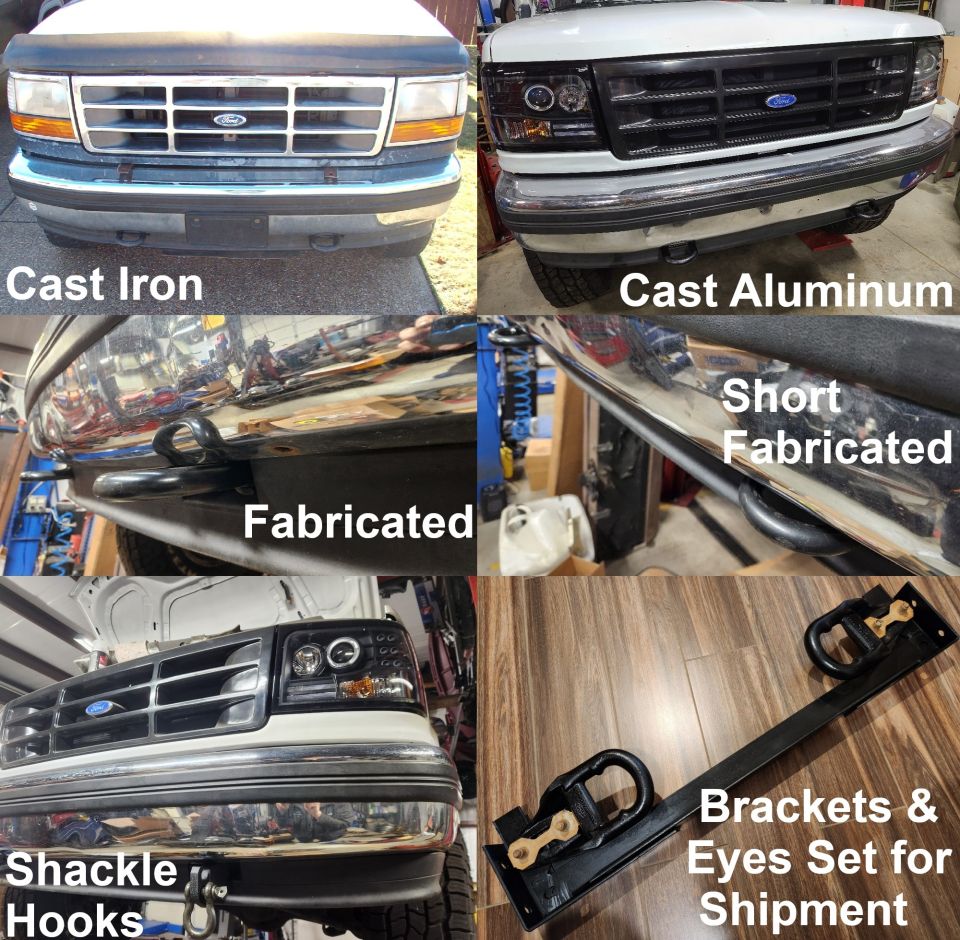

Ford F-Series truck front ends with different bumper materials a…

All these shapes & materials of recovery points fit '92-96 Broncos with this bracket design, although depending on body mount condition, lift, and bumper alignment, some adjustments may be necessary. Especially for the imported shackle mounts, it may be necessary to cut a small section off the back of each bracket to lower the system so the mounts clear the bottom of the bumper. This bracket system won't fit on a leaf-spring front suspension truck. These brackets are not suited to F150s with sway bar tabs welded under the frame, or to coil-sprung F250s/350s without bolted sway bar plates inboard of the frame rails, but they WILL bolt up to all coil '92-96 F-series, and '97 >8500GVWR.



F65A17A954BA - Cast Aluminum (6 lbs/pr) '97-99
F85Z17A954CA/F85A17A954CA - Cast steel (13 lbs/pr) '97-04
6L3Z17A954AA - Fabricated steel (12 lbs/pr) '04-14
FL3Z17A954C/7L1Z17A954AA/FL3Z17A954E/FL3Z17N808A - short steel (7.5 lbs/pr) '07-20
FL3Z17A954D - short chromed steel
FL3Z17N808A - short red steel
M-18954-F15B - short blue steel
Imported hooked 3/4" shackle mounts (10 lbs/pr)

Torque eye bolts to 59 lb-ft (78 Nm)
Torque bumper nuts to 44-59 lb-ft (60-80 Nm)

Brackets shipping dimensions: 33x9x4" @19 lbs (plus tow eyes weight, if included)

Owner caption January 2026 · Photo 6532 of 6546
