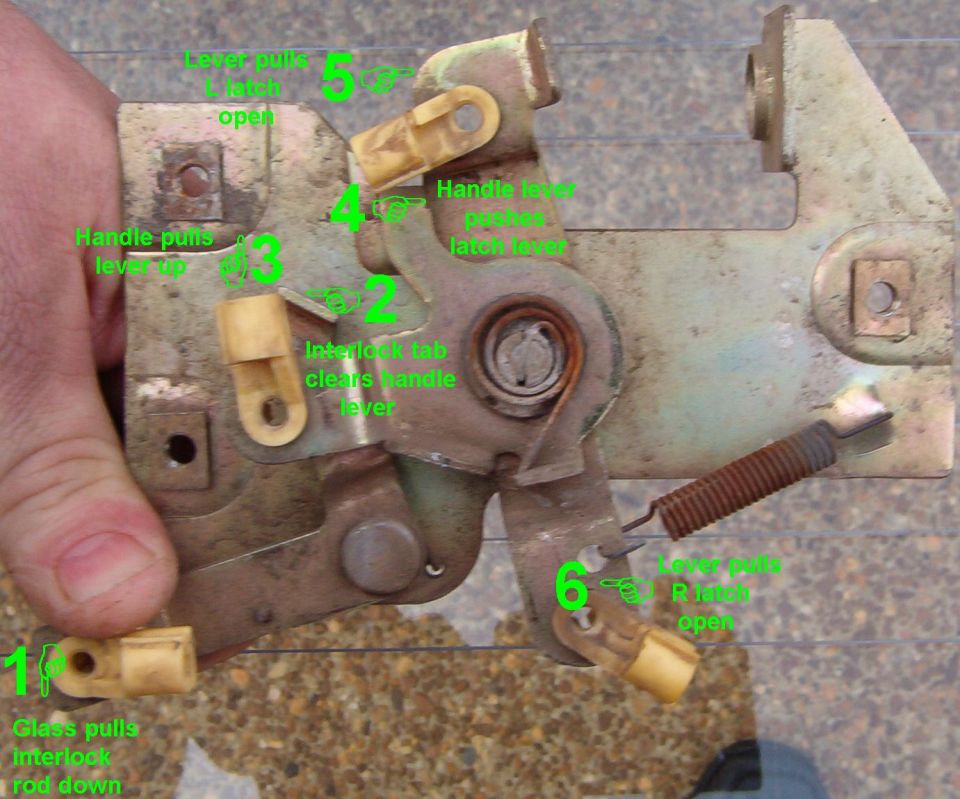

center-interlock.jpg The numbers show the sequence of events for PROPER operation of the inside latch handle.  5 & 6 should be simultaneous, and the long rods can be bent to take up any slack & get the latches to open at the same moment.  But do so only AFTER [url=http://www.fourdoorbronco.com/board/showthread.php?t=5224]aligning the tailgate[/url].
center-interlock.jpg | Hits: 9231 | Posted on: 11/28/04 | View original size (192.08 KB)

The numbers show the sequence of events for PROPER operation of the inside latch handle. 5 & 6 should be simultaneous, and the long rods can be bent to take up any slack & get the latches to open at the same moment. But do so only AFTER aligning the tailgate.
