Service manual page on parking brake and tire condition checks w…

Service manual page on parking brake and tire condition checks with diagrams.
Service manual page on parking brake and tire condition checks with diagrams.Original file
Service manual page on parking brake and tire condition checks with diagrams.

87 Service ManualView all 403

Nissan automatic transaxle fluid level and condition check MA-19 with hot and cold dipstick ranges Nissan front axle and front suspension inspection MA-20 strut ball joint and fastener checks Service manual page with chassis maintenance diagrams and alignment specs. Service manual page on wheel alignment, toe-in and turning angle specs with diagrams. Nissan rear axle suspension and brake fluid level inspection MA-21 maintenance page Service manual page on brake maintenance with line diagrams and specs Service manual page on drum brake and brake pedal checks with diagrams and specs Service manual page on parking brake and tire condition checks with diagrams. Service manual page on tire wear conditions and radial tire rotation diagram, page MA-27. Service manual page on tire replacement with wheel nut diagrams Service manual page on wheel nut, tire repair and wheel inspection with diagrams. Service manual page on wheel balancing, spare tire, and steering gear inspection. Chassis and body maintenance page on lubricating latches and checking seat belts Nissan engine maintenance SDS MA-32 valve clearance ignition timing and tightening torque specs Service manual page MA-33 with chassis and body maintenance specifications tables Service manual contents page for Engine Mechanical Section EM 403photos in this albumView all

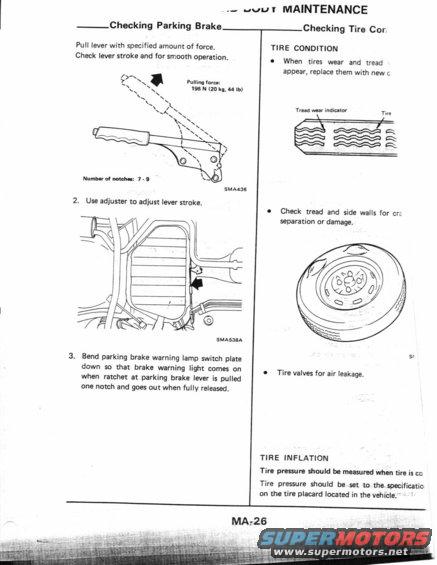

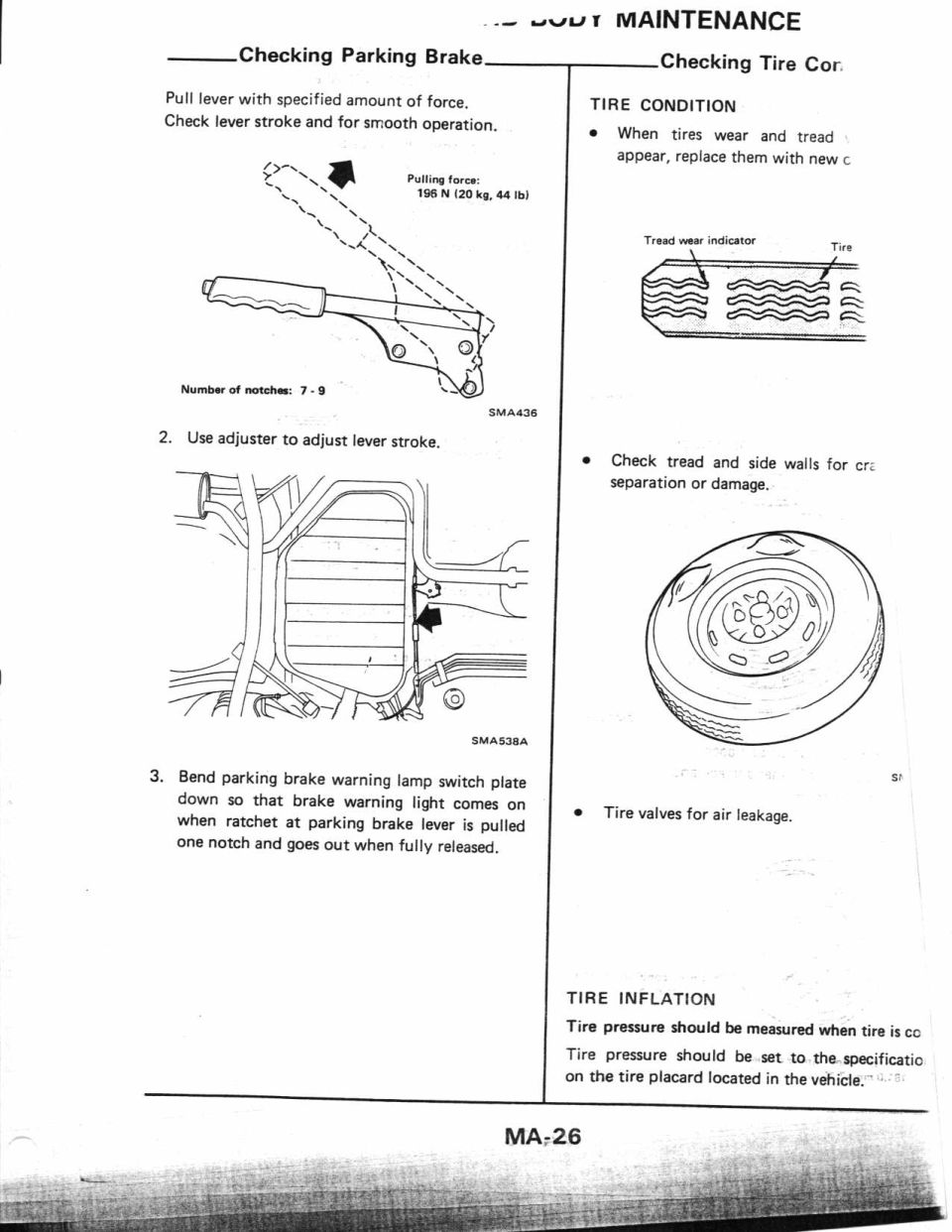

Scanned service manual page titled 'Body Maintenance' covering Checking Parking Brake and Checking Tire Condition, with line diagrams of a parking brake lever, tread wear indicator, and a tire/wheel. Text notes pulling force of 196 N (20 kg, 44 lb) and 7-9 notches, plus tire inflation instructions.

AI caption · Photo 46 of 412

,_- uuul MAINTENANCE Checking Parking Brake Pull lever with specified amount of force. Check lever stroke and for smooth operation. /) z x ' t \ Pulling raw-z I56 N120 kg, 4 lb) \ Numb-r M mull-I: 7 - 9 SMA415 2. Use adjuster to adjust lever strokel SMASJEA 3. Bend parking brake warning lamp switch plate down so that brake warning light comes on when ratchet at parking brake lever is pulled one notch and goes out when fully released. Checking Tire Cor. TIRE CONDITION . when tires wear and tread appear, replace them with new c - Check tread and side walls for crz separation or damage. 0 Tire valves for air leakage. TIRE INFLATION Tire pressure should be measured when tire is co Tire pressure should be set to the specificatio on the tire placard located in the vehicle. MA,-26
