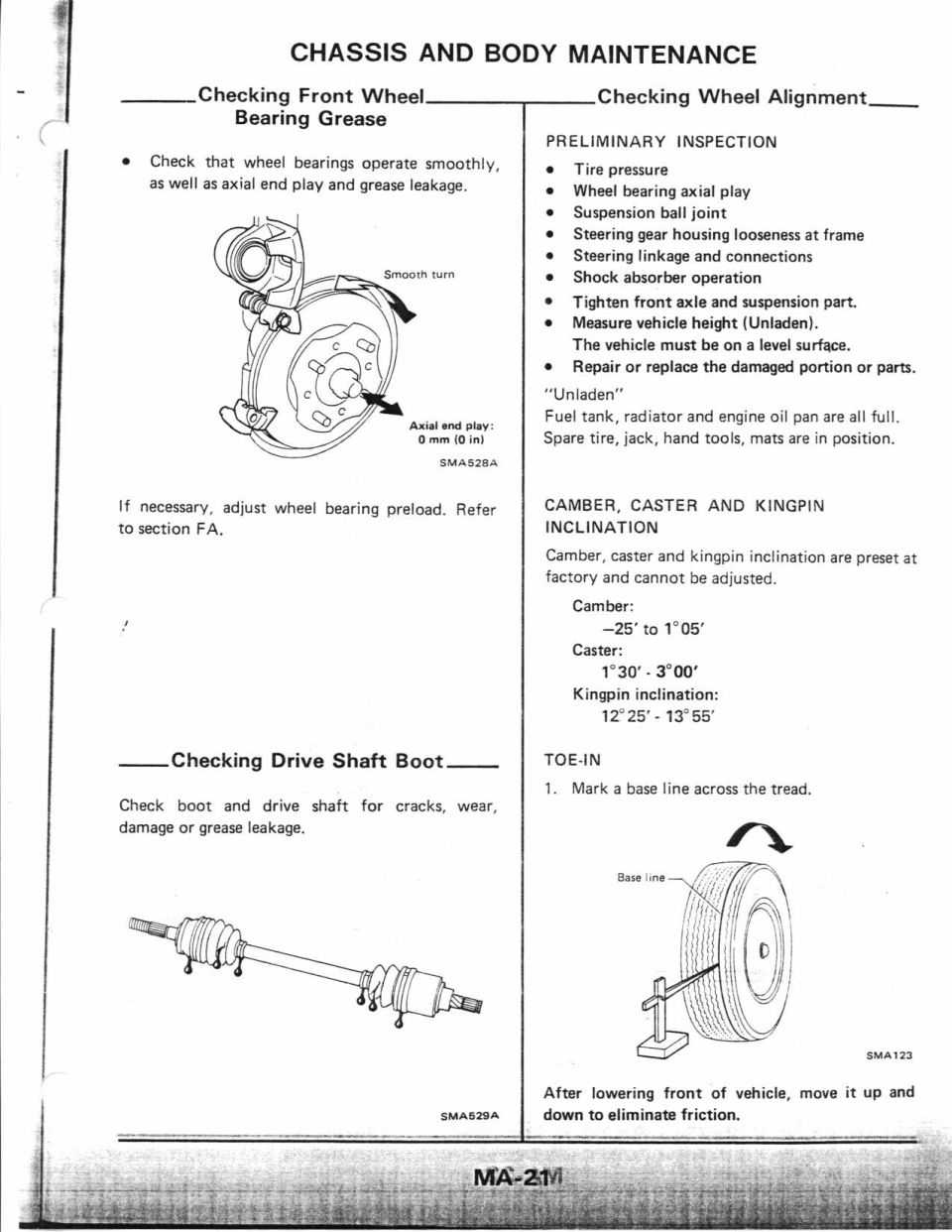

Service manual page with chassis maintenance diagrams and alignm…

CHASSIS AND BODY MAINTENANCE _____Checking Front Wheel Bearing Grease 0 Check that wheel bearings operate smoothly, as well as axial and play and grease leakage. Smooth [urn Axial um play: 0 mm (o in) sMAszeA if necessary, adjust wheel bearing preload. Refer to section FA. _Checking Drive Shaft Boot Check boot and drive shaft for cracks, wear, damage or grease leakage. SMAezsA _.Checking Wheel Alignment PRELIMINARY INSPECTION Tire pressure Wheel bearing axial play Suspension ball joint Steering gear housing looseness at frame Steering linkage and connections Shock absorber operation Tighten front axle and suspension part. Measure vehicle height (Unladen). The vehicle must he on a level surface. 0 Repair or replace the damaged portion or parts. "Unladen" Fuel tank, radiator and engine oil pan are all full. Spare tire, jack, hand tools, mats are in position. CAMBER, CASTER AND KINGPIN INCLINATION Camber, caster and kingpin inclination are preset at factory and cannot be adjusted. Camber: -25' to 105' Caster: 130' - 300' Kingpin inclination: 1225' - 13 55' TOE-lN 1. Mark a base line across the tread. sMArza After lowering front of vehicle, move it up and down to eliminate friction.
