What are the hot valve clearance specifications?

Intake 0.25 mm (0.010 in) and exhaust 0.30 mm (0.012 in), measured hot.

What spark plugs and gap are specified (Canada)?

Standard BPR5ES, hot BPR4ES, cold BPR6ES, with a gap of 0.8 - 0.9 mm (0.031 - 0.035 in).

What is the ignition timing and idle speed?

Manual transmission: 2±2° A.T.D.C. at 750±50 rpm. Automatic transmission (in "D"): 2±2° B.T.D.C. at 700±50 rpm. Idle CO is 2.0±1.0%.

What is the torque for the oil pan drain plug and spark plugs?

Oil pan drain plug: 35 - 47 N·m (3.6 - 4.8 kg-m, 26 - 35 ft-lb). Spark plugs: 20 - 29 N·m (2.0 - 3.0 kg-m, 14 - 22 ft-lb).

What is the crank pulley bolt torque?

69 - 88 N·m (7.0 - 9.0 kg-m, 51 - 65 ft-lb).

What are the cooling system pressure specs?

Radiator cap relief pressure 88 kPa (0.9 kg/cm², 13 psi); cooling system leakage testing pressure 157 kPa (1.6 kg/cm², 23 psi).

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/194419

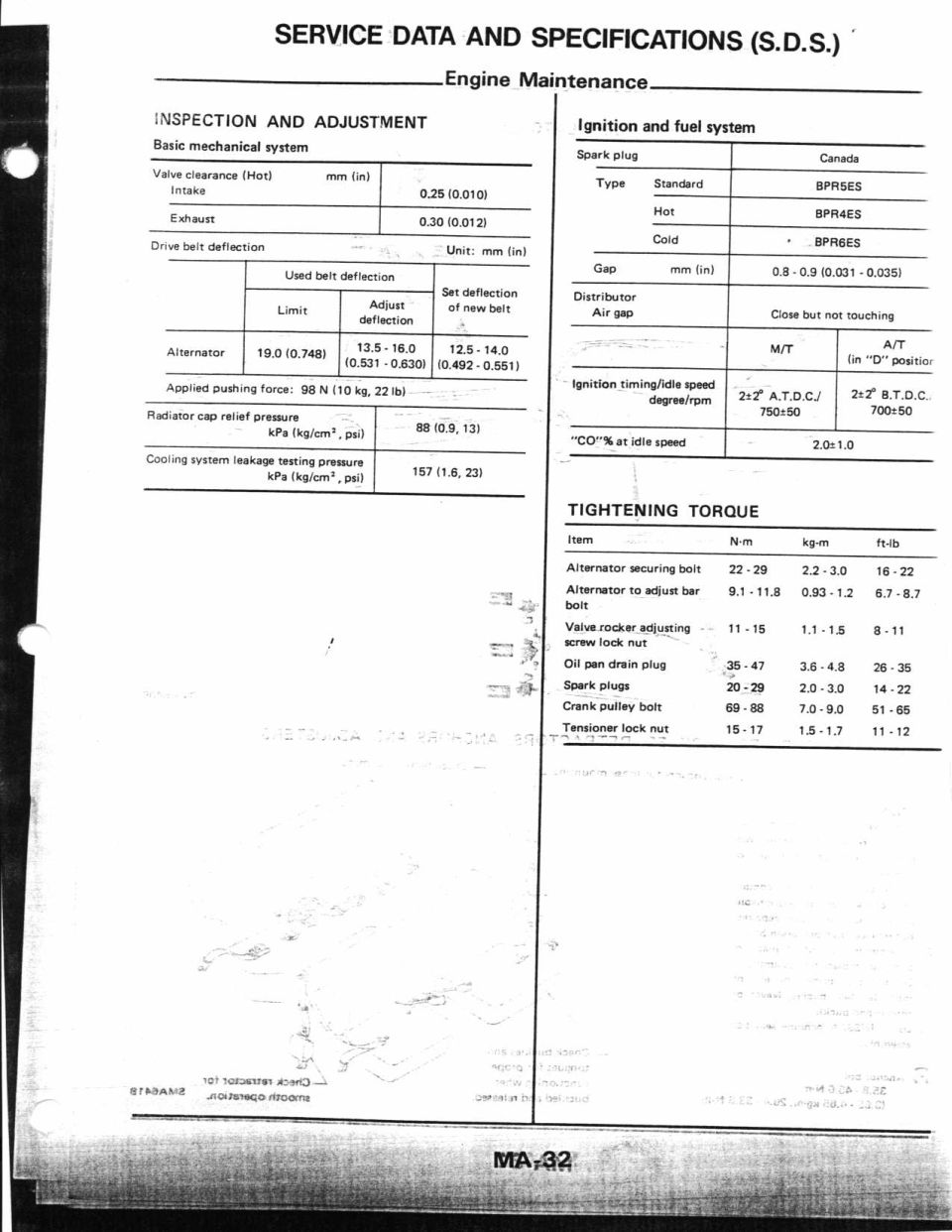

Nissan Micra Engine Maintenance Specs & Torque Table (SDS Page MA-32)

Nissan engine maintenance SDS MA-32 valve clearance ignition timing and tightening torque specs

‹ ›

Service Data and Specifications page: valve clearance (intake 0.25 mm, exhaust 0.30 mm), ignition timing 22 ATDC/21 BTDC, idle 750 rpm, and engine-maintenance tightening torques.

AI caption April 2005 · Photo 52 of 412

This document is page MA-32, "Service Data and Specifications (S.D.S.) — Engine Maintenance," from a Nissan factory service manual, uploaded to the gallery of a 1990 Nissan Micra. It provides inspection and adjustment specifications for the basic mechanical system: hot valve clearances (intake 0.25 mm / 0.010 in; exhaust 0.30 mm / 0.012 in), alternator drive belt deflection limits for used and new belts with a 98 N (10 kg, 22 lb) pushing force, radiator cap relief pressure (88 kPa / 0.9 kg/cm² / 13 psi), and cooling system leakage test pressure (157 kPa / 1.6 kg/cm² / 23 psi). Ignition and fuel system data for Canada includes spark plug types (standard BPR5ES, hot BPR4ES, cold BPR6ES), plug gap 0.8-0.9 mm, distributor air gap "close but not touching," ignition timing/idle speed for manual (2±2° ATDC / 750±50 rpm) and automatic (2±2° BTDC / 700±50 rpm in "D"), and idle CO of 2.0±1.0%. A tightening torque table lists values in N·m, kg-m, and ft-lb for the alternator bolts, valve rocker lock nut, oil pan drain plug, spark plugs, crank pulley bolt, and tensioner lock nut.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the hot valve clearance specifications?: Intake 0.25 mm (0.010 in) and exhaust 0.30 mm (0.012 in), measured hot.
What spark plugs and gap are specified (Canada)?: Standard BPR5ES, hot BPR4ES, cold BPR6ES, with a gap of 0.8 - 0.9 mm (0.031 - 0.035 in).
What is the ignition timing and idle speed?: Manual transmission: 2±2° A.T.D.C. at 750±50 rpm. Automatic transmission (in "D"): 2±2° B.T.D.C. at 700±50 rpm. Idle CO is 2.0±1.0%.
What is the torque for the oil pan drain plug and spark plugs?: Oil pan drain plug: 35 - 47 N·m (3.6 - 4.8 kg-m, 26 - 35 ft-lb). Spark plugs: 20 - 29 N·m (2.0 - 3.0 kg-m, 14 - 22 ft-lb).
What is the crank pulley bolt torque?: 69 - 88 N·m (7.0 - 9.0 kg-m, 51 - 65 ft-lb).
What are the cooling system pressure specs?: Radiator cap relief pressure 88 kPa (0.9 kg/cm², 13 psi); cooling system leakage testing pressure 157 kPa (1.6 kg/cm², 23 psi).
