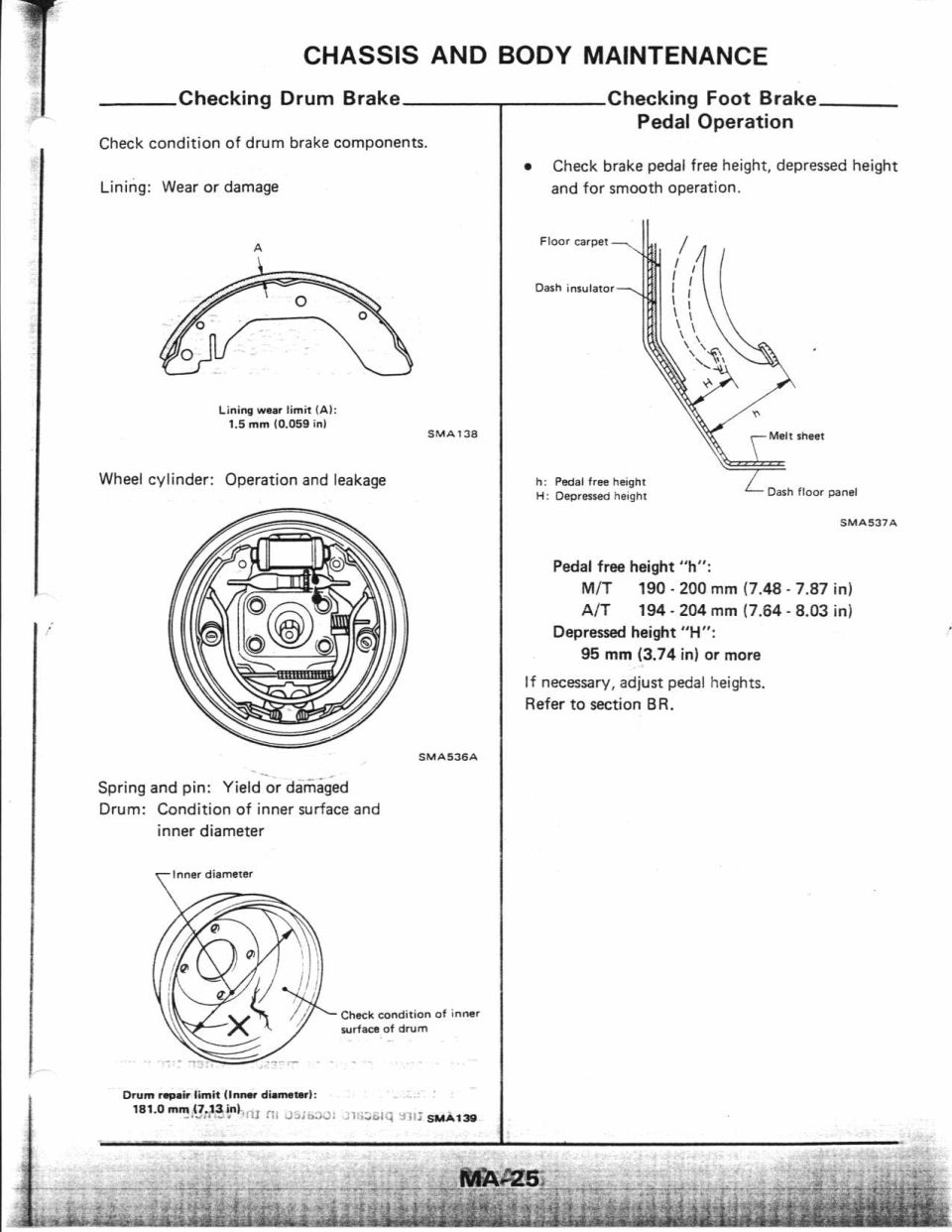

Service manual page on drum brake and brake pedal checks with di…

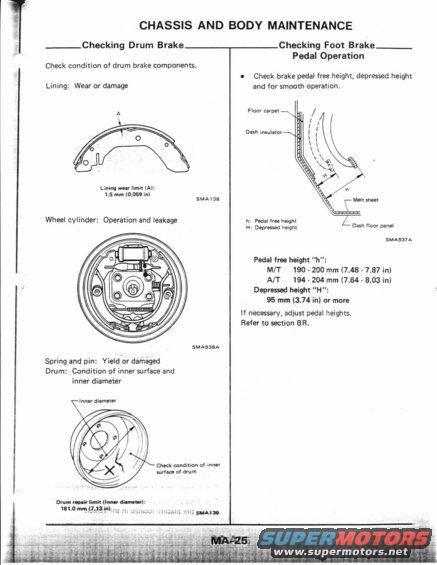

CHASSIS AND BODY MAINTENANCE __Checking Drum Brake Check condition of drum brake components. Lining: Wear or damage Lining ww unit (A): 15 mm mass in) SMAI as Wheel cylinder: Operation and leakage sMAsasA Spring and pin: Yieldwor damaged Drum: Condition of inner surface and inner diameter Inner dimmer Chick wndilln of Inner writs! of drum Checking Foot Brake Pedal Operation Check brake pedal free height, depressed height and for smooth operation. Flour carpet Dash insulator Ma|t Shlll n: Pedal free height H: Deovessed helghl Dash "our panel sMA537A Pedal free height h": M/T 190 - 200 mm (7.48 - 7.87 in) A/T 194 - 204 mm (7.64 - 8.03 in) Depressed height "H: 95 mm (3.74 in) or more If necessary, adjust pedal heights. Hefer to section ER.
